EBUNGE Partition Solution

Hotel Sliding Partition Walls Design Room Divider Removable Portable Partition

Explore Hotel Sliding Partition Walls Design Room Divider Removable Portable Partition for overseas B2B partition projects. Share the application, opening dimensions, quantity and preferred finish with EBUNGE for project review.

Request A Quote

Product Description

Hotel sliding partition walls design room divider idea removable portable partition for hotel

Description:

Our sliding partition walls system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system.

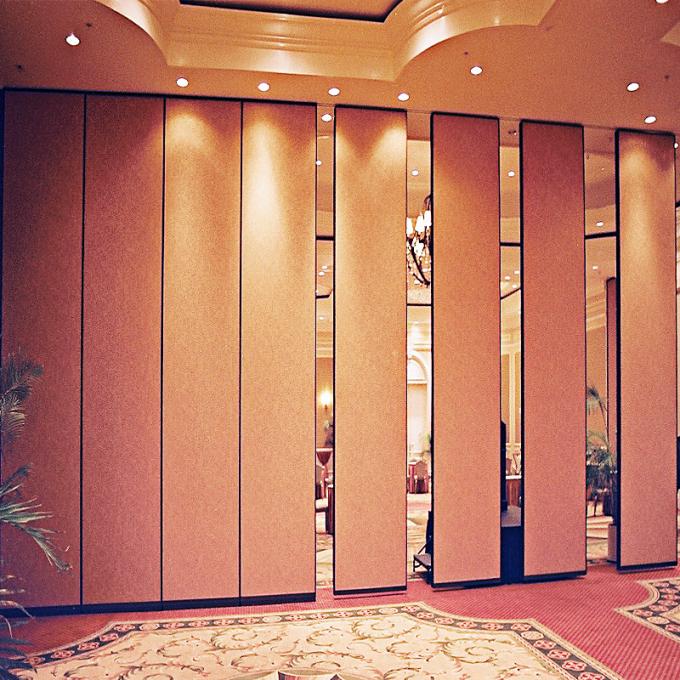

Hotel Sliding Partition Walls Design Room Divider Removable Portable Partition 0

Technical parameters:

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

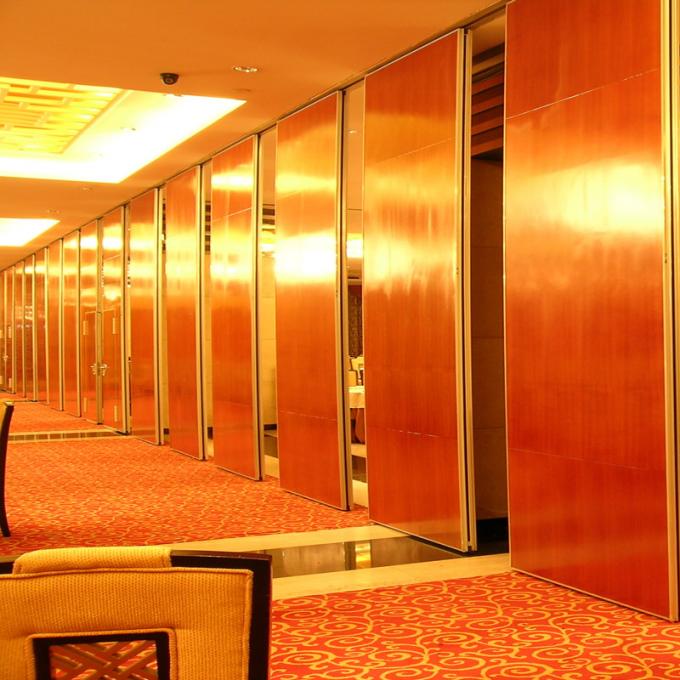

Hotel Sliding Partition Walls Design Room Divider Removable Portable Partition 1

Specification:

Sliding partition walls are made up of sliding panels which interlock to form a partition wall. This enables you to set up large installations with the minimum amount of effort. When in position the panels have the appearance of a permanent partition wall.

We are in the business of movable wall servicing, movable wall maintenance, movable wall repair and suppliers of acoustic movable walls and sliding folding partitions across England and Wales. We have the knowledge and expertise to service and repair any type of movable walls and folding partitions.

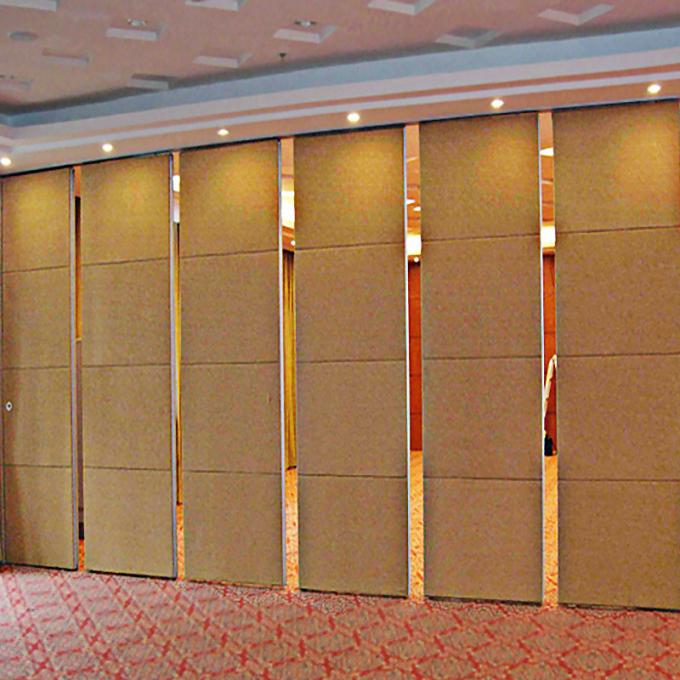

Hotel Sliding Partition Walls Design Room Divider Removable Portable Partition 2

Operation:
When the operable seals are retracted, panels glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide).
Telescopic end panels enable the wall to be locked off to complete the acoustic seal. The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.



Specifications

Product NameSliding Partition Walls
MaterialAluminium And Mdf Board
HeightLess Then 6 M
Width500-1200 Mm
Thickness85mm Aluminum Frame
FunctionSpace Dividing
FinishMelamine, Fabric, Leather, MDF Bare Finish
Highlightsliding folding partition , sound proof sliding partitions

Product Details

Place of OriginGuangzhou,China
Brand NameEBUNGE
Model NumberSeries 65 mm sliding partition walls
Packaging DetailsCarton package, MDF batten on four section sides ,foam board on both front face.
Project Support

Send Your Project Details

Share the application, opening dimensions, quantity and preferred finish. The EBUNGE team will review the information before preparing a project-specific response.

  • Current product is recorded automatically
  • Drawings and reference files are supported
  • Project requirements remain editable before submission
