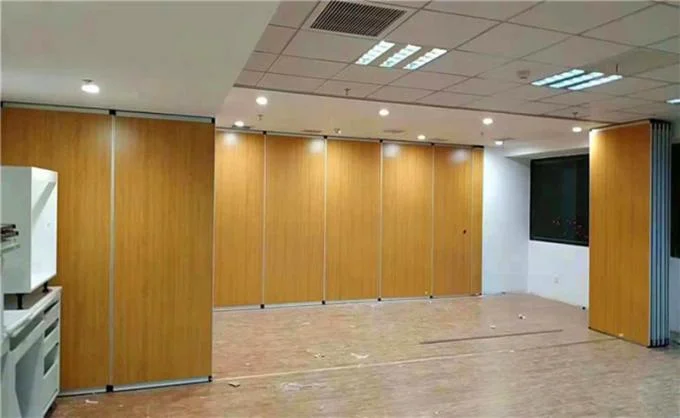

Hotel Restaurant Sliding Acoustic Partition Wall / Hanging Soundproof Room Dividers Partitions

Hanging Dividers Partition System Hotel Restaurant Sound Proof Sliding Acoustic Partition Walls

Acoustic partition walls technical information



Acoustic partition walls features

1. Top hung with no floor track required.
2. High acoustic ratings up to 50dB available.
3. Retractable acoustic seals at top and bottom of each acoustic partition walls panel operated either by a quick release handle.
4. Single or twin point suspension for central or offset stacking options.
5. Variable track arrangements.
6. Junction panels enable corner, three or four way abutments.
7. Panel finishes include Melamine Laminate, Veneer, Vinyl, Magnetic Dry Wipe Whiteboard or Painted, etc.
8. Optional inset pass doors, fully glazed panels and vision panels.
9. Closure panel fitted with face operated telescopic “nose”.


Acoustic partition walls FAQ

1. Do your acoustic partition walls systems come in standard sizes?

No, all of our acoustic partition walls systems are customized depending on your exact requirements.


2. Do you provide acoustic partition wall design services?

In our technical team, we have experienced CAD technicians with many years experience of acoustic partition walls layout design.

3. What level of acoustics do I need?

65 type – Max height 3.5 m,soundproof 38-43 dB.
85 type – Max height 5.5 m,soundproof 43-53 dB.
100 type – Max height 7 m, soundproof 43-58 dB.
125 type – Max height 17 m, soundproof 48-58 dB.

4. Are you the manufacturer of acoustic partition walls?

We are one of the very few manufacturers of acoustic partition walls in China, which offers many advantages in a dynamic and competitive market. Recent investments in new manufacturing equipments have enabled us to provide market leading advantages such as:
We do not have to rely on a potentially unreliable supply chain.
We can offer the most competitive prices on the market.
We can be your operable wall supplier Philippines, and any other country.
All operable walls are customized to suit for your project.

5. What surface treatments are available?

Melamine, Laminates(MDF), Wood Vaneer, Paint and Various Wallpaper. However, it is also possible to accommodate a more professional surface treatment such as sound absorption panel and perforated board.

6. How do I support acoustic partition walls in a building?

The acoustic partition wall is composed of a plurality of individual panels supported by an overhead track system. Due to the lack of floor support or rail, the overhead track supports the full loading of the acoustic partition wall.
This is usually done by using pre-fabricated brackets which are secured to the structure at a pre-calculated interval according to the weight of the acoustic partition walls. The most common materials commonly used in overhead structures are steel or iron. Although we can advise on the loading density of the acoustic partition walls and the weight of brackets used, the structural engineer of the scheme has a responsibility to determine whether the fixed structure is sufficient.
