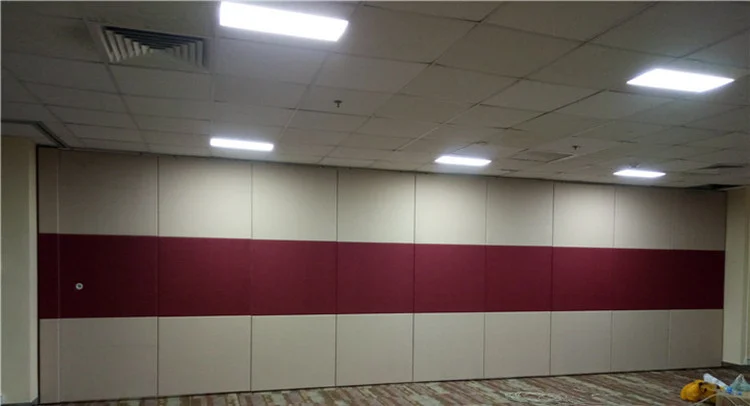

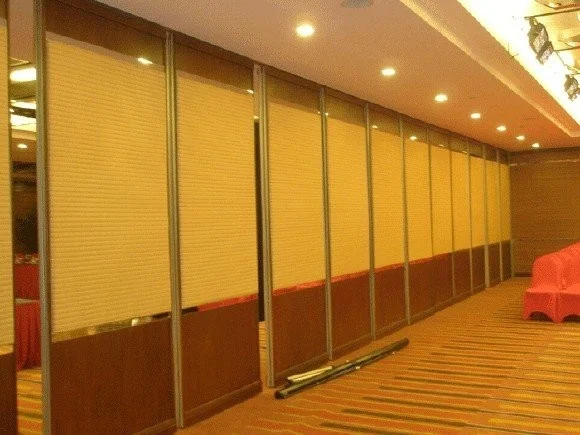

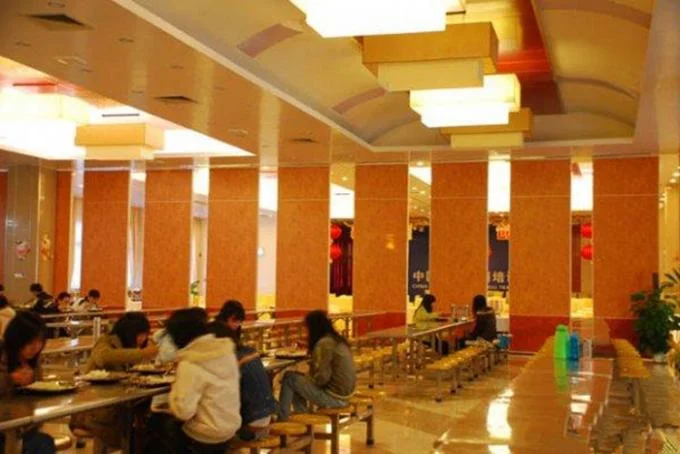

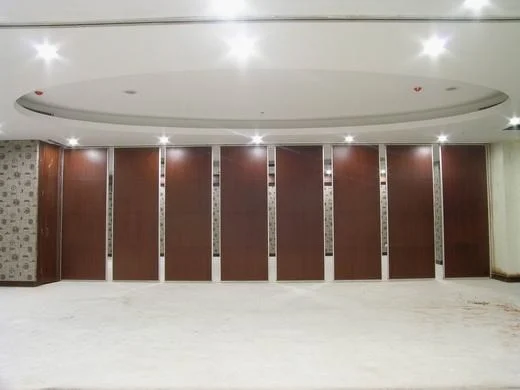

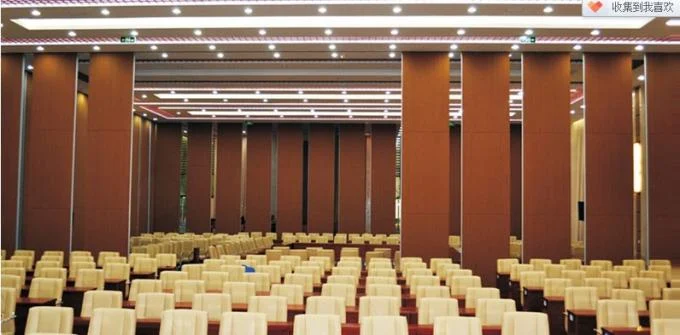

Hotel Banquet Hall Acoustic Movable Walls Floor To Ceiling Track Aluminium Wheel

Floor to Ceiling Track Aluminium Wheel Soundproof Material Hotel Acoustic Operable Partition Wall

Specification:

Bunge movable partition walls is made of high quality anodized aluminum frame with environmentally composite materials.The panels move on a ceiling track with no requirement of floor guides or rails,and they have a standard thickness of 65 mm,80 mm and 100 mm,and a width up to 1230 mm.Maximum height can reach 13 meter tall.

Feature:

Individual panels that can be stored away for maximum space utilization.
Operable top and bottom seals for effortless operation.
Isolated aluminium frame construction for enhanced acoustics.
High performance multiple in fill’s for maximum sound attenuation.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
No floor track ensuring obstruction free threshold.
Three panel sizes to accommodate a wide range of acoustic requirements .


Acoustic partition wall operation:

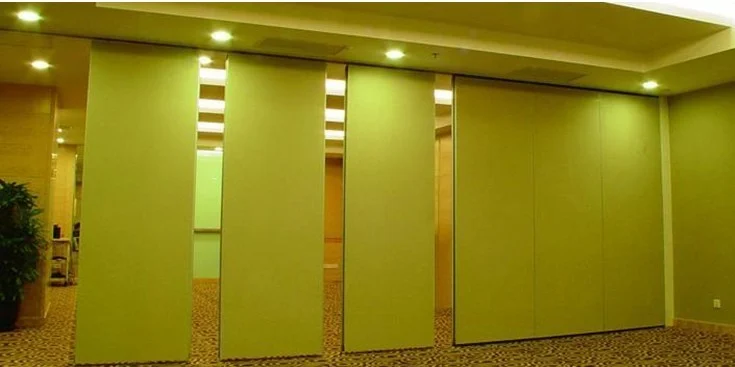

When the operable seals are retracted, panels glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide).
Telescopic end panels enable the wall to be locked off to complete the acoustic seal. The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.

Technical information:





Acoustic partition wall structure:

Panels:The Panels will be made from 12 mm MDF boards and shall be 100 mm thick and 1230 mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
Seals: vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23 mm.

We can offer:

We design and manufacture value for many products with one year’s warranty on all the outstanding ranges illustrated in this brochure.
They offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
