Hotel Acoustic Room Dividers / Wooden Sliding Wall Partitions Folding Parking System

High quality Hotel Acoustic Room Dividers / Wooden Sliding Wall Partitions Folding Parking System from China, China's leading product market sound proof room divider product, with strict quality control banquet hall room dividers factories, producing high quality banquet hall room dividers Products.

Request A Quote

Send Your Project Details

Product Description

Wooden Sliding Wall Partitions Hotel Acoustic Room Divider


Multi use:

Imagine being able to negotiate your space to work to your advantage, having the ability to single-handed transform a large area into multiple smaller spaces with minimal effort within a few moments. Now imagine the possibility of maximizing your revenue through the use of acoustic movable walls, during the day hosting multiple meeting functions simultaneously and, come evening time, the partitions are effortlessly stacked away and transformed into a large function room.

Our acoustic movable walls, also known as operable walls, are manufactured to the highest specification and can meet the highest safety requirements.

Acoustic movable walls offer many fantastic benefits, whether it’s dividing a school hall into two different multi-purpose areas for simultaneous physical activities, or splitting a large conference facility in smaller seminar rooms by sub-dividing these spaces with acoustic movable walls.

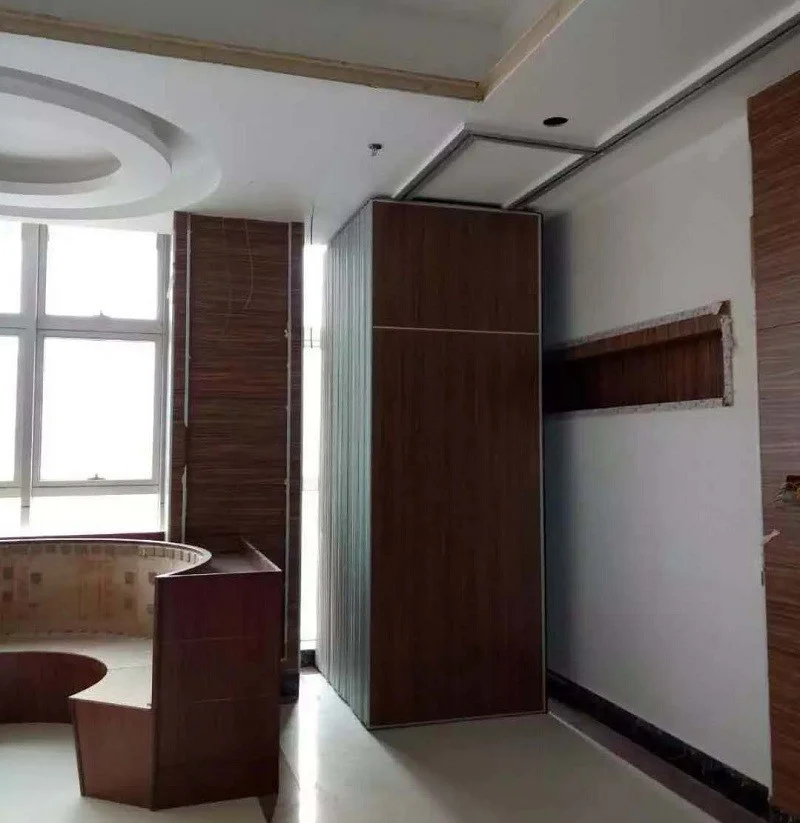

Hotel Acoustic Room Dividers / Wooden Sliding Wall Partitions Folding Parking System 0

Advantage:

1.Space management ~ Movable walls offer an effective space solution for many environments including offices, educational establishments, sporting facilities, dining and entertainment facilities, religious centers, or retail areas.
2.Smart use of space – Movable walls offer a flexible solution for making the most of an interior space. Room sizes can be changed in a matter of moments to capitalism on the revenue potential of commercial space or simply create the most efficient use of floor space.
3.Acoustics ~ the movable wall is the highest specification range of fully operable, individual-panel systems. Acoustic insulation of up to 55dB noise reduction is achieved with a combination of acoustic infills and operable top and bottom seals.

Technical information:


TYPE BG65 BG85 BG100
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 18000mm
Panel width

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

Frame Aluminum Aluminum Aluminum
Surface material 9mm 9mm 12mm
Fire safety Optional class I Optional class I Optional class I
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Retractable seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals
Operation of seals Manual, with supplied operating handle
Locking Optional lock to passing doors
Passing doors Single open in one panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M

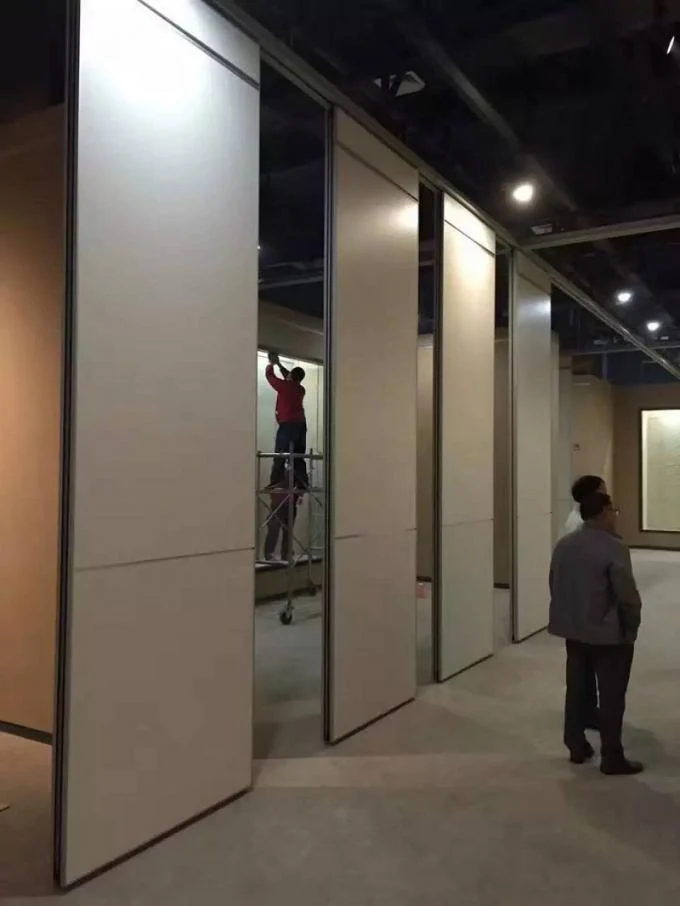

Hotel Acoustic Room Dividers / Wooden Sliding Wall Partitions Folding Parking System 1

Feature:
Operation ~ space without a trace ~ when the operable seals are retracted the panels will glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide). Final closure of each panel is by a removable operating handle that extends the seal from the top and bottom of each panel forming an acoustic seal.
Adaptable configurations – The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
Panel options ~ Individual panels can be constructed with either manual or semi automatic retractable top and bottom seal. Panels are also available curved or with inset pass doors and glazed cut outs.

We can offer:

A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.

Specifications

ServiceOEM Service
Metal TypeAluminium
Width500-1200 Mm
Panel TypeMelamine
Open StyleFolding
ApplicationClassroom,office
FunctionSoundproof
FeatureDurable,Easy,Assemble
Thickness65 Mm
Height4 M
ColorMulti Color
Highlightsound proof room divider , banquet hall room dividers

Product Details

Place of OriginChina,Guangzhou
Brand NameBUNGE
CertificationISO9001
Model NumberSeries 65 mm acoustic room divider
Packaging DetailsCarton package, MDF batten on four section sides ,foam board on both front face.
