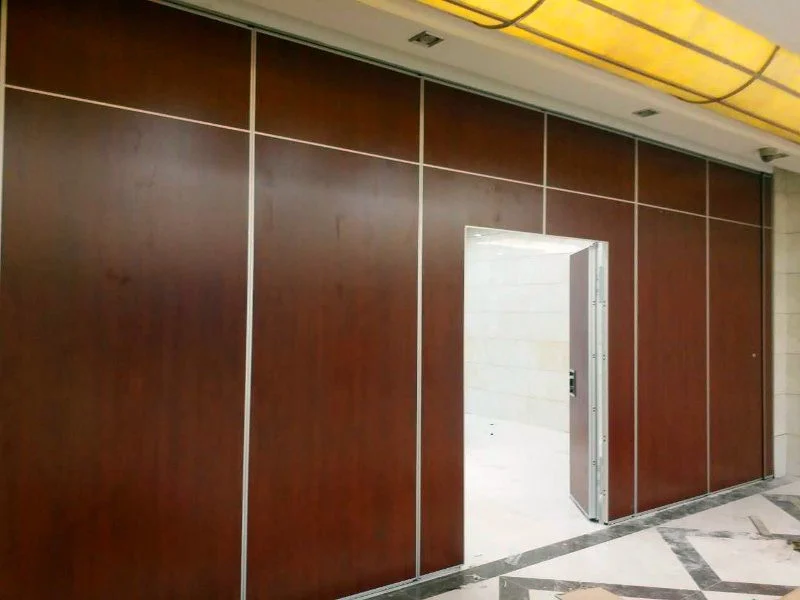

Name: High Sound Insulation Acoustic Operable Partition Walls With Aluminum Frame
Brand: EBUNGE

Product Description

3:Get a sample availability subject to confirmation.

4:Support a warranty terms subject to written confirmation.

5:Contact us for more details-Whatsapp:008613928983277.

Bunge Movable Partition Products as follow:

1. Ordinary Type : 65, 85; 100;

2. High Sound Proof Type: 85, 100;

3. Heavy Duty Type : 100, 125SH;

4. Glass Type: 65 (Glass Clip); 65 & 85(Aluminium Frame).

We Offer:

â A full professional design service.

â Survery and installation guide.

â Using top quality materials and components.

â A fully experienced work team.

â Maintenance contracts to ensure your valuable asset remains in full work order.

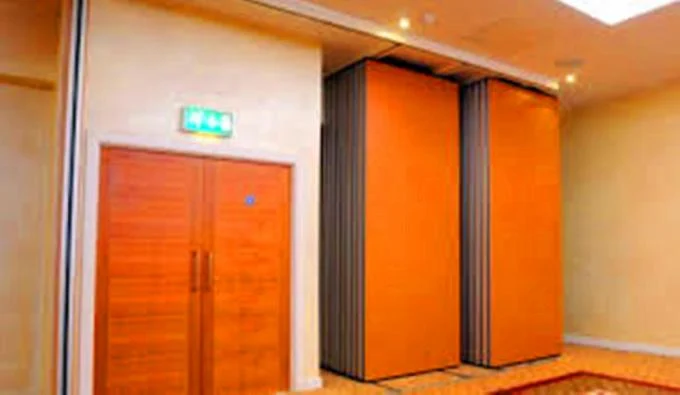

High Sound Insulation Acoustic Operable Partition Walls With Aluminum Frame 0
Specifications of Folding Partition Walls System

Series	BG65	BG80 / BG85	BG100 & BG125
Panel suspension	Top hung only	Top hung only	Top hung only
Track system	Single or twin point	Single or twin point	Single or twin point
Panel thickness	65mm	80mm / 85mm	100mm
Panel height	Up to 4000mm	Up to 6000mm	Up to 18000mm
Max height	4000mm	6000mm	18000mm
Panel width	600-1230mm	600-1230mm	600-1230mm
Frame construction	Aluminum frame	Aluminum frame	Aluminum frame
Face material	9mm	9mm / 12mm	12mm
Fire safety	Optional Class I or O	Optional Class I or O	Optional Class I or O
Vertical profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles
Retractable seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals
Operation of seals	Manual, with supplied operating handle	Manual, with supplied operating handle	Manual, with supplied operating handle
Locking	Optional lock to pass doors	Optional lock to pass doors	Optional lock to pass doors
Pass doors	Single open in panel or double open in two panel	Single open in panel or double open in two panel	Single open in panel or double open in two panel
Sound insulation	20-32dB Rw	28-36dB Rw	32-50dB Rw
Weight	Approx 22-35kg/sq M	Approx 25-40kg/sq M	Approx30-48kg/sq M
Finish Material	Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

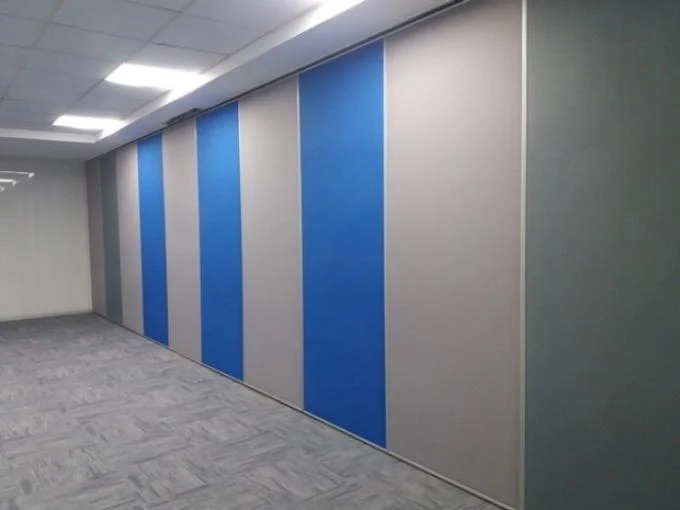

High Sound Insulation Acoustic Operable Partition Walls With Aluminum Frame 1

Features of Sliding Partition Walls

1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;

2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;

3. Soundproof and environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 53dB;

4. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;

5.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance.

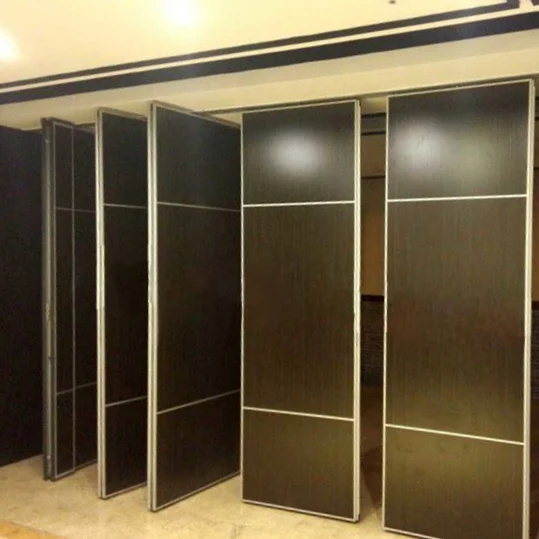

High Sound Insulation Acoustic Operable Partition Walls With Aluminum Frame 2

Specifications

Color	Accept Customized
Application	Conference Room,office
Material	MDF+Aluminum
Type	Commercial Furniture
Feature	Sound Proofing
Product Name	Sliding Partition Walls
Highlight	acoustic sliding partition , sliding folding partition

Product Details

Place of Origin	Guangdong
Brand Name	BANGE
Certification	ISO9001
Model Number	85 mm sliding partition walls
Packaging Details	Carton package, MDF batten on four section sides , foam board on both front face.
