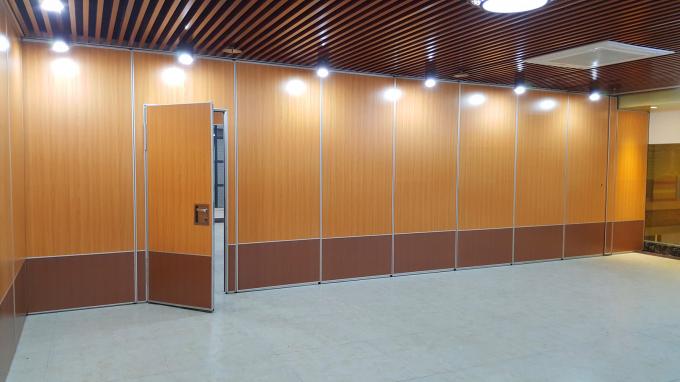

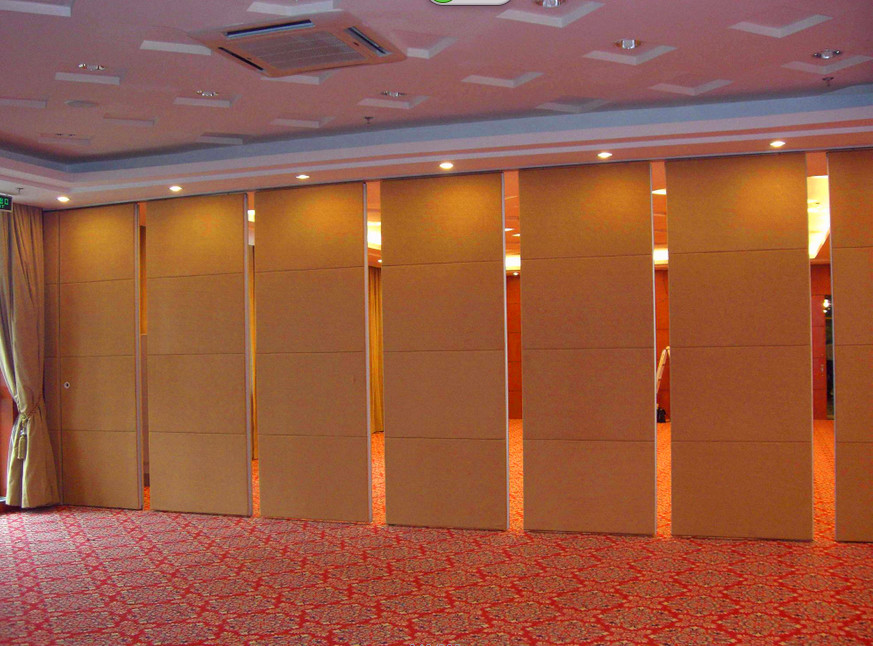

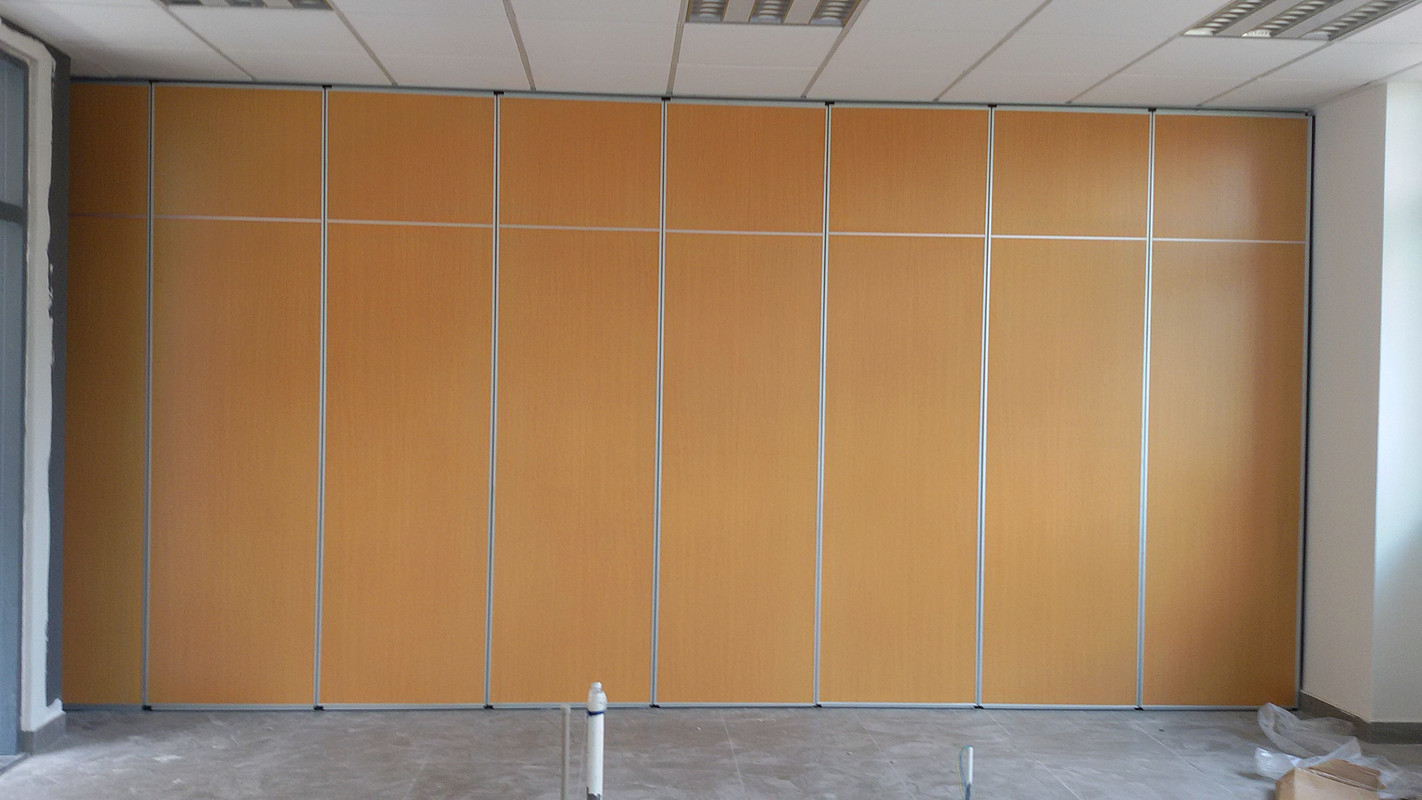

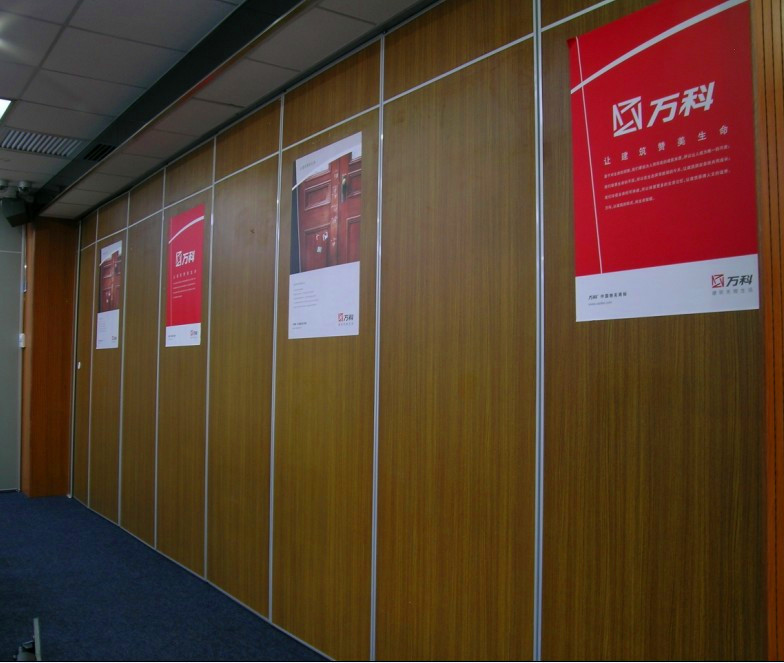

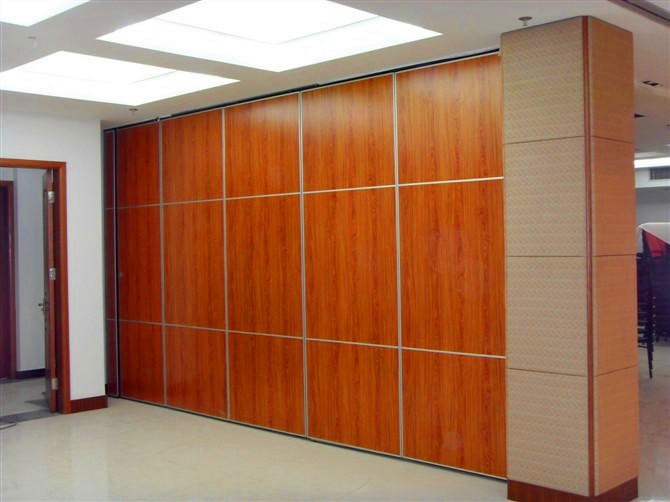

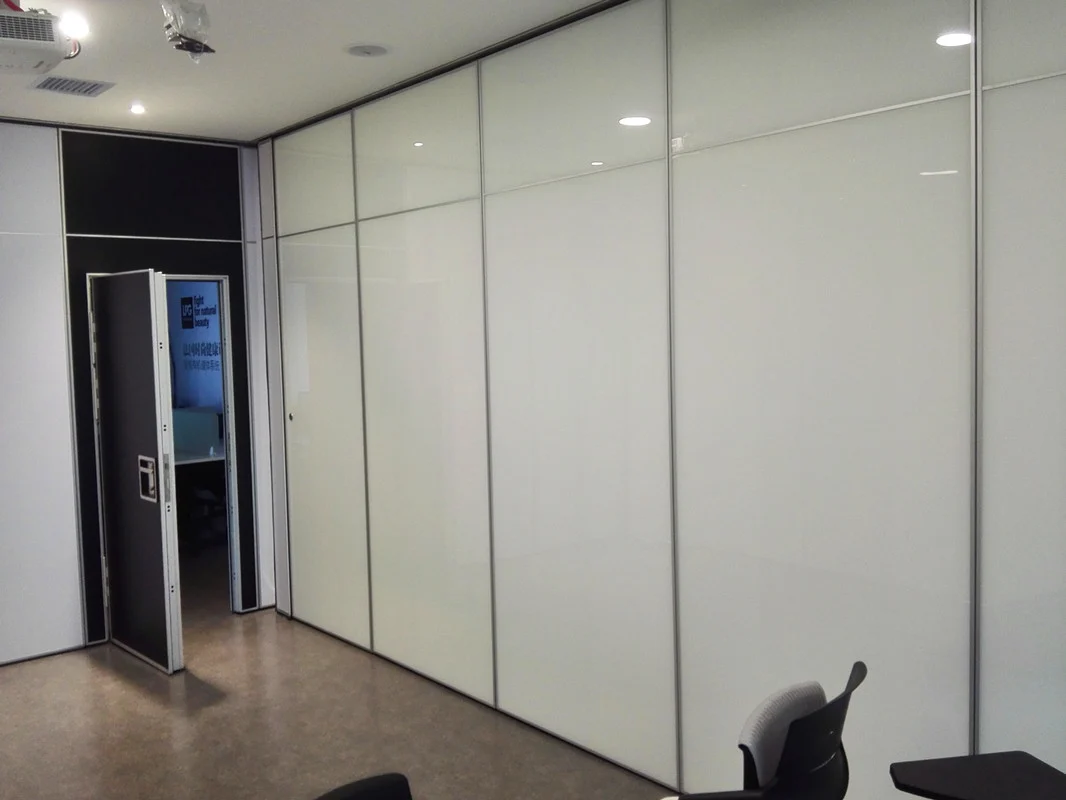

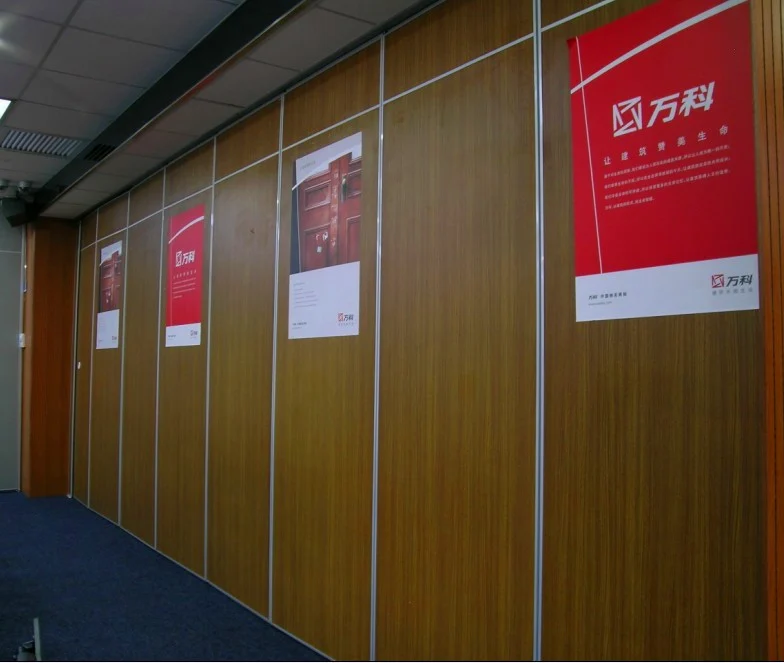

Hanging System Sliding Partition Walls For Classroom Panel Thickness 65 mm

Movable Wall Track Aluminium Frame Sliding Partition For Classroom

Description:

The partition wall is a good consideration of the propagation of sound waves, greatly improving the soundproofing of the partition. Partition models 65 type (65mm thick), 85 type (85mm thick), 100 type (100mm thick), ultra-high type, partition reference plane material gypsum board, fiber board, glass magnesium board, color steel plate, sound-absorbing board.

A variety of panels, such as melamine panels, are available for selection. The structure and frame are made of 6063-T6 reinforced aluminum alloy. The installation height is less than 10,000mm.

The soundproofing performance of the partition is significant. After laboratory tests, the air sound insulation can reach up to RW=53 dB. The panel material and internal soundproof materials used in the fire-proof partition are all flame-retardant materials.

Technical information:

Aluminium track system:

Aluminum tracks feature quiet operation, consistent shape for end-to-end alignment, selection of 2 separate ceiling officiants for ease of alignment, corrosion resistance and hard running surface for proper carrier movement. Tracks have been tested for a minimum of 10 years of use.

It uses track and trolleys on individual panels system and track and trolleys on paired panels system.

Feature:

1. Floor less suspension: There is no track on the floor, just install the track on the ceiling;

2.Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;

3.Compartments environmental protection: the compartment effect is good, the maximum sound insulation coefficient up to 53 db;

4.Insulation and energy saving: excellent heat insulation performance, according to different occupancy rates, divide the large rating into small spaces to reduce air conditioning power consumption;

5.High-efficiency fire prevention: The production of high-efficiency fireproof materials, and good fireproof performance;

6.Beautiful and generous: any surface decoration, can be combined with the indoor decoration effect.

Operation:

A large amount of repairs are as a result of incorrect operation by users. Movable wall panels are deceptively heavy due to the ease of operation but are capable of serious crush injuries.

Your work place risk assessments should have taken this into account and state that only trained and authorized personnel may operate the wall. we will offer training on the safe and correct operation of your system to your staff.

Movable walls and sliding folding partitions do have a life cycle and there is a point where maintenance and repairs become either impossible or uneconomical.

Feature:

A full professional design service.

Survey and installation service – using UK manufactured materials and components and a fully experienced fitting team.

Maintenance contracts – to ensure your valuable asset remains in full working order.
