Hanging System Operable Movable Partition Walls MDF + Aluminum Material

High quality Hanging System Operable Movable Partition Walls MDF + Aluminum Material from China, China's leading product market movable partitions systems product, with strict quality control acoustic movable walls factories, producing high quality acoustic movable walls Products.

Request A Quote

Send Your Project Details

Product Description

Banquet Hall High Quality Hanging System Operable Movable Partition Walls



Specification:

There are wide of range face finishes are available :melamine faced MDF or Plywood,,fabric,carpet,fabric,artificial,leather,wood veneer,high pressure laminate,Formica ,acoustic panel,white boad ect.,panels may also be supplied unfinished for field decoration,Standard frame color is clear anodized aluminum,custom powder coating colors are available.

BUNGE works with Architects,designer,developers,contractores and owners in design product selection,decorative finishes,project management and after-sales warranty services as her one-stop solution business service.

Hanging System Operable Movable Partition Walls MDF + Aluminum Material 0

Bunge Operable Wall Systems-Technical Information

TYPE BG65 BG85 BG100 & BG125
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 18000mm
Panel width

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

500 – 1200mm

1′ 5/8″ — 4′

Frame Aluminum Aluminum Aluminum
Surface material 9mm 9mm 12mm
Fire safety Optional class I Optional class I Optional class I
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Retractable seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals
Operation of seals Manual, with supplied operating handle
Locking Optional lock to passing doors

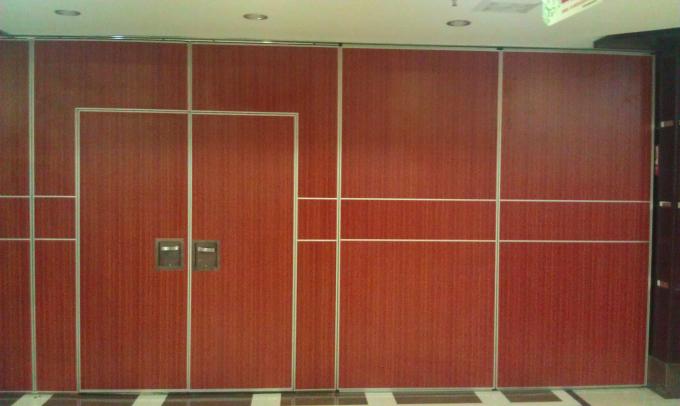

Passing doors Single open in one panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M

Hanging System Operable Movable Partition Walls MDF + Aluminum Material 1



2,FIXING

Moveable partitions are a series of individually operated panels along a track system designed for maximum space planning flexibility. They can be arranged quickly, easily and efficiently.Movable partition wall is also called sliding partition wall or movable sound insulation wall, which is widely used to divide big room into small rooms. Each piece of partition can turn 360 degree which makes it flexible. Different core materials decide its sound insulation performance and various finishes make it adapt to many projects such as hotel, exhibition hall, restaurant, multi-functional room, etc.

Hanging System Operable Movable Partition Walls MDF + Aluminum Material 2



Common Applications:

1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.

2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.

3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.

4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.

Hanging System Operable Movable Partition Walls MDF + Aluminum Material 3

Specifications

Panel Width500 Mm--1220 Mm
MaterialMDF+Aluminum
ApplicationHotel,Banquet Hall
FinishingMelamine,fabric,leather
PositionInterior
ServiceOEM ODM
Product NameMovable Partition Walls
ColorColor Selective (Customized)
StyleOpening
Thickness65 Mm(2 9/16 Inch)
Highlightmovable partitions systems , acoustic movable walls

Product Details

Place of OriginGuangdong
Brand NameBUNGE
CertificationISO9001
Model NumberSeries 65 mm movable partition walls
Packaging DetailsCarton package, MDF batten on four section sides , foam board on both front face.
