Product Description

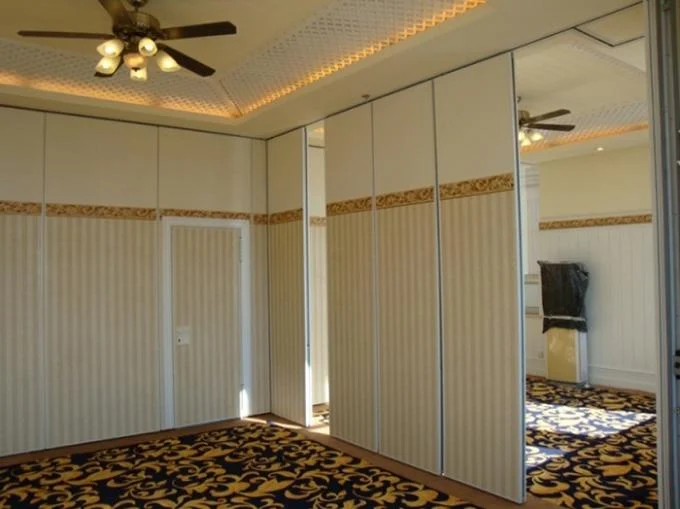

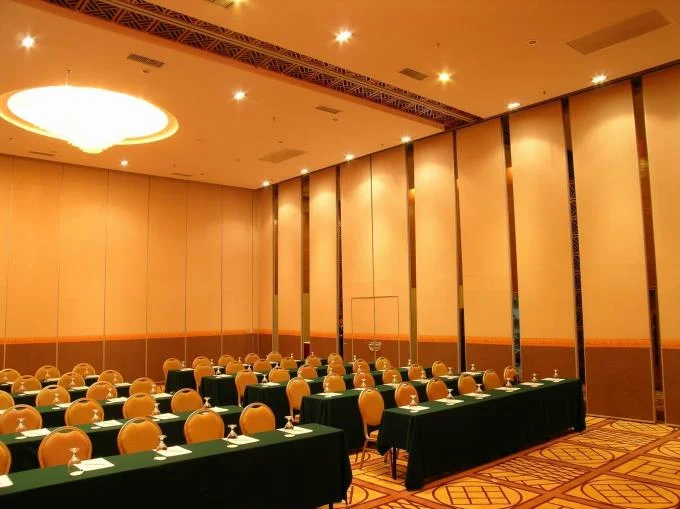

Decorative Operable Sliding Aluminium Acoustic Room Dividers
Construction:
Wall panels are of double skin construction with a robust internal aluminium frame.The panel faces are not hard fixed to the frame and therefore when sound waves hit one side of the wall the vibration caused is not directly transferred to the opposite face.Aluminium edge profiles may be concealed,or exposed to provide a trim.
Heavy duty rubber gaskets are fitted to the panel profiles ensuring maximum acoustic sealing to all surrounding surfaces.The highest levels of sound reduction are achieved by introducing rubberize bitumen membranes and mineral wool insulation to the core of each panel.
The rapid action mechanism,which operates the retractable seals, is designed to exert sufficient pressure to achieve the high levels of sound reduction offered.The retractable seals are designed to tolerate deviations in floor level and deflections of supporting structures.The tolerance limit is evaluated for each individual application.
Operation:
When moving a wall panel there is a 20-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel by extending pressure seals. The pressure seals are extended and retracted by a single 180 turn of a removable operating handle.
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel.This action simultaneously extends the top and bottom seals.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |

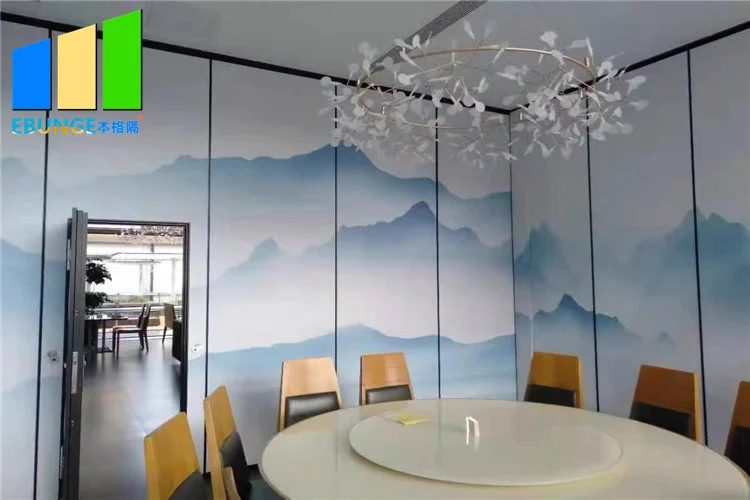

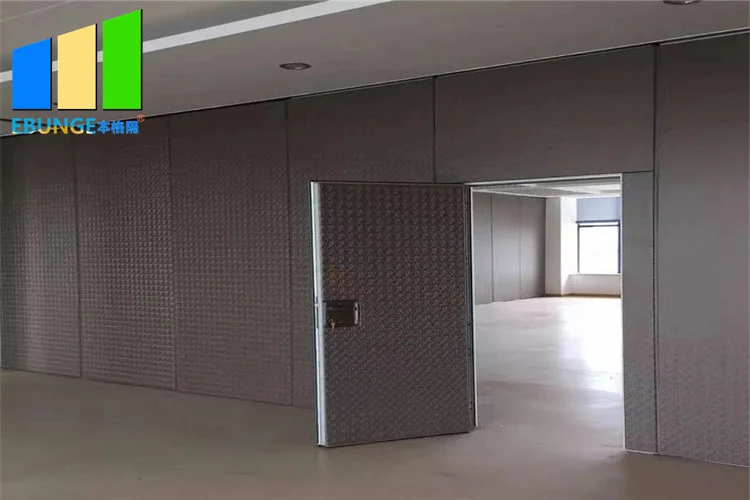

| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Feature:
Individual panels that can be stored away for maximum space utilization.
Operable top and bottom seals for effortless operation.
Isolated aluminium frame construction for enhanced acoustics.
High performance multiple infills for maximum sound attenuation.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
No floor track ensuring construction free thresh ole.
Three panel sizes to accommodate a wide range of acoustic requirements.
Extensive range of surface finishes can be applied.
We can offer:
A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.
Specifications
| Finished | Leather,melamine |
|---|---|
| Service | OEM Service |
| Width | 500-1200 Mm |
| Thickness | 85 Mm |

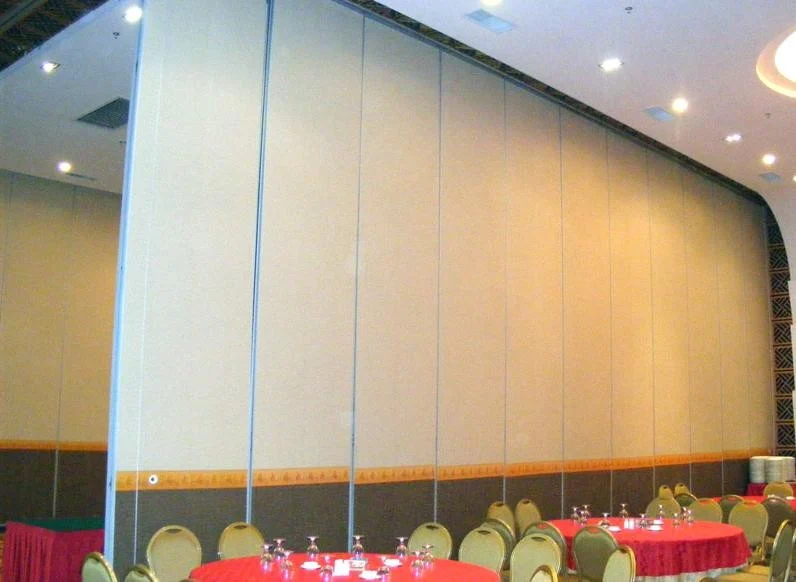

| Application | Function Hall, Banquet Hall |
| Height | 6 M |
| Material | MDF Board+Aluminium |
| Highlight | sound proof room divider , banquet hall room dividers |
Product Details
| Place of Origin | China,Guangzhou |
|---|---|
| Brand Name | BUNGE |
| Certification | ISO9001 |
| Model Number | Series 85 mm acoustic room divider |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. |
