EBUNGE Partition Solution

Folding Soundproof Movable Acoustic Partition Walls For Office Conference Room

Explore Folding Soundproof Movable Acoustic Partition Walls For Office Conference Room for overseas B2B partition projects. Share the application, opening dimensions, quantity and preferred finish with EBUNGE for project review.

Request A Quote

Product Description

Folding Soundproof Movable Acoustic Partition Walls for Office Conference Room

Acoustic partition walls details



The acoustic partition wall is an individual panel partition wall system, designed to maximize noise reduction whilst manipulating interior space. 56dB noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple and a panel assembly design that allows an acoustic break between the frame and outer layer. The panels can be supplied with almost any surface finish, including MDF board bare finish, acoustic fabric and leather, melamine.

Our acoustic partition walls system accessories are custom for each client and project,and they are also made of superior material. Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .

Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system.

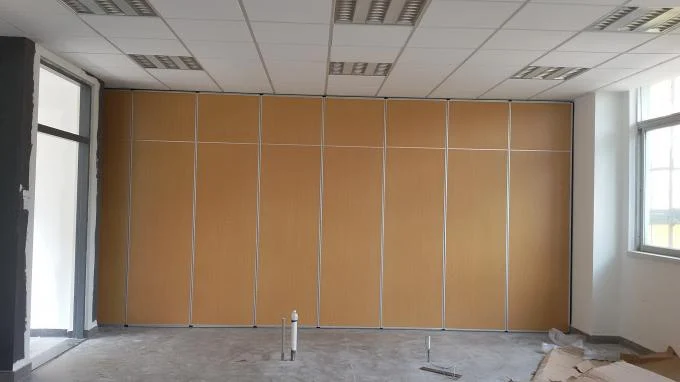

Folding Soundproof Movable Acoustic Partition Walls For Office Conference Room 0


Technical information



Model BG65 BG85 BG100
Suspension System Hanging System, with ceiling rails
Basic Thickness 65mm 85mm 100mm
Max Height Max 3800mm Max 6000mm Max 8000mm
Width 800 -1230mm
Floor/ceiling Sealing
strength
Telescopic aluminum tube with rubber strip
Side Walls Sealing
Strength
Double seal tape
Base Board Thickness 9 mm 9 mm 12 mm
Vertical Profiles Aluminum anodised with sealing profiles
Retractable Seals Aluminum black with double rubber seals
Operation Manual System, with supplied operating handle
Pass Doors Single or Double Pass Through Door Available
Weight Approx 22-35 kg/m² Approx 25-40 kg/m² Approx30-48 kg/m²
Finish Options Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

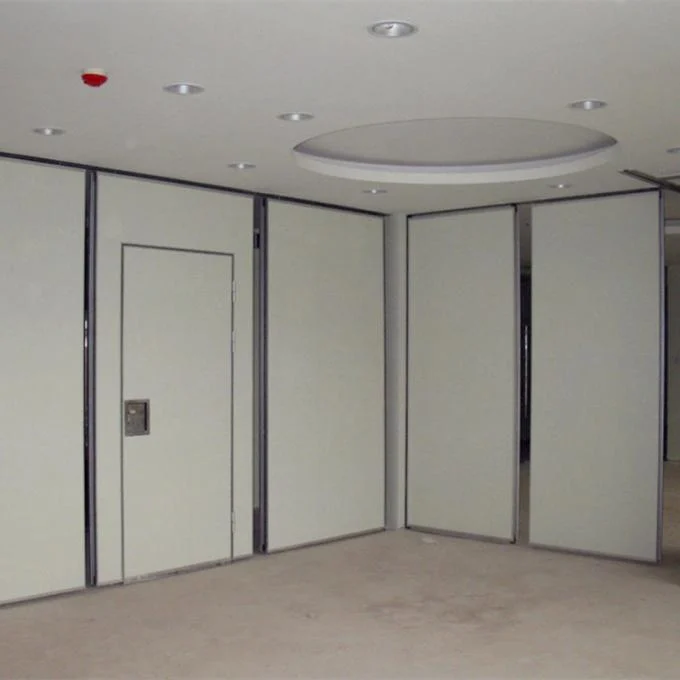

Folding Soundproof Movable Acoustic Partition Walls For Office Conference Room 1

Acoustic partition walls features


The acoustic partition walls are a fine investment to make, no matter how much space you have available! Here, we have developed a wealth of knowledge and expertise over the years, installing movable walls and folding partitions, so you can rest assured that you’re in capable hands.



Specializing in design, manufacture and installation, we make sure that your acoustic partition walls are installed correctly, providing you with a temporary solution for dividing areas within your office. At movable Partitions, we accommodate the needs and requirements of all client’s, meeting and exceeding criteria, wherever possible.



Whether you’re looking for acoustic partition walls to minimize unwanted sounds or to modernism the layout of your office, we have just the solution! Our acoustic movable walls are designed to suit your exact specification, including your unique budget requirements.



No matter which of our concertina walls you choose to install to your property, you’re sure to discover products that are priced competitively, making it inevitable for you to receive the best value for your money.

Folding Soundproof Movable Acoustic Partition Walls For Office Conference Room 2

Specifications

Product NameAcoustic Partition Walls
ApplicationConference Room Partitions
FinishMelamine, Fabric Or Leather
Based BoardMDF Or Plywood
ColorOptional
Highlightacoustic operable partitions , movable acoustic partition walls

Product Details

Place of OriginGuangzhou, China
Brand NameEBUNGE
CertificationISO 9001
Model Number85 mm acoustic partition walls
Packaging DetailsPaper carton, outside with wooden box.
