EBUNGE Partition Solution

Folding Glass Movable Partition Wall Active Sliding Aluminium With Partition Belt Mobile Partition Wall For Lobby Aisle

High quality Folding Glass Movable Partition Wall Active Sliding Aluminium With Partition Belt Mobile Partition Wall For Lobby Aisle from China, China's leading product market acoustic folding partition product, with strict quality control folding room partitions factories, producing high quality folding room partitions Products.

Request A Quote

Product Description

65MM aluminum frame sound proof partitions melamine surface movable wall
Specification:

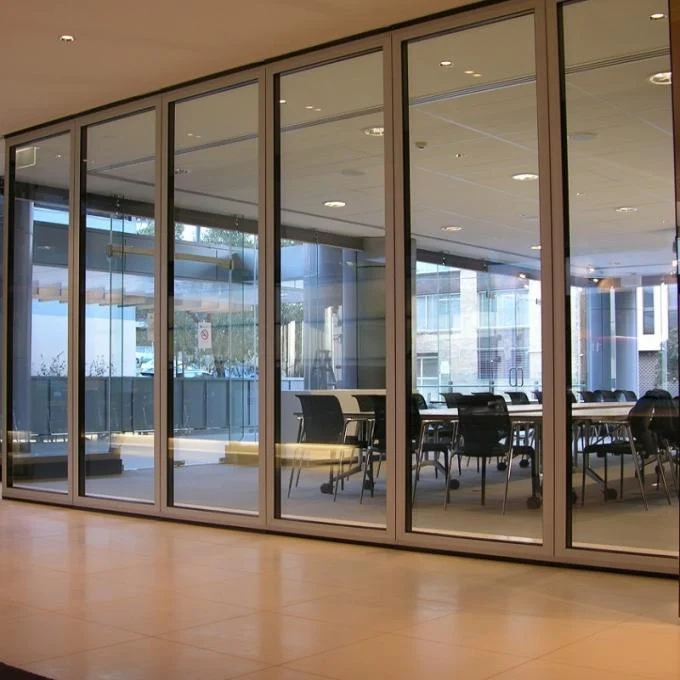

Folding Glass Movable Partition Wall Active Sliding Aluminium With Partition Belt Mobile Partition Wall For Lobby Aisle 0

Specifications
1)Interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
2)To ensure additional friction connection, shall be integrated with magnetic strip.
3)Easy element adjustment after installation.
4)Sliding glass partition wall Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
5)Surface panel shall be of 9 mm or 12 mm tempered glass.


Technical parameters:

Series BG65 Glazing Glass Partition BG85 Aluminum Frame Glass Partition BG85 Sound proof Glass Partition
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 36mm 85mm 85mm
Panel height Up to 3000mm Up to 6000mm Up to 6000mm
Max height 3000mm 6000mm 6000mm
Panel width 800-1100mm 800-1100mm 800-1100mm
Frame construction Top and bottom aluminum Aluminum frame Aluminum frame
Glass thickness 10mm or 12mm single glass 10mm or 12mm single glass double 10mm glass
Fire safety Optional Class O Optional Class O Optional Class O
Vertical profiles n/a n/a Aluminum anodised with sealing profiles
Retractable seals n/a n/a Aluminum black with double rubber seals
Operation of seals n/a n/a n/a
Pass doors Fixed full height door Fixed full height door Fixed full height door
Locking Optional lock to panel Optional lock to panel Optional lock to panel
Sound insulation n/a n/a n/a
Weight Approx 30 kg/sq M Approx 32 kg/sq M Approx 50 kg/sq M


Surface:
Movable glass partition usually used in office,restaurant,hotel lobby,wharehoue and any other place where we want to see the inside view and with less stringent insulation requirements. It is a good room divider,make our space flexible,maximize the use of our room.
For the glass partition wall,there are two type:aluminum frame partition and frameless aluminium partition. They can be customized to transparent tempered glass partition or frosted tempered glass partition,as following shows:

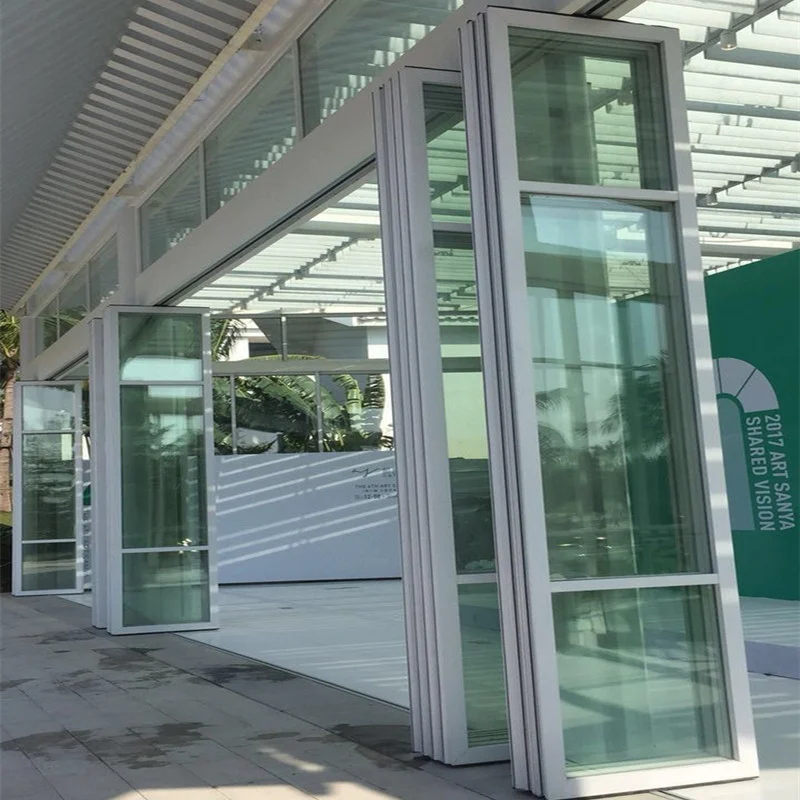

Folding Glass Movable Partition Wall Active Sliding Aluminium With Partition Belt Mobile Partition Wall For Lobby Aisle 1



    sample availability subject to confirmation in 10 Days       Inquiry now and you will have your sample in 10 day if you pay the express.                 3-year Warranty                     The acoustic room divider made of 6063-T5 alumina, anti-aging, no fading and abrasion in 10 years                 OEM Service                Your logo can be printed on the packaging carton


About us:
Guangdong Bunge Building Matarial Industrial Co.,Ltd is professional company in manufacturing movable partitions.It also artistically designs and carefully does research and development(R&D).The company has adopted the advance partition technology of USA,Germany and Denmark.We have professional staffs with more than 10 years of experience in design,production and installation.
Our product(movable partition)are widely used in the hotel,banquet hall,meeting room,exhibition hall,conference room,International convention center,KTV,upscale restaurants,office building,school,hospital and others.
Nowadays,the modern trend in building needs more flexibility and convenience to use the space of their rooms.Most of the building designers like to prepare open plan space,sound proof effect,and easy to operate.The solution of the designers need is the movable partition.
Bunge movable partition products as follow:
1.Ordinary Series:65MM,85MM;
2.High Sound Proof Series:85MM,100MM;
3.Super High Series:Steel Track System
4.Glass Series:65MM & 85MM Aluminum Frame

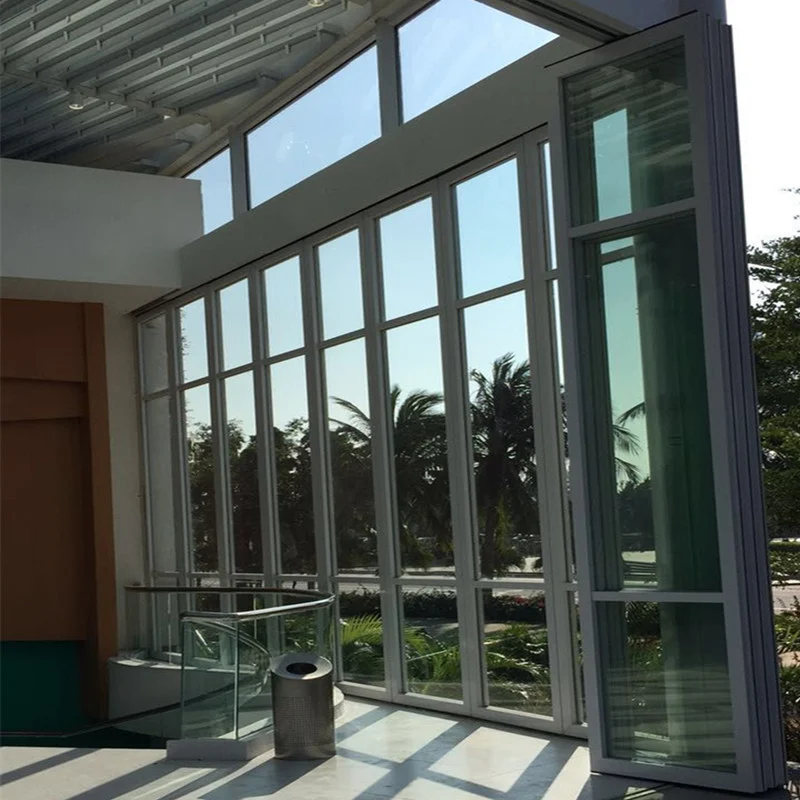

Folding Glass Movable Partition Wall Active Sliding Aluminium With Partition Belt Mobile Partition Wall For Lobby Aisle 2

We have clients from all over the world,they are satisfied with our soundproof movable partition walls.
When they came to our factory, they all surprised at our environment and our technology.
There are a big movable wall show room in our factory, with different finish samples. Like glass partition, melamine partition, leather partition, fabric partition etc.

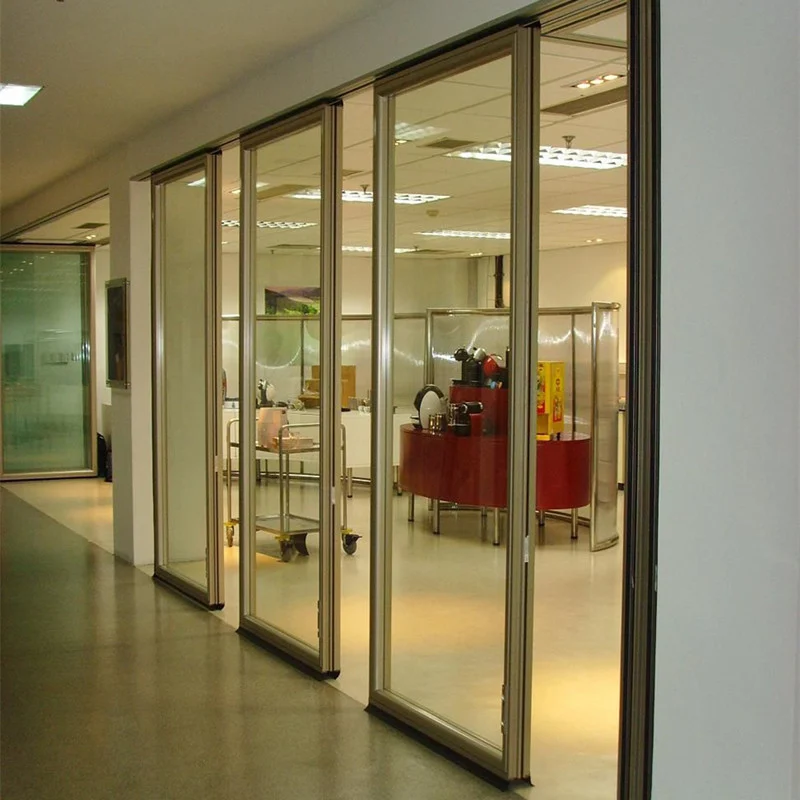

Folding Glass Movable Partition Wall Active Sliding Aluminium With Partition Belt Mobile Partition Wall For Lobby Aisle 3



Specifications

Product NameFolding Partition Wall
MaterialAluminium Frame And Mdf Board
HeightLess Then 3 M
Width500-1200 Mm
Thickness65mm
FunctionSpace Divide,sound Proof
ApplicationGallery,theater,office,banquet Hall,hotel Ect
Highlightacoustic folding partition , folding room partitions

Product Details

Place of OriginGuangzhou,China
Brand NameBUNGE
Model NumberSeries 65 mm sound proof partitions
Packaging DetailsCarton package, MDF batten on four section sides ,foam board on both front face.
Project Support

Send Your Project Details

Share the application, opening dimensions, quantity and preferred finish. The EBUNGE team will review the information before preparing a project-specific response.

  • Current product is recorded automatically
  • Drawings and reference files are supported
  • Project requirements remain editable before submission
Drawing or reference file
No file selected
