Product Description
Foldable Acoustic Soundproof Movable Wall Panels , Meeting Room Dividers Partition
Specifications
of Acoustic Soundproof Movable Wall Partitions:
Modernfold markets a wide range of space division solutions including Moveable Glass Walls, Operable Partitions, and Accordion Doors.Modernfold partitions help architects, interior designers, and building owners more efficiently utilize a space.
Our partitions are used in a number of different applications to deliver greater functionality and sound control, including office buildings, gymnasiums, classrooms, hotels, hospitals, retail, banks, and conference and exhibition centers. Modernfold never loses sight of the fact that each project is unique and demands individualized attention to design, product selection, installation, and service.
|
BUNGE 65# SERIES
|
|||||||
|
Baisc board
|
Hoisting weight (kgs/ã¡)
|
STC (db)
|
Sturcture Material
|
Top/Bottoom Telescopic
|
Width (mm) Min/Max
|
Height (mm) Min/Max
|
Thickness (mm)
|
|
Plywood MDF
|
22 – 35 kgs/ã¡
|
32db
|
Aluminum
|
22.5mm
|
600/1230mm
|
2000/4000mm
|
65mm
|
|
Melamine surface
|
|||||||
|
Leather /fabric surface
|
32/35db
|
||||||
Track:
The tracks are made from extruded 6063 – T6 anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Trolley:
BUNGE Centre/ Side /Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method.
Aluminum trim: The panel trims will be standard series with exposed Aluminum trims of 15mm thickness finished in 6063 – T6 Anodized Aluminum shall be used.
Seals:
Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.
Acoustic insulation Material: Rockwool sound absorption glass fiber shall be used.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the wall.

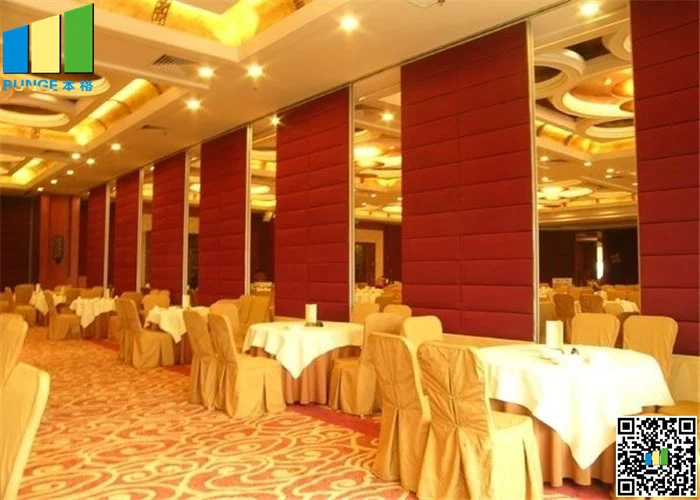

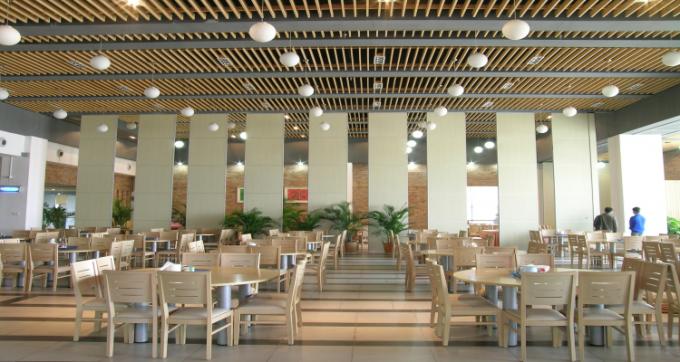

Project Case of Acoustic Soundproof Movable Wall Partitions
Specifications
| Application | Meeting Room, Conference Room |
|---|---|
| Loading | Hanging System |
| Surface | Fabric , Leather , Melamine |
| Wall Height | 2 M - 13 M |
| Highlight | movable partitions systems , acoustic movable walls |
Product Details
| Place of Origin | China |
|---|---|
| Brand Name | Bunge |
| Certification | SGS,CE etc. |
| Model Number | Acoustic Soundproof Movable Wall Partitions |
| Packaging Details | Acoustic Soundproof Movable Wall Partitions : Carton package, MDF batten on four section sides ,foam board on both front face. |
