Flexible Sliding Partition Walls Room Divider Mdf Gypsum Board Movable Partition Wall Hotel Garden

High quality Flexible Sliding Partition Walls Room Divider Mdf Gypsum Board Movable Partition Wall Hotel Garden from China, China's leading product market sliding folding partition product, with strict quality control sound proof sliding partitions factories, producing high quality sound proof sliding partitions Products.

Request A Quote

Send Your Project Details

Product Description

Sliding partition walls room divider mdf gypsum board movable partition wall hotel garden

Description:

Sliding Partition Walls, the flexible space configuration, with little effort rooms can be partitioned, made smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.

Options include single or double inset pass doors, glazing panels, virtually unlimited track arrangements, and surface finishes, with melamine probably being the most popular.

The best door for maximum acoustic performance, with variable options on sound reduction from 32 dB (Rw) to 53 dB(Rw).
Also available with 30 and 60-minute fire resistance.
Manual or Semi-automatic operation.

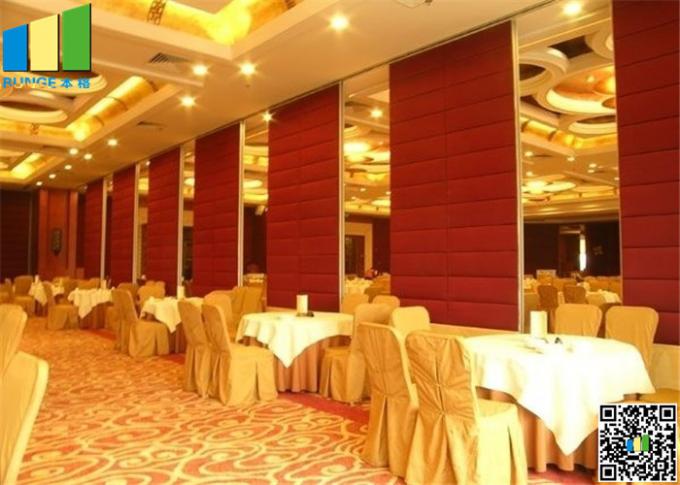

Flexible Sliding Partition Walls Room Divider Mdf Gypsum Board Movable Partition Wall Hotel Garden 0

Technical parameters:

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wallpaper, Vinyl, Painting, etc. (Customized)

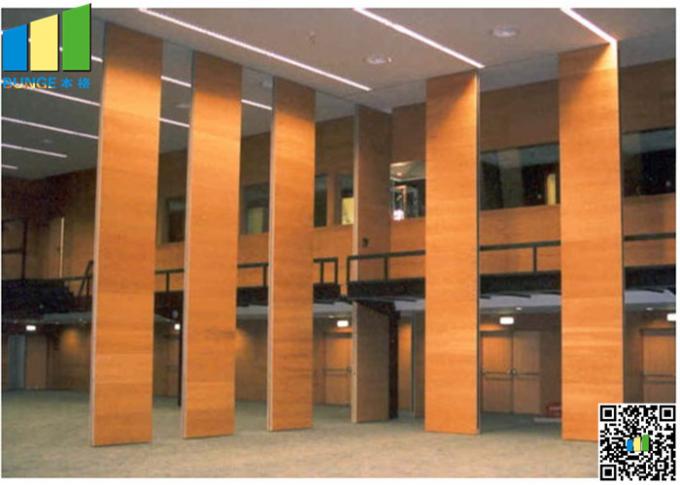

Flexible Sliding Partition Walls Room Divider Mdf Gypsum Board Movable Partition Wall Hotel Garden 1

Feature:

1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;
2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;
3. Soundproof and environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 53 dB;
4. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;
5.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance;
6. Convenient collection: when closing, the partition can be hidden in a dedicated storage cabinet, which does not affect the overall appearance.

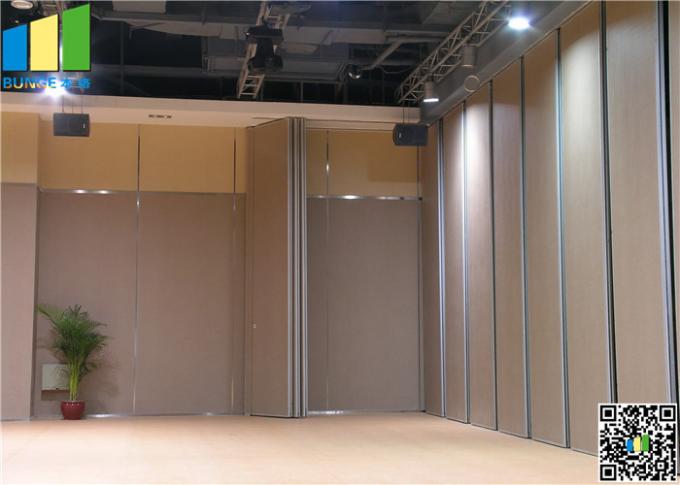

Flexible Sliding Partition Walls Room Divider Mdf Gypsum Board Movable Partition Wall Hotel Garden 2

Packing and shipping:

Packaging Details
Export carton box and wooden pallet or customized packaging.
Delivery Time
Shipped in 18 days after receiving the deposit payment, sliding partition wall quantity is less than 200 square meters.(T/T 40% deposit advanced, balanced before shipping).

Specifications

Product NameSliding Partition Walls
MaterialAluminium And Mdf Board
HeightLess Then 4 M
Width500-1200 Mm
Thickness65mm Aluminum Frame
FunctionSliding Room Divider
FinishMelamine, Fabric, Leather, MDF Bare Finish
Highlightsliding folding partition , sound proof sliding partitions

Product Details

Place of OriginGuangzhou,China
Brand NameEBUNGE
Model NumberSeries 65 mm Sliding Partition Walls
Packaging DetailsCarton package, MDF batten on four section sides ,foam board on both front face.
