Fabric Soundproofing Movable Acoustic Partition Wall For School Classroom

High quality Fabric Soundproofing Movable Acoustic Partition Wall For School Classroom from China, China's leading product market acoustic operable partitions product, with strict quality control movable acoustic partition walls factories, producing high quality movable acoustic partition walls Products.

Request A Quote

Send Your Project Details

Product Description

School Classroom Fabric Soundproofing Movable Acoustic Partition Wall in Myanmar



Acoustic partition walls details



The acoustic partition walls panel is made of high density aluminum frame, special made rubber, excellent sound insulation cotton, finish board, etc. The finish panel is flat and hard; The acoustic partition walls finish panel is inserted in the aluminum track, assembled with multi-direction wheels. The acoustic partition walls panel can be stored in many different ways. BUNGE acoustic room divider is flexible, artistical and can be moved freely. And it has sound insulation, heat insulation and fireproof function.





Acoustic partition walls doesn’t need track on the floor, we hang the track on the ceilings and it can be at the same color with the ceiling decoration. It won’t affect the whole decoration style. We can add single or double doors on the panel for convenience. Many different finishes are available to meet customer different requirements and get different decoration effects.

There is sound insulation rubber around each panel, which can help to insulate the sound going through. The operation way is much easier. It’s better than the old ways which using spring. The acoustic partition wall is widely used in exhibition center, hotel, shopping malls, school, multi-function hall, banquet hall, conference room, training room, etc.

Fabric Soundproofing Movable Acoustic Partition Wall For School Classroom 0



Technical Information



Model BG-65 series BG-80 series BG-100 series BG-high series
Suspension system Aluminum hanging Aluminum hanging Aluminum hanging Steel hanging
Basic thickness 65mm 85mm 100mm 100mm
Total thickness 65/75/85/95mm 85/90/100/110mm 100/120/130mm 100/120/130mm
Max height Up to 3800mm Up to 4500mm Up to 6500mm Up to 12000mm
Width 600-1230mm 600-1230mm 800-1230mm 800-1230mm
Floor/ceiling sealing strength Telescopic aluminum tube with rubber strip
Side walls sealing strength Double seal tape
Sound insulation level 26dB-30dB 28dB-34dB 32-40dB 32-40dB
Panel structure Aluminum frame with wooden keel Aluminum frame with steel keel
Panel density 22-28kg/sqm. 24-32kg/sqm. 32-50kg/sqm. 40-68kg/sqm.
Surface material Melamine laminate/fabric/PU leather/wallpaper/veneer/customized

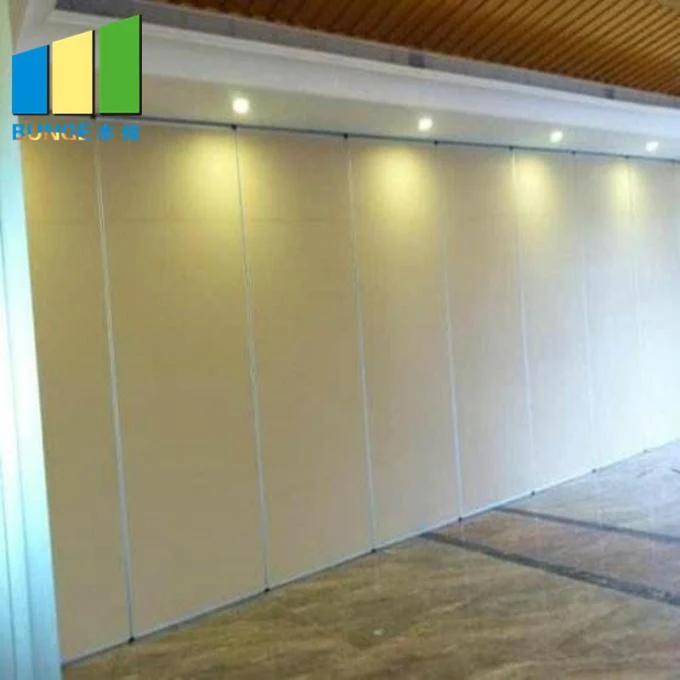

Fabric Soundproofing Movable Acoustic Partition Wall For School Classroom 1



Acoustic partition walls features



1. The acoustic partition wall is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.



2. Around the acostic partition walls panel, there is sound insulation rubber, it can help to insulate the sound entering.



3. The acoustic partition wall is hanging on the aluminum track, assembled with muti direction wheels.



4. We can add single or double doors on the movable partition wall panels for entering convenience.



5. Acoustic partition wall is modernized decoration style. It can separate the space speedly and conveniently. And it has sound insulation and heat insulation and fireproof function;



6. The acoustic partition wall is made from high density s/s frame, special made rubber, excellent sound



7. The acoustic partition walls finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in may different ways;

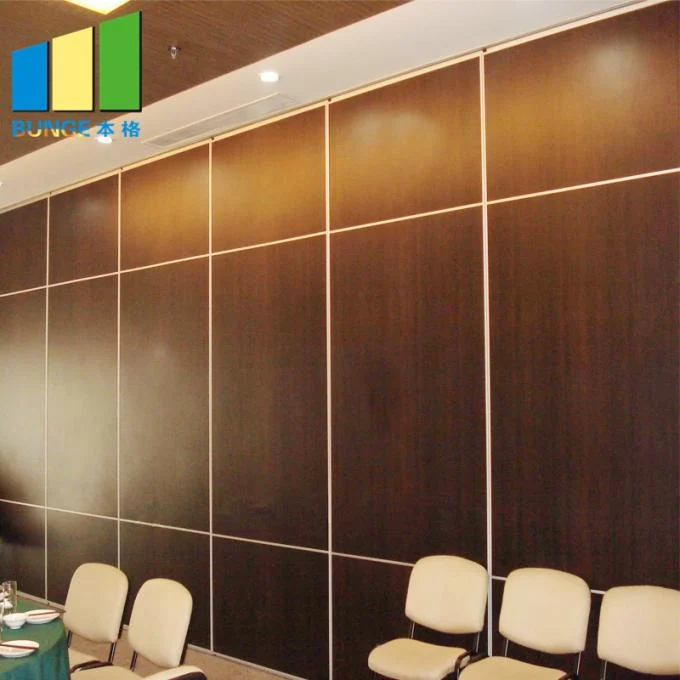

Fabric Soundproofing Movable Acoustic Partition Wall For School Classroom 2



Specifications

Product NameAcoustic Partition Walls
ApplicationSchool Classroom Partitions
SizePartition Walls Customized
StyleFolding And Sliding
PackageWooden Boxes
ServiceOEM ODM
Highlightacoustic operable partitions , movable acoustic partition walls

Product Details

Place of OriginGuangzhou, China
Brand NameEBUNGE
CertificationISO9001
Model Number65 mm acoustic partition walls
Packaging DetailsPaper carton, outside with wooden boxes
