Product Description
Banquet Hall Partitions Room Dividers Sliding Folding Room Partition Walls
Folding Room Partitions Details

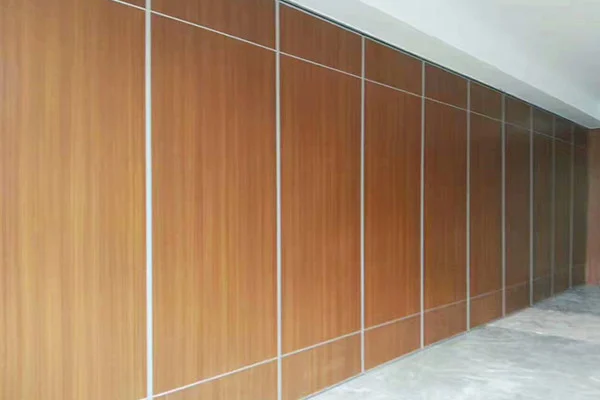

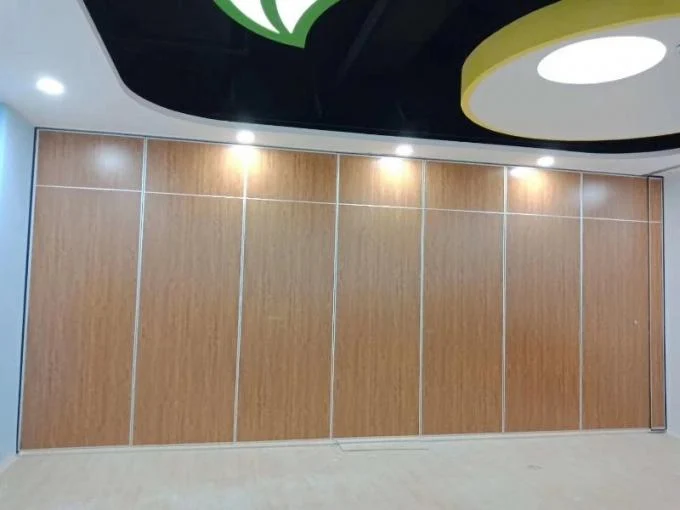

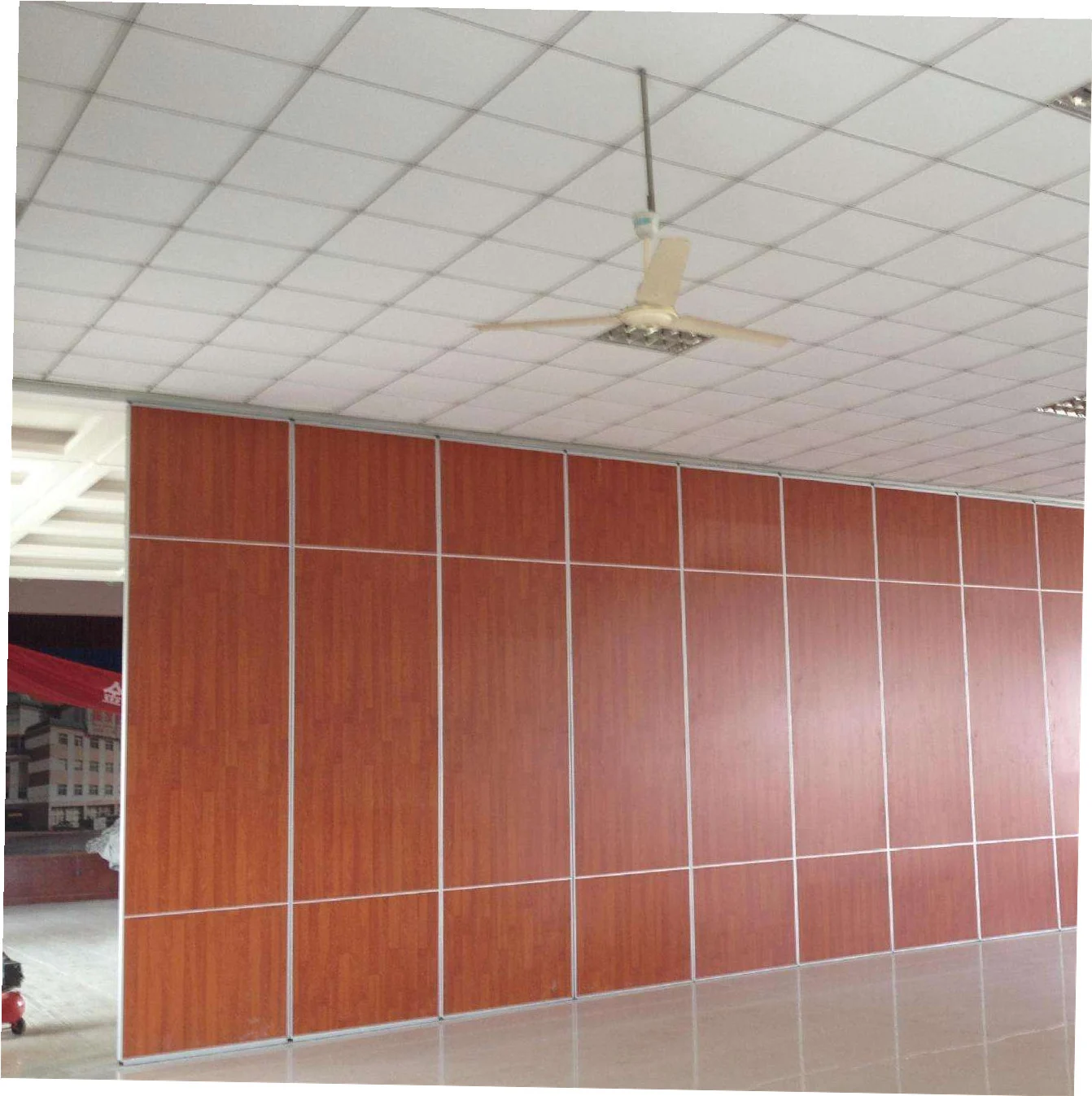

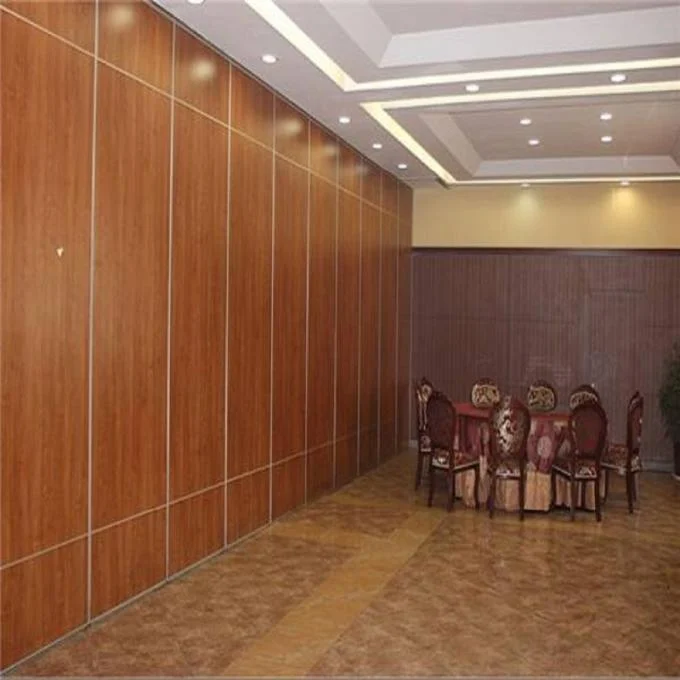

The folding room partitions system is a tongue and groove combination panel system. All vertical and horizontal structure consists of extruded aluminum assemblies with extruded vinyl. The folding room partitions banquet hall panels are hanging on ceiling tracks to form a uniform wall system that provides excellent STC rating of 35 to 50.
Base board weight (kg / m2) Sound insulation coefficient (db) Frame material Top / bottom stretch range (mm) Separation size (mm) (Min / max) width (min / max) height thickness.
Melamine board 24 24 32 aluminum 22.5 500-1230 2000-4200 65.
Melamine board 32 40 aluminum 22.5 500-1231 2000-6000 85.
Melamine board 38 50 aluminum 22.5 500-1232 2000-9000 100.
Folding room partitions technical details:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Our Service
1. Custom size as your request.
2. MOQ is 20 sqm for banquet partition.
3. Small sample of banquet hall room partition is available.
4. Online service by email or whatsapp.
5. OEM and ODM are available.
Folding room partitions features:
1. Hanging on Ceiling: No track on the floor. The track is installed on the ceiling.
2. Easy to collect: Banquet hall room partitions can be hidden in a corner, not affecting the overall appearance.
3. Excellent Quality: Single roller folding room partitions piece can be rotated 360 degrees.
4. Secure and Stable: The folding door partition for banquet hall is stable and reliable.
5. Heat Insulation: With glass wool inside, banquet hall partition has good heat insulation performance.
6. Energy efficient: When large space is divided into small space, it reduce air conditioning power consumption.
7. Elegant appearance: Various finishes are available for folding room partitions, so you can match the effect of interior decoration.
8. Various application: Hotels, exhibition halls, restaurants, multi-purpose hall and so on.
Specifications
| Product Name | Folding Room Partitions |
|---|---|
| Thickness | 65 Mm(2 9/16 Inch) |
| Application | Banquet Hall,hotel |
| Feature | Sound Proofing |
| Color | Accept Customized |
| Highlight | soundproof folding partition , folding room partitions |
Product Details
| Place of Origin | Guangzhou,China |
|---|---|
| Brand Name | BUNGE |
| Certification | ISO9001 |
| Model Number | 65 mm folding room partitions |
| Packaging Details | Paper carton inside,and wooden boxes for outside. |
