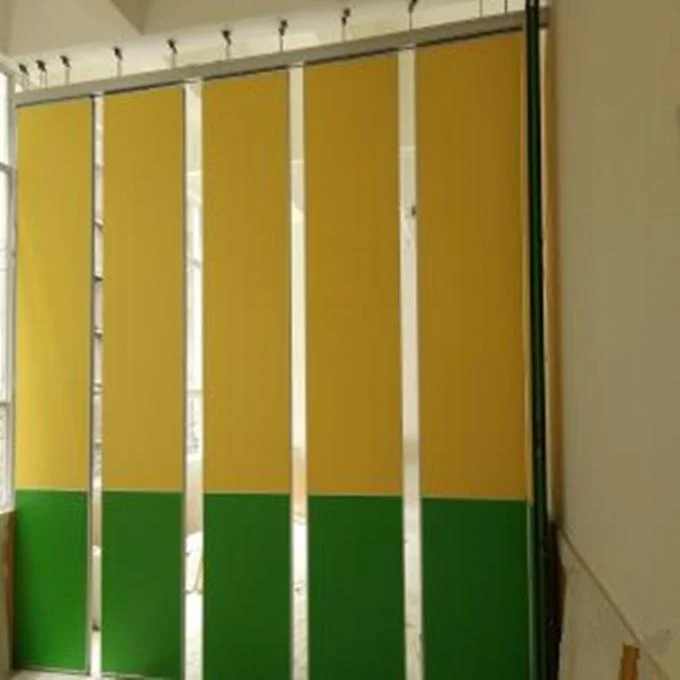

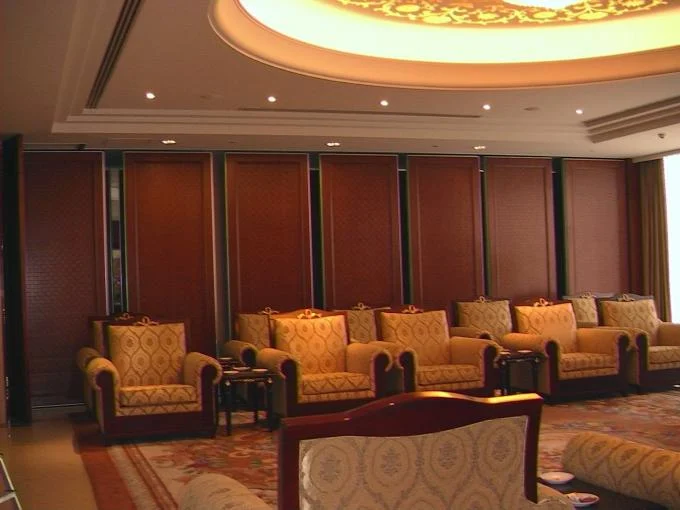

Easy Operate Soundproof Sliding Partition Walls, Multi Color Folding Room Dividers

Folding Room Divider ,Soundproof Sliding Wall Partition,Hotel Acoustic Partition Wall

Specification:

The acoustic partition wall is an individual panel partition wall system, designed to maximize noise reduction whilst manipulating interior space. Noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple and a panel assembly design that allows an acoustic break between the frame and outer layer. The panels can be supplied with almost any surface finish, including MDF board bare finish, acoustic fabric and leather, melamine.

Feature:

Divide the whole area into a number of rooms.
Provide privacy to the inmates from sight and sound.
Are fashionable in design, sizes and finishes customization.
Occupy lesser area.
Ceiling tracks, no floor track.
Sliding and folding.
Easily operate by manual in any position.


Acoustic partition wall construction:

Wall panels are of double skin construction with a robust internal aluminium frame. The panel faces are not ‘hard’ fixed to the frame and therefore when sound waves ‘hit’ one side of the wall the vibration caused is not directly transferred to the opposite face. Aluminium edge profiles may be CONCEALED, OR EXPOSED to provide a trim.

Heavy duty rubber gaskets are fitted to the panel profiles ensuring maximum acoustic sealing to all surrounding surfaces.

The highest levels of sound reduction are achieved by introducing rubberized bitumen membranes and mineral wool insulation to the core of each panel.

Technical information:





Operation:

When moving a wall panel there is a 22.5-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.

Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.

The pressure seals are extended and retracted by a single 180°turn of a removable operating handle.
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.

We can offer:

A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.
