Product Description

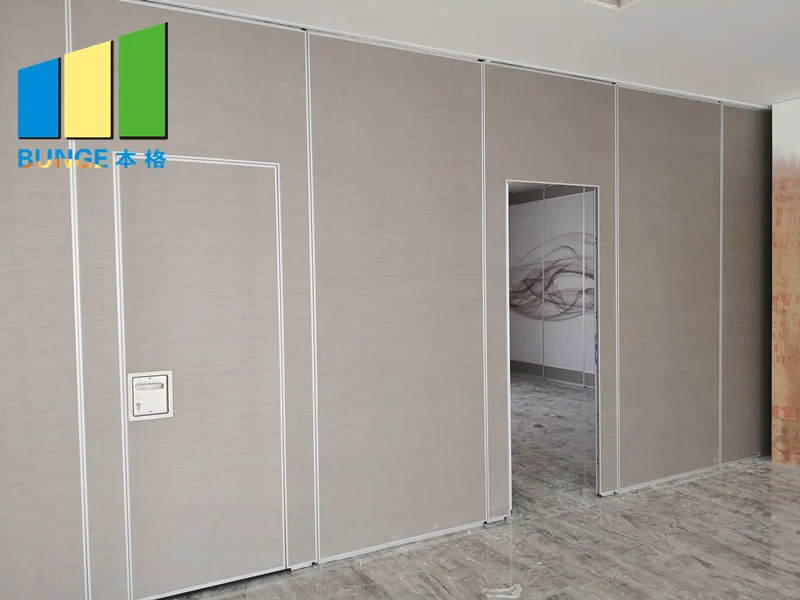

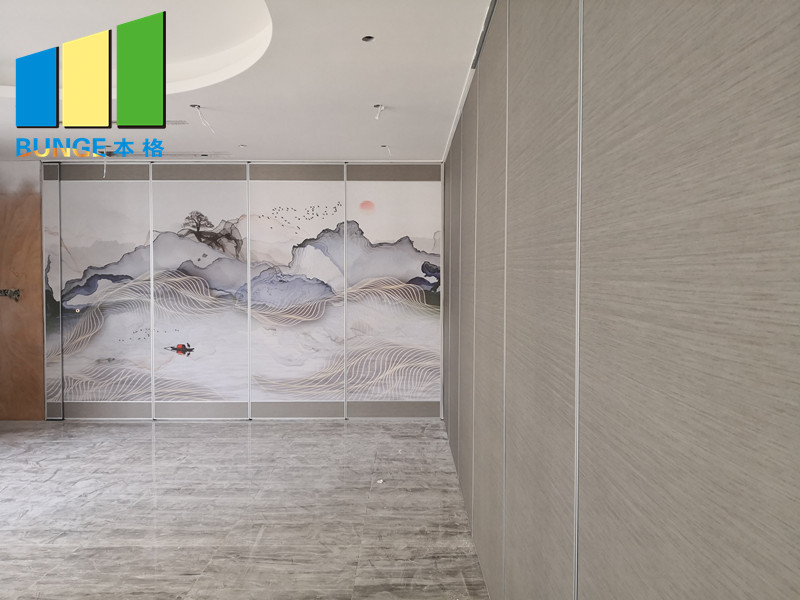

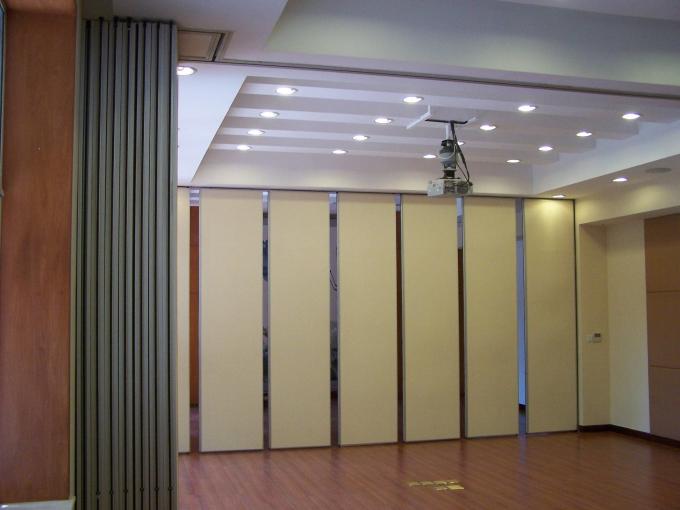

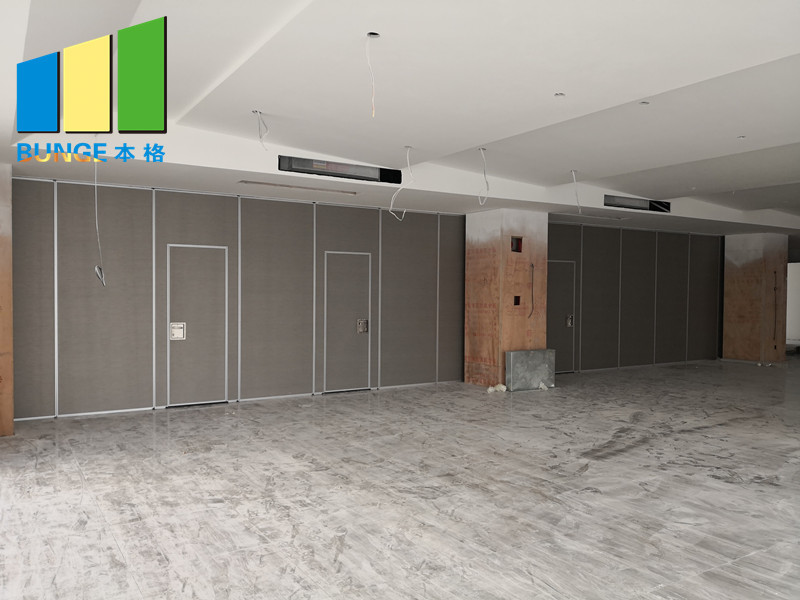

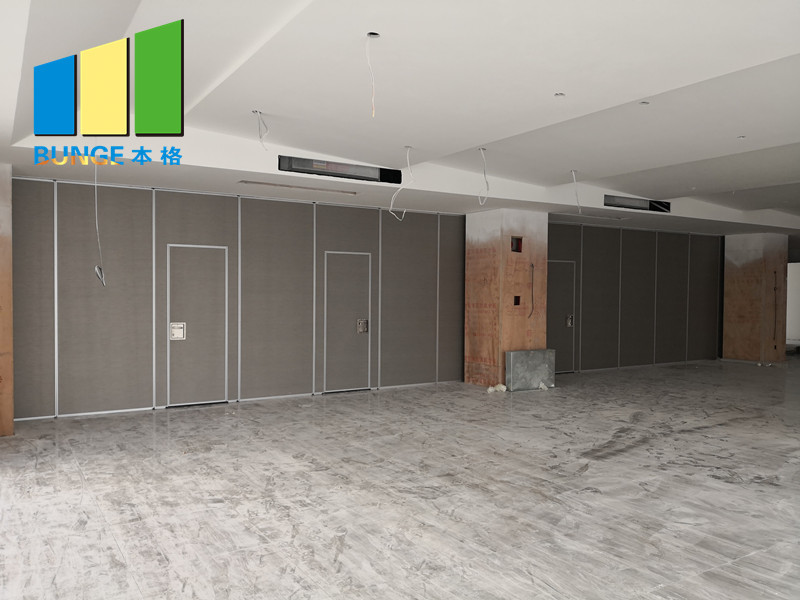

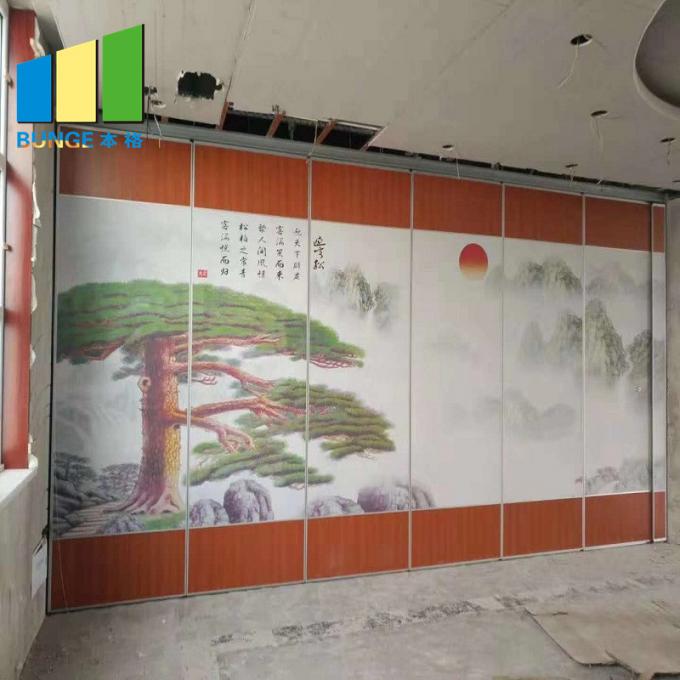

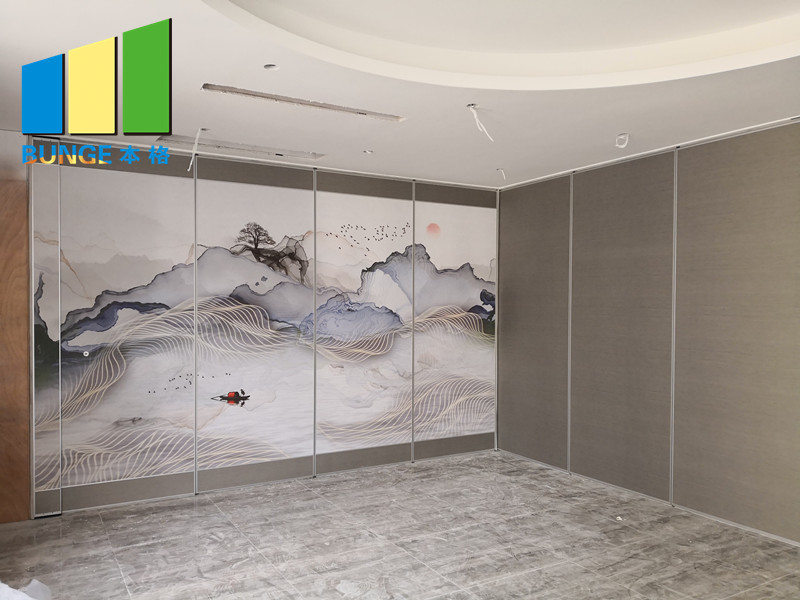

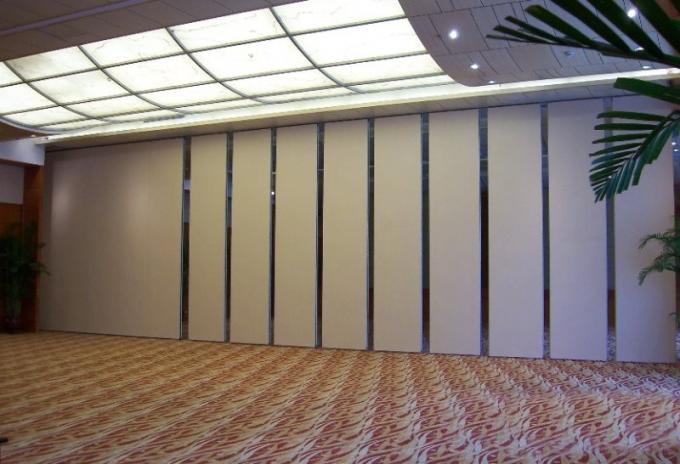

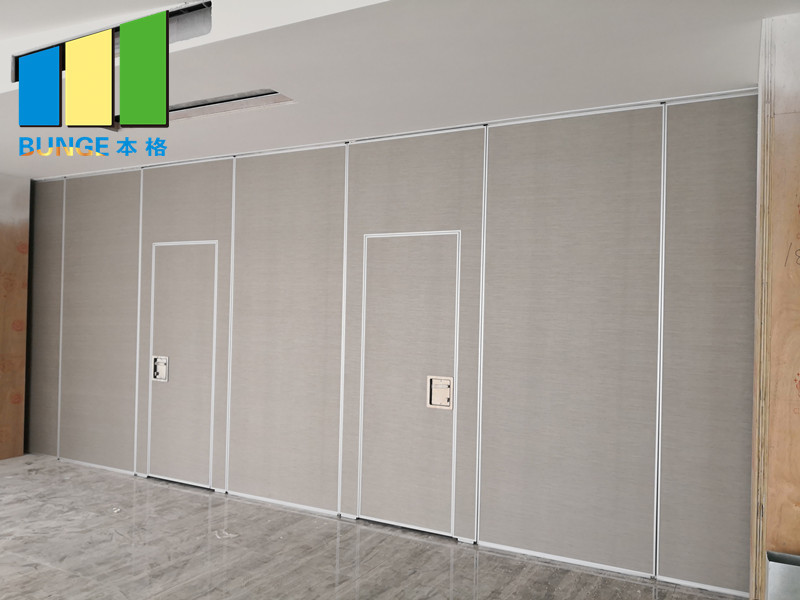

Hotel Acoustic Wooden Hanging Folding Partition Acoustic Movable Partition Walls
Movable partition walls advantages
1. Stability and safety- The new type of foaming technology assures you of reliable stability.
2. Fire retardant- Excellent fire resistance, no burning against fire, carbonization with the skin, no droplets.
3. Sound proofing. With a 95% of the closed porosity of the middle core, the partition obstructs the spreading of sound, and ensure a quiet and peaceful environment.
4. Insulation value- Keep warming and heat insulation, which has excellent cold-resistance and heat-insulation performance to reduce the cost of heating and refrigeration.
5. Light – The board adopts the micropore foaming technology, and reduce the weight afford and installation budget a lot, and also can be easily moving.
6. Decoration on both sides- Choose any patterns on both sides of AEP, and make the partition much gorgeous and fabulous.
7.Flexible Uses – Useful in many applications – conference rooms, exhibition centers, restaurants, schools, churches, retail shops, or factories, etc.
Movable partition walls details
| Panel Suspension: | Top hunge system without the need for a floor track. |
| Panel Width: | Each panel 600mm-1200mm. |
| Track: | Aluminum OR Steel Track |
| Roller on panel: | Single or double roller. |
| Panel Frames: | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals: | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module: | 700mm – 1200mm maximum. |
| Panel stacking: | Numerous panel stacking options for complete flexibility. |
| Panel face: | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes: |
Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard. |
Movable partition walls technical information
| TYPE | 65 | 85 | 100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document ‘M’disabled doors-optional | |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
Specifications
| Product Name | Movable Partition Walls |
|---|---|
| Package | Pallet And Carton |
| Sample | Free |
| HS Code | 94031000 |
| Feature | Sound Proofing And Acoustic |
| Structure | Hanging System |
| Highlight | movable partitions systems , acoustic movable walls |
Product Details
| Place of Origin | Guangzhou,China |
|---|---|
| Brand Name | BUNGE |
| Certification | ASTM E90 |
| Model Number | 65 mm movable partition walls |
| Packaging Details | Paper Carton, outside with wooden boxes. |
