Name: Durable Acoustic Room Dividers, Banquet Hall Sound Proofing Partitions
Brand: EBUNGE

Product Description

Banquet Hall Sound Proofing Partitions Acoustic Conference Room Dividers

Details of Acoustic Room Dividers

1) When moving a acoustic room dividers wall panel, there is a 20-25mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.

2) Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.

3) The pressure seals are extend and retracted by a single 180 degree turn of removable operating handle.

4) Final Closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.

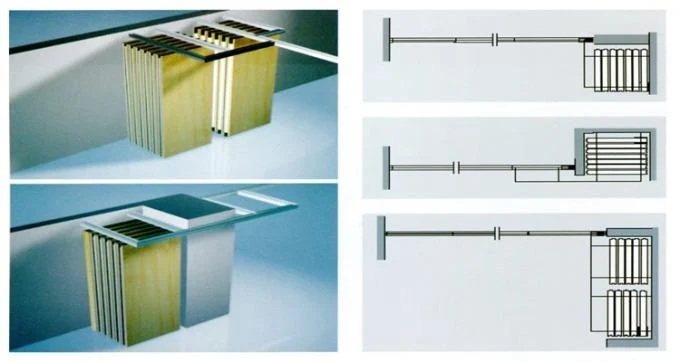

5)In their stacked position, the panel form compact package and can be accommodated in the smallest of spaces depending on the room situation. The low weight of the panel and the associated structural advantages are particularly noticeable here. The standard stack or parkingtrack systems offer convenient operability with a minimum of noise from the individual panels as they slide into position.

Durable Acoustic Room Dividers , Banquet Hall Sound Proofing Partitions 0

Specifications of Sound Proof Partitions System

Model	BG-65 series	BG-85 series	BG-100 series	BG-high series
Suspension system	Aluminum hanging	Aluminum hanging	Aluminum hanging	Steel hanging
Basic thickness	65mm	85mm	100mm	100mm
Total thickness	65/75/85/95mm	80/90/100/110mm	100/120/130mm	100/120/130mm
Max height	Up to 3800mm	Up to 4500mm	Up to 6500mm	Up to 12000mm
Width	600-1230mm	600-1230mm	800-1230mm	800-1230mm
Floor/ceiling sealing strength	Telescopic aluminum tube with rubber strip
Side walls sealing strength	Double seal tape
Sound insulation level	26dB-30dB	28dB-34dB	32-40dB	32-48dB
Panel structure	Aluminum frame with wooden keel		Aluminum frame with steel keel
Panel density	22-28kg/sqm.	24-32kg/sqm.	32-50kg/sqm.	/
Surface material	Melamine laminate/fabric/PU leather/wallpaper/veneer/customized

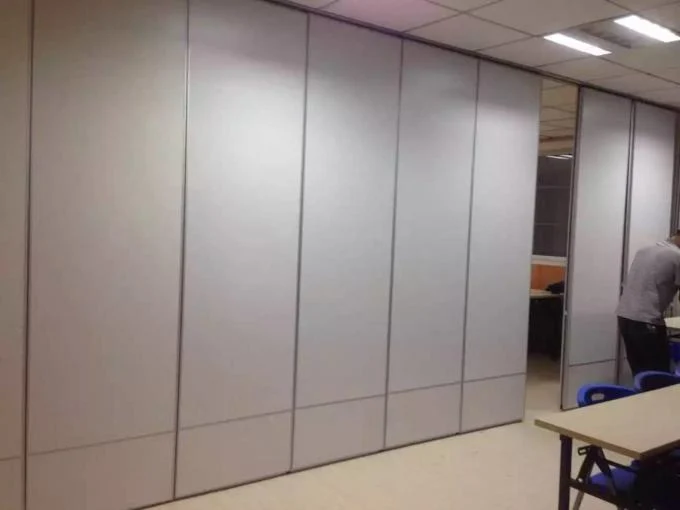

Durable Acoustic Room Dividers , Banquet Hall Sound Proofing Partitions 1

Features of Acoustic Room Dividers

1.Hanging on ceiling.The floor without a track, just put the rail mounted on the ceiling.

2.Excellent Quality.Each pieces of partition can turn around 360 degree.

3.Stable and secure.After partition is stable and reliable, and is not easy to swing.

4.Energy efficient.The large space divided into a small space, in order to reduce air conditioning power consumption;

5.Heatproof&fireproof.Good heat insulation performance,Adopt effective fire prevention materials.

6.Elegant appearance.Surface any adornment, can unite with indoor adornment effect.

7.Easy to collect.Can be hidden in the special coffer, does not affect the overall appearance.

8.Various applications.Hotels,exhubition halls,restaurants,multi-functional rooms etc.

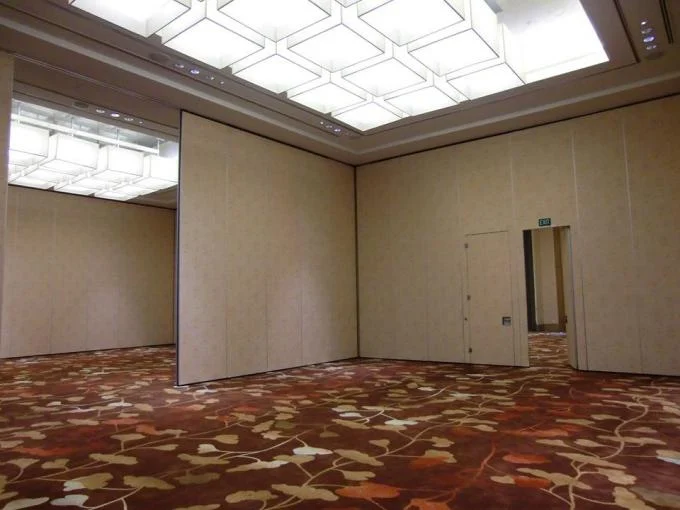

Durable Acoustic Room Dividers , Banquet Hall Sound Proofing Partitions 2

Specifications

Open Style	Sliding
Product Name	Acoustic Room Dividers
Feature	Sound Proofing
Size	85 Mm
Color	Accept Customized
Application	Banquet Hall,office,function Room
Panel Width	500 Mm--1230 Mm
Door Material	Melamine Board
Surface	Melamine,leather,fabric,plywood
Position	Interior
Width	85 Mm(3 1/4 Inch)
Highlight	conference room dividers , banquet hall room dividers

Product Details

Place of Origin	Guangdong
Brand Name	BANGE
Certification	ISO9001
Model Number	85 mm acoustic room dividers
Packaging Details	Carton package, MDF batten on four section sides , foam board on both front face.
