Product Description

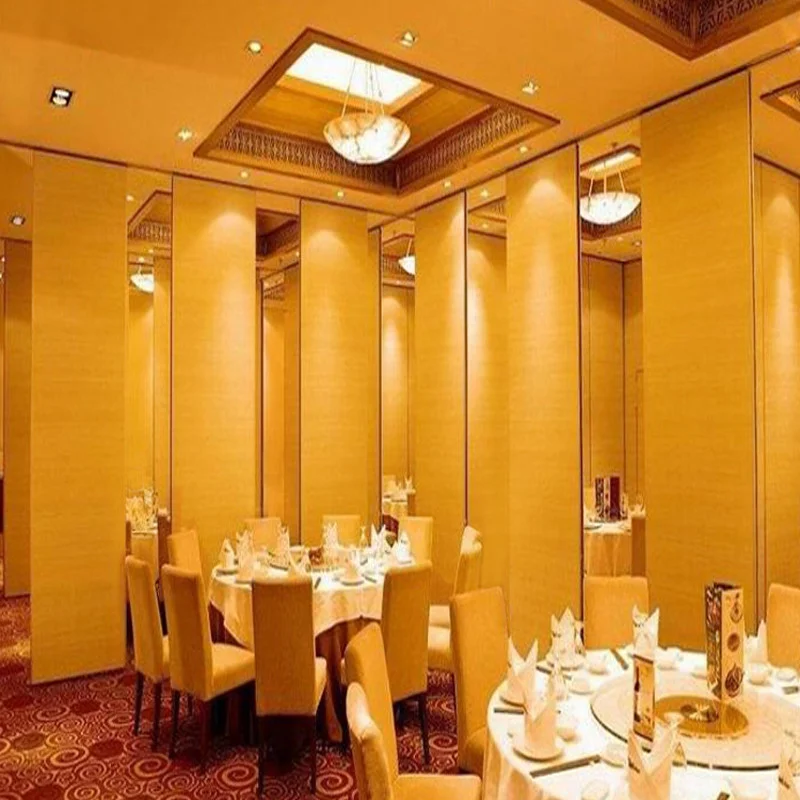

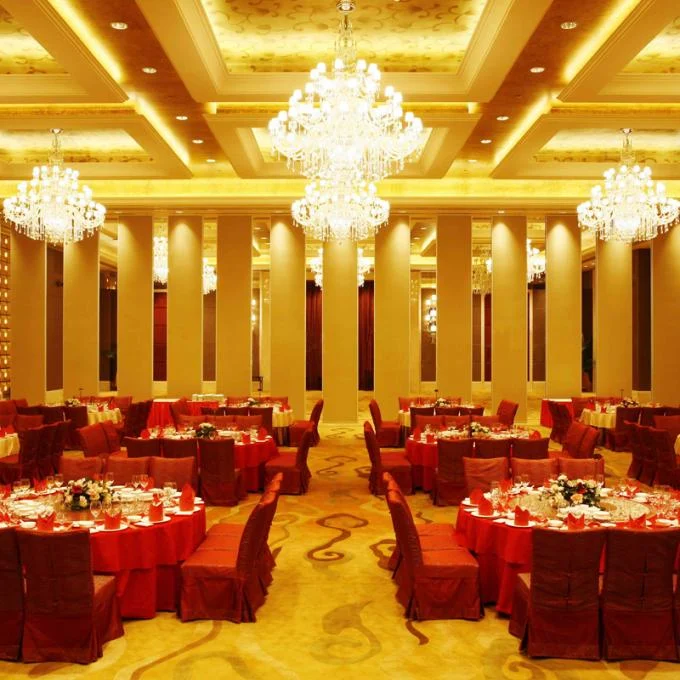

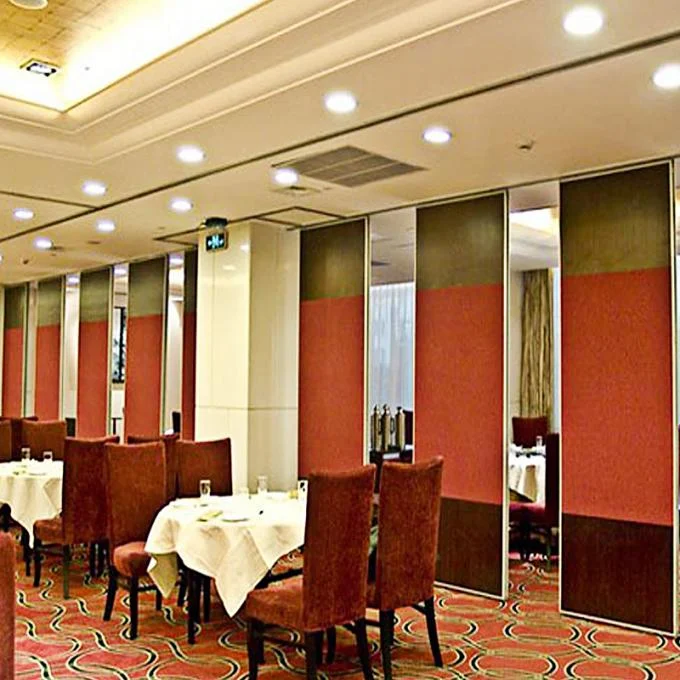

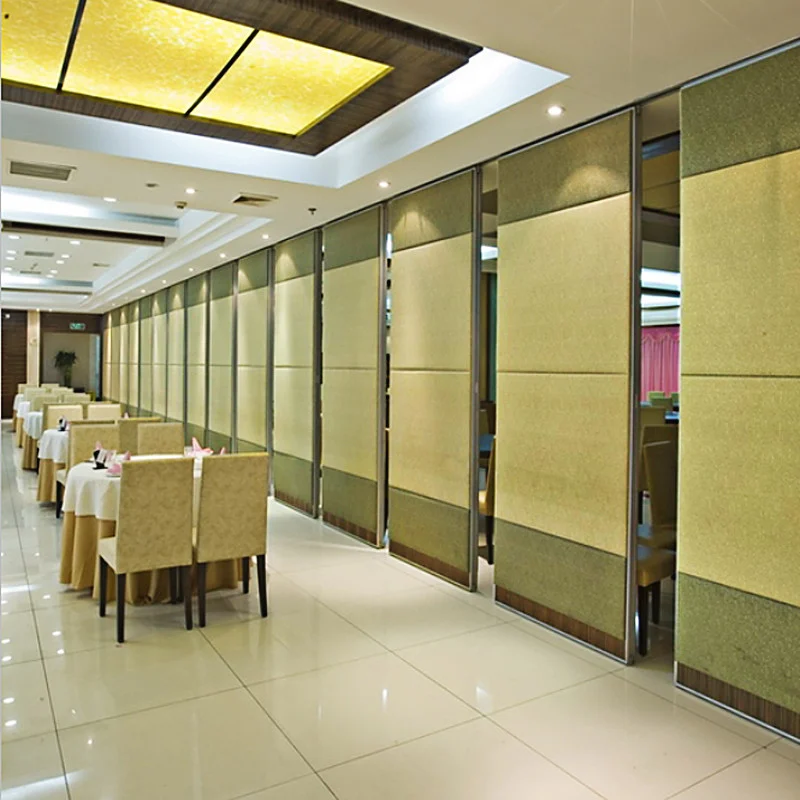

Decorative Sliding Door Folding Partition Wall
Description:
Our movable and operable partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system.
Freature:
Top hung system without the need for a floor track.
The partition wall panel is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.
Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.
The operable partition finished panel is hanging on the aluminum track, assembled with muti direction wheels.
We can add single or double doors on the movable partition wall panels for entering convenience.
Technical information:
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 – 1200mm 1′ 5/8″ — 4′ |
500 – 1200mm 1′ 5/8″ — 4′ |
500 – 1200mm 1′ 5/8″ — 4′ |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Operation:
When moving a wall panel there is a 20-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel by extending pressure seals. The pressure seals are extended and retracted by a single 180 turn of a removable operating handle.
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel.This action simultaneously extends the top and bottom seals.
Packing and shipping:
(1) Inside packing:
Packed with plastic protective film to protect each piece.
(2) Carton Packing:
a. Each pcs pack in one plastic bag.
b. Numbers of quantity put in one carton.
(3) Wood Pallet packing:
a. Bundles or cartons packing.
b. Numbers of bundles or cartons laden on one wood pallet.
Loading and delivery details
Safe shipping with shipping marks for easy recognition.
Specifications
| Service | OEM Service |
|---|---|
| Metal Type | Aluminium |
| Function | Soundproof |
| Height | 4 M |
| Width | 500-1200 Mm |
| Panel Type | Melamine |
| Color | Multi Color |
| Thickness | 65 Mm |
| Open Style | Folding |
| Application | Banquet Hall, Hotel |
| Highlight | acoustic folding partition , soundproof folding partition |
Product Details
| Place of Origin | China,Guangzhou |
|---|---|
| Brand Name | BUNGE |
| Certification | ISO9001 |
| Model Number | Series 65 mm folding partition walls |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. |
