Product Description
Dance Studio Collapsible Soundproof Folding Sliding Partition Walls for Function Hall
Sliding partition walls features:
1. No floor tracks, will not damage the carpet or floor at project site.
2. Stable and safe, not easy to swing.
3. Sound proofing, can reach 55db.
4. Heat insulation, reduce air conditioning power consumption in a room.
5. Beautiful and generous, different kinds of finishes to choose.
6. Easy operation, 1 person can finish the whole operation.
7. Widely used in hotels, restaurants, conference rooms, exhibition halls, clubs, dance studios, training rooms.

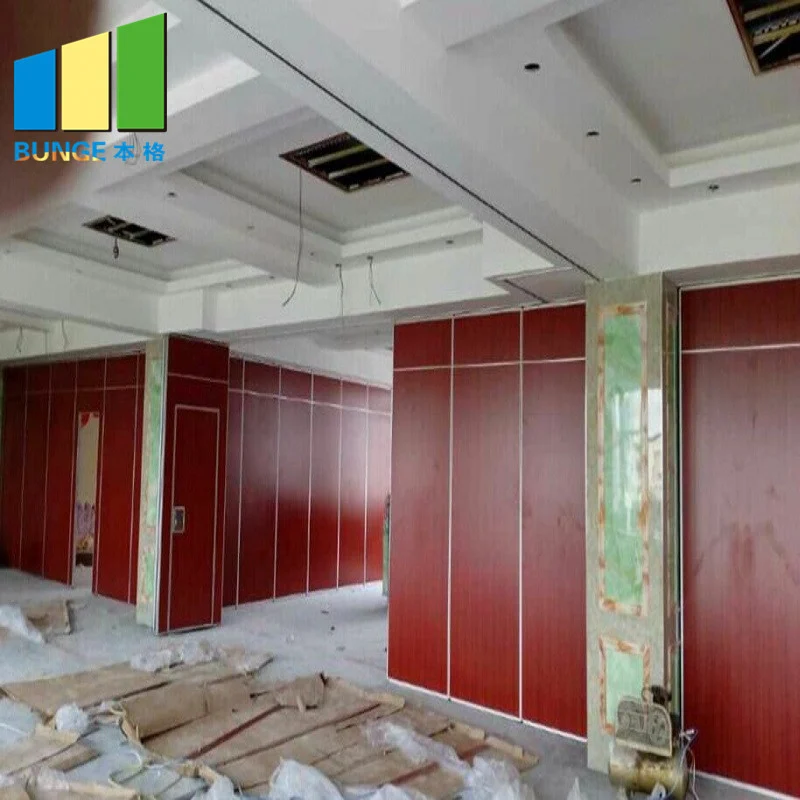

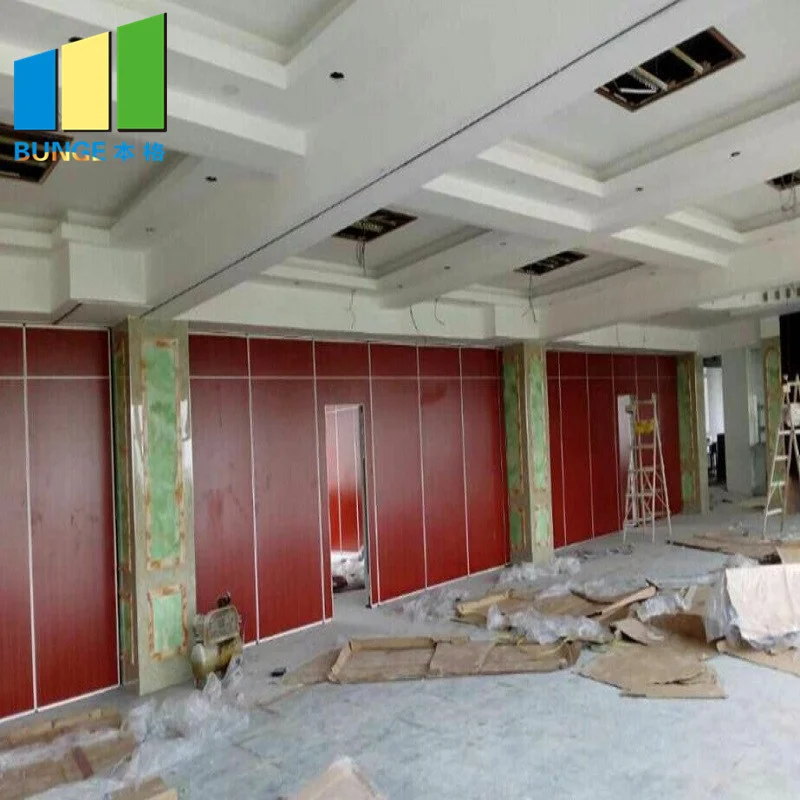

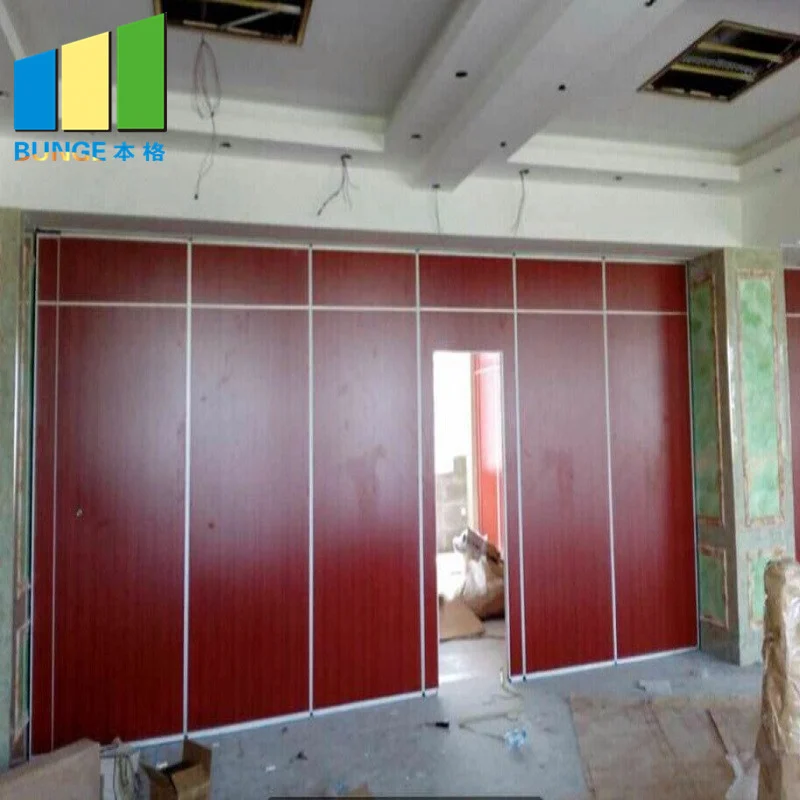

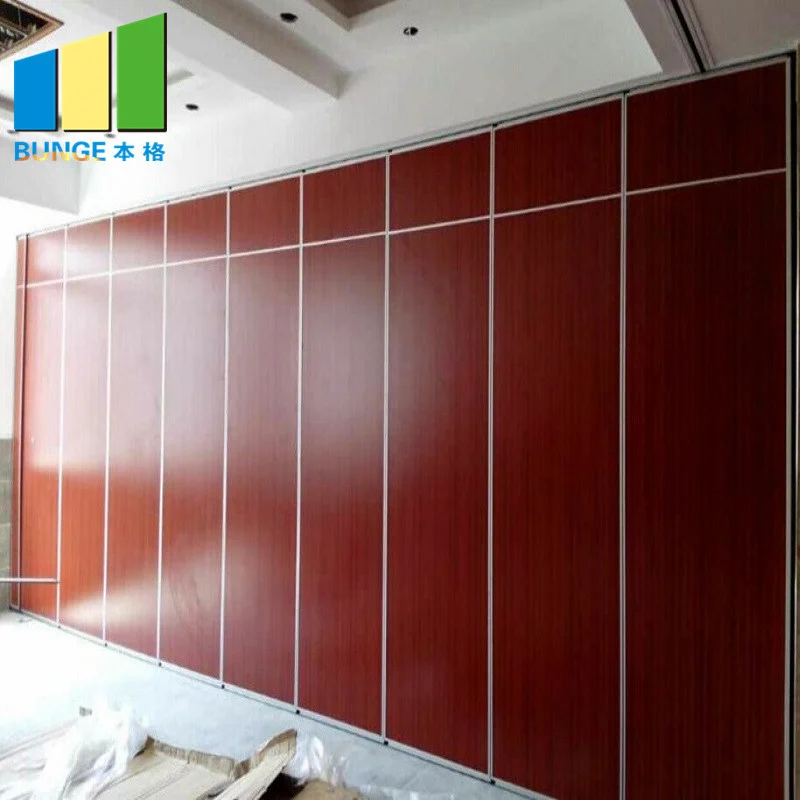

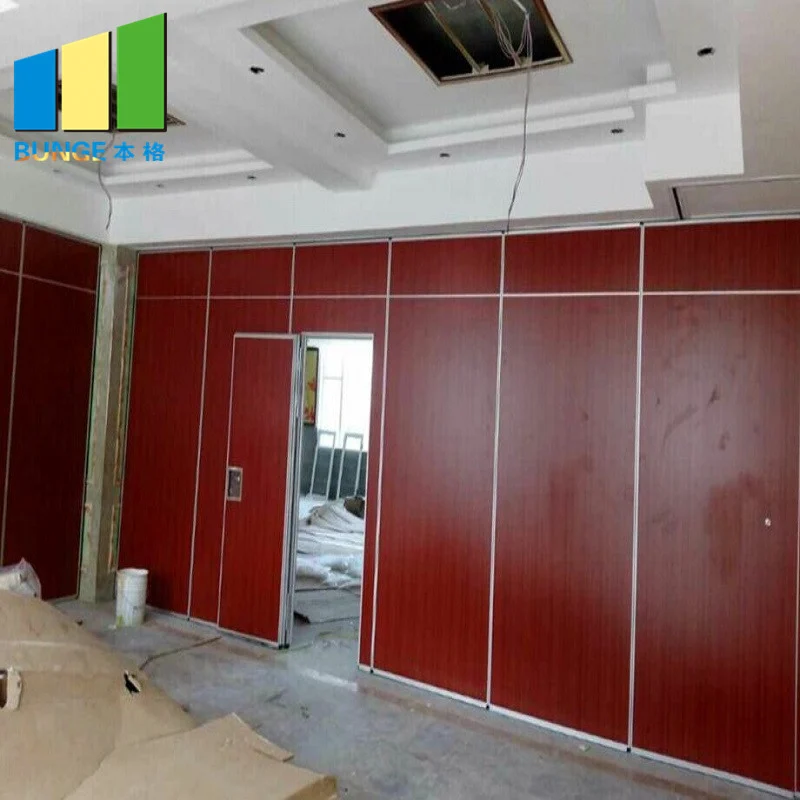

Finished Project
In September,2018, we finished a sliding partition walls project in Uganda. Totally 7 sets of wall, around 238 square meters.
This project is a little different, the client chose 5 different colors as it is for a school classroom. They wanted the environment more colorful. The surface is also melamine, the biggest features is that there are more than 60 colors to choose and very easy to clean. We also sent our engineer Mr.Zeng to supervise the installation.
Thanks for the trust from the client. In May,2019, the client also contacted us for the sliding partition walls for function hall orders. The same size, same surface and same colors, because they will use them in the same school, just the different floor.
Everything goes well and the client felt satisfied with our sliding partition walls system and happy to cooperate with BUNGE Company.
Technical Information
| Model | BG65 | BG85 | BG100 | Ultra-high System |
| Suspension System | Hanging System, with ceiling rails | |||
| Partition Panel Basic Thickness | 65mm | 85mm | 100mm | 100 mm |
| Max Height | Max 4200 mm | Max 5500 mm | Max 7000 mm | Max 15000 mm |
| Width | 800 -1230mm | |||
|
Floor/ceiling Sealing strength |
Telescopic aluminum tube with rubber strip | |||
|
Side Walls Sealing Strength |
Double seal tape | |||
| Base Board Thickness | 9 mm | 9 mm | 12 mm | 12 mm |
| Vertical Profiles | Aluminum anodised with sealing profiles | |||
| Retractable Seals | Aluminum black with double rubber seals | |||
| Operation | Manual System, with supplied operating handle | |||
| Pass Doors | Single or Double Pass Through Door Available | |||
| Weight | Approx 22-35 kg/m² | Approx 25-40 kg/m² | Approx30-48 kg/m² | Approx38-68 kg/m² |
| Finish Options | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | |||
| Service | OEM & ODM Support | |||
| Warranty | 3 Years | |||
Our Service:
1. Provide you with the most professional technical support.
2. Give you wholesale price or agent price directly.
3. If you introduce your peers, friends, and customers, you will receive a 10% commission.
4. Provide a full system of installation and operation of HD video.
5. Arrange engineers to supervise the installation and develop the local market together.
6. If you have any interest and intend to cooperate, you can get 5 sets of samples for free.
Specifications
| Product Name | Sliding Partition Walls |
|---|---|
| Application | Function Hall Partitions |
| Feature | Sound Proofing |
| Open Style | Sliding |
| Size | Partition Walls Customized |
| Sample | Free |
| Highlight | sliding folding partition , sound proof sliding partitions |
Product Details
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO 9001 |
| Model Number | 85 mm sliding partition walls |
| Packaging Details | Paper carton, outside with wooden box. |
