Product Description
Customized movable wall folding partition walls painted different pictures
Description:
Movable partition walls are also called soundproof partition, removable partition, and track partition. The mobile partition has the characteristics of easy installation, reliability, industrial production, fire prevention and environmental protection.
Movable partitions bring great convenience to people’s work. For example, the active screen, you can fold it aside when you need it, so that the two spaces are temporarily joined together to make it bigger and convenient for temporary departmental meetings. These products use a ceiling track system that is as strong as a wall.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||

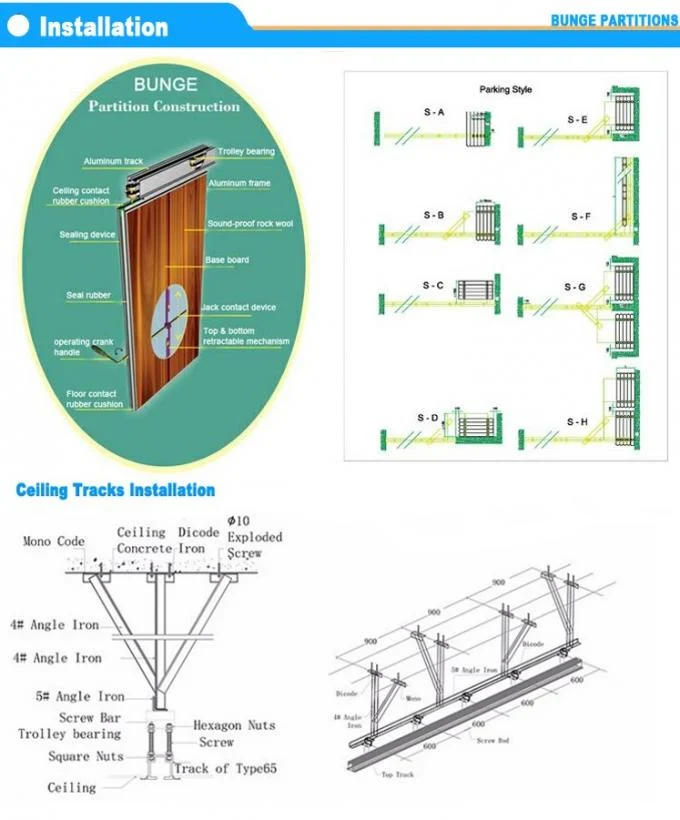

Installation:
Movable partition wall installation is not complicated.Movable partition wall details about installing,include structure,packing,ceiling.
Folding partition wall feature:
No floor rails: Top hung system without the need for a floor track.
Stable and safe: Stable and reliable after the partition, easy to swing.
Sound insulation: Sound insulation effect, the maximum sound insulation, we can offer various levels of sound reduction.
Insulation energy saving: Excellent insulation performance, according to different seating rate, the large space is divided into small space to reduce air conditioning power consumption.
Efficient fire: The use of highly efficient fire prevention materials, fire performance is good.
Retractable and flexible: Retractable top and bottom seals ensure effortless movement of panels, numerous panel stacking options for complete flexibility,only a person can complete the whole process of cutting off.

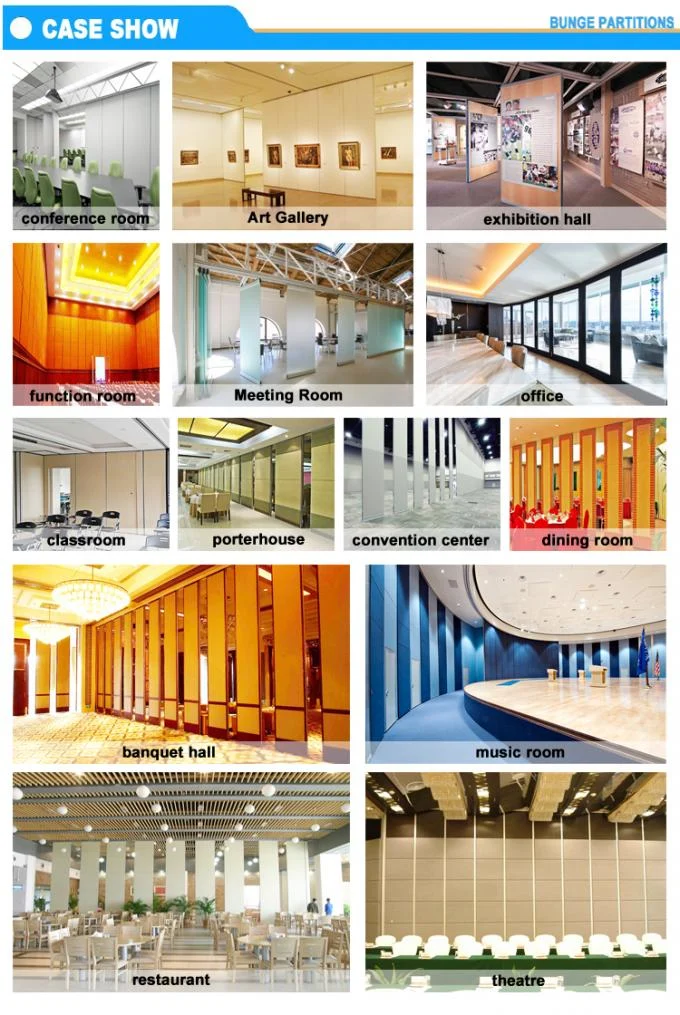

Application:
Movable partition belongs to the products in the partition series,and is widely used in high-end places such as hotels,schools,business clubs,exhibition centers,etc.Therefore,the beauty and quality of the screens of the activities are the first choice for VIP customers, and the planning of the scheme should pay more attention to the overall situation. The overall look is more atmospheric and luxurious. We pay more attention to customer perception, fully consider customer needs,and provide you with a more perfect experience.
Our service:
We design and manufacture value for money products with a one year warranty on all the outstanding ranges illustrated in this brochure.
We offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
Specifications
| Product Name | Folding Partition Walls |
|---|---|
| Metarial | Aluminum And MDF |
| Function | Space Divide |
| Application | Office,conference Room,banquet Hallï¼school |
| Service | OEM |
| Thickness | 65MM |
| Highlight | acoustic folding partition , folding room partitions |
Product Details
| Place of Origin | Guangzhou,China |
|---|---|
| Brand Name | BUNGE |
| Model Number | 65 mm folding partition walls |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. |
