Product Description
Customized hotel soundproof acoustic room dividers with ceiling track

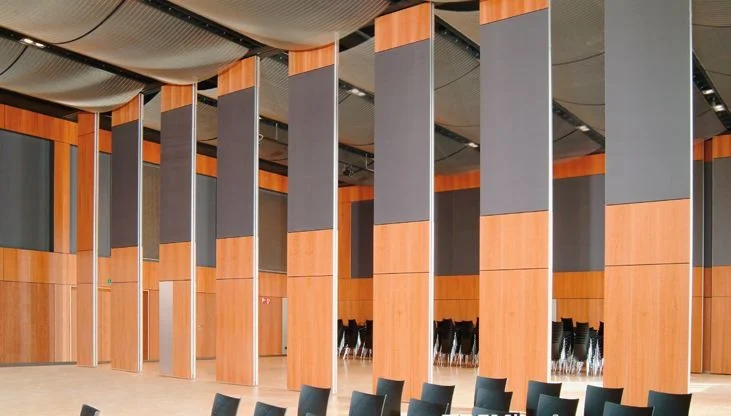

Acoustic room divider is also called movable acoustic wall. It can separate the space into several small spaces or turn several small spaces into big space according to your different need. Morever, it’s flexible sliding combination bring you a special experience.
1. Seven characters and functions:
(1) hang track on the ceiling, not the floor;
(2) heat insulation and fireproof
(3) stable and safe
(4) energy-efficientcy
(5) elegant appearance
(6) collection convenient
(7) widely used in different places
2. Usage:
Type 65 is suitable to use at 2m-3.5m height space.
Type 85 is suitable to use at 2m-6m height space.
Type 100 is suitable to use at 3m-9m height space.
3. Each panel load-bearing weight: 225kgs/ 450kgs/ 650kgs
4. Sound insulation coefficient:
Type 65 highest sound insulation coefficient can be reach is 36db.
Type 85 the highest sound insulation coefficient can be reach is 50db.
Type 100 the highest sound insulation coefficient can be reach is 53db.
5. Application: Gymnasium, huge meeting rooms, auditorium, conference center, multifunction room, hotels, banquet hall, exhibitions halls, office etc.
| Type | Frame material | Retractable range of top/bottom | Partition Dimension(mm) | basic board | ||
| Width (Min/Max) | Height (Min/Max) | Thickness | ||||
| 65 | Aluminium | 22.5mm | 500~1230 | 2000~4200 | 65 | MDF board melamine board hard/soft fabric finish hard/soft leather finish acoustic board |
| 80 | 500~1230 | 2000~6000 | 85 | |||
| 100 | 500~1230 | 3000~9000 |
100 |
|||
| 1.Hanging on ceiling | The floor without a track, just put the rail mounted on the ceiling |
| 2.Excellent Quality | Each pieces of partition can turn around 360 degree. |
| 3.Stable and secure | After partition is stable and reliable, and is not easy to swing |
| 4.Energy efficient | The large space divided into a small space, in order to reduce air conditioning power consumption; |
| 5.Heatproof&fireproof | Good heat insulation performance,Adopt effective fire prevention materials |
| 6.Elegant appearance | Surface any adornment, can unite with indoor adornment effect |
| 7.Easy to collect | Can be hidden in the special coffer, does not affect the overall appearance |
| 8.Various applications | Hotels,exhubition halls,restaurants,multi-functional rooms etc. |
Finishing
Melamine laminated finish is available in dozens of modern colors, which is durable and easy to clean. Another popular finish for sound proof wooden partition wall is fabric with soft foam inside.
Option
All sound proof wooden partition walls systems are available in infinite width openings on straight or curved tracks. Special cross, ‘T’ and ‘L’ junctions can also be supplied. Access door is available.
Specifications
| Type | Sliding Doors |
|---|---|
| Sample | Free |
| Material | Melamine |
| Application | Hotel,banquet Hall |
| Color | Accepted Choose |
| Feature | Sound Proofing |
| Door Material | Melamine Board |
| Panel Width | 500 Mm--1220 Mm |
| Product Name | Acoustic Room Dividers |
| Position | Interior |
| Open Style | Sliding |
| Highlight | conference room dividers , sound proof room divider |
Product Details
| Place of Origin | Guangdong |
|---|---|
| Brand Name | BANGE |
| Certification | ISO9001 |
| Model Number | 85 mm acoustic room dividers |
| Packaging Details | Carton package, MDF batten on four section sides , foam board on both front face. |
