Custom Made Folding Room Divider Operable Wall Soundproof Partition Wall

High quality Custom Made Folding Room Divider Operable Wall Soundproof Partition Wall from China, China's leading product market Folding Soundproof Partition Wall product, with strict quality control 125mm Soundproof Partition Wall factories, producing high quality ISO 9001 Movable Partition Walls Products.

Request A Quote

Send Your Project Details

Product Description

Custom Made Folding Room Divider Operable Wall Soundproof Partition Wall



1.Details


1)Aluminium movable partition wall has interlocking male / female trapezoidal vertical aluminum profiles, for soundproof connection between elements.

2)To ensure aluminum movable partition wall additional friction connection, shall be integrated with a magnetic strip.

3)Aluminium movable partition wall is an easy element adjustment after installation.

4)Aluminium movable partition wall rack system shall be Extruded aluminum, maintenance-free with heavy-duty ball bearing steel rollers.

5)Aluminium movable partition wall surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.


Custom Made Folding Room Divider Operable Wall Soundproof Partition Wall 0

2.Specification

Series
BG65
BG85
BG100
Panel suspension
Top hung only
Top hung only
Top hung only
Track system
Single or twin point
Single or twin point
Single or twin point
Panel thickness
65mm
80mm / 85mm
100mm
Panel height
Up to 4000mm
Up to 6000mm
Up to 18000mm
Max height
4000mm
6000mm
18000mm
Panel width
600-1230mm
600-1230mm
600-1230mm
Frame construction
Aluminum frame
Aluminum frame
Aluminum frame
Face material
9mm
9mm / 12mm
12mm
Fire safety
Optional Class I or O
Optional Class I or O
Optional Class I or O
Vertical profiles
Aluminum anodised with sealing profiles
Aluminum anodised with sealing profiles
Aluminum anodised with sealing profiles
Retractable seals
Aluminum black with
double rubber seals
Aluminum black with double rubber seals
Aluminum black with double rubber seals
Operation of seals
Manual, with supplied
operating handle
Manual, with supplied operating handle
Manual, with supplied operating handle
Locking
Optional lock to pass doors
Optional lock to pass doors
Optional lock to pass doors
Pass doors
Single open in panel or
double open in two panel
Single open in panel or double open in two panel
Single open in panel or double open in two panel
Sound insulation
20-32dB Rw
28-36dB Rw
32-50dB Rw
Weight
Approx 22-35kg/sq M
Approx 25-40kg/sq M
Approx30-48kg/sq M





3.Finished and Accessories

Different surface use in different areas.Our main surface is MDF with Melamine, it can be used in the Classroom, Restaurant, and so on, it’s easy to maintain. Fabric and PU leather surfaces is very popular in the conference room and hotel banquet hall. In the dancing room, clients usually prefer a mirror surface. Also we can design surface based on fabric or PU leather with modern printing photos.If clients prefer to paint color on panels, we suggest MDF bare finish, it’s also very welcomed, because it can make wallpaper, painting on site.

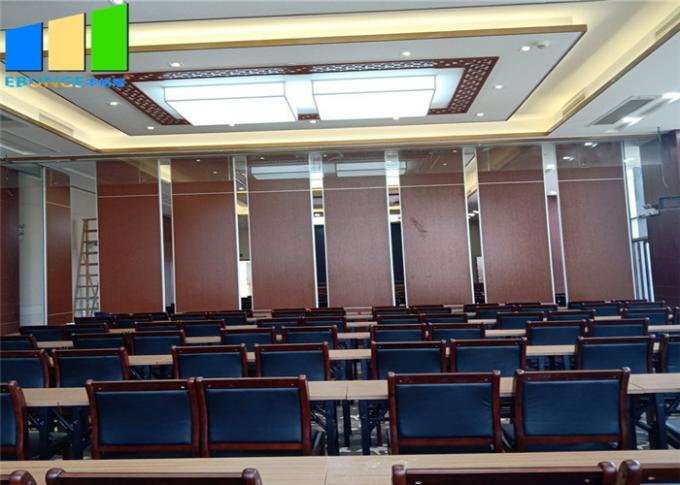

Custom Made Folding Room Divider Operable Wall Soundproof Partition Wall 1

4.About Us
Guangdong Bunge Building Material Industrial Co., Ltd is a professional company in manufacturing movable partitions.It also
artistically designs and carefully does research and development(R&D).The company has adopted the advance partition technology of USA, Germany and Denmark.We have professional staffs with more than 10 years of experience in design, production and installation.
Our product(movable partition)are widely used in the hotel,banquet hall,meeting room,exhibition hall,conference room,International convention center,KTV,upscale restaurants,office building,school,hospital and others.
Nowadays,the modern trend in building needs more flexibility and convenience to use the space of their rooms.Most of the building designers like to prepare open plan space,sound proof effect,and easy to operate.The solution of the designers need is the movable partition.
Bunge movable partition products as follow:
1.Ordinary Series:65MM,85MM;
2.High Sound Proof Series:85MM,100MM;
3.Super High Series:Steel Track System
4.Glass Series:65MM & 85MM Aluminum Frame.



Specifications

General UseCommercial Furniture,soundproof Partition Walls Are Used For Interior Decoration
TypeOffice Furniture,folding Partition
MaterialMDF,Aluminium
ColorCustomized
SizePartition Wall Customized,1220*2440mm
Thickness65mm,65~125mm
ApplicationOffice,Commercial Building And Residential House,apartment,Restaurant,etc.
StyleModern
Product NameAcoustic Partition Walls,folding Partition Wall,soundproof Partition Walls
HeightHW=3500mm~16000mm
Width750~~1200mm
FeatureSpace Saving,Conference Room Divider,Water-proof&air-proof&sound Isolation&heat Isolation,soundproof,Fireproof
AdvantageFree Of Floor Track,Professional Design Team&factory Manufacture&fashionable Outlook,Soundproof,Competitive
FunctionOffice Partition Wall,soundproof,Executive Room,Exhibition
Finishing OptionMelamine,fabric,leather,HPL,wall Paper
Frame Material6063-T6 Aluminum Alloy
HighlightFolding Soundproof Partition Wall , 125mm Soundproof Partition Wall , ISO 9001 Movable Partition Walls

Product Details

Place of OriginGuangzhou, China
Brand NameEBUNGE
CertificationISO 9001
Model Number65 mm soundproof partition door
Packaging DetailsPaper carton, outside with wooden box.
