Name: Conference Room Sliding Folding Partitions Movable Walls For Art Gallery
Brand: EBUNGE

Conference Room Sliding Folding Partitions Movable Walls For Art Gallery

High quality Conference Room Sliding Folding Partitions Movable Walls For Art Gallery from China, China's leading product market acoustic folding partition product, with strict quality control soundproof folding partition factories, producing high quality soundproof folding partition Products.

Request A Quote

Product Description

Conference Room Folding Partition Walls , Movable Partition Wall For Art Gallery

Specifications :

Technical Parameter for Partition Panel	Panel Width	500 – 1230mm
	Panel height	2000 – 6000mm
	Sound proof	36 – 42db
	Operation	Manual
	Frame	Aluminum
	Vertical profile	Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside
	Finish options	Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish
	Base options	Plywood, Gypsum, steel, MDF
	Max width	Unlimited
	Panel weight	28 – 40 kg / sq
Pass door selection	door	Single or double door
Seals	Top	Manual
Seals	bottom	Manual

Conference Room Sliding Folding Partitions Movable Walls For Art Gallery 0

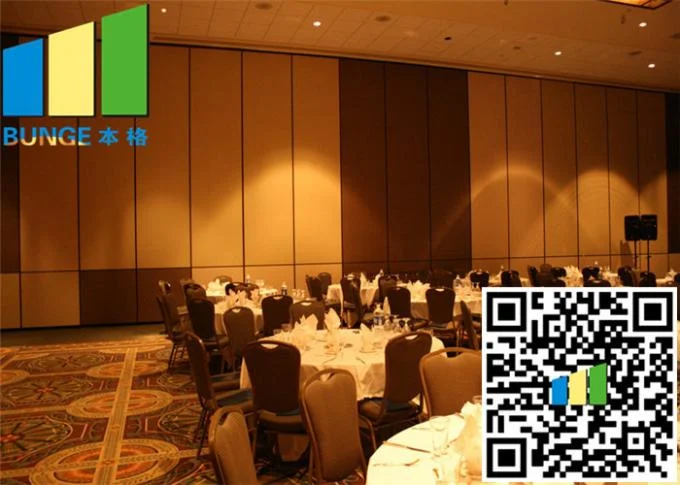

Conference Room Sliding Folding Partitions Movable Walls For Art Gallery 1

The Special Point Processing On Movable And Operable Partition System

(1).Horizontal seals

The principle of double skin construction on movable and operable partition system is applied consistently in the seal area in order to ensure maximum sound insulation . A spindle mechanism presses extendable, spring loaded, double seals against the fl oor and the ceiling track . Any irregularities in the fl ooring are offset by spring-loaded double chamber seals . The contact force of the sealing strips does not place excessive strain on screed fl oors , but does ensure that the Variflex system is sufficiently stable to prevent the panels moving , even in the event of an attempted forced entry .

Conference Room Sliding Folding Partitions Movable Walls For Art Gallery 2

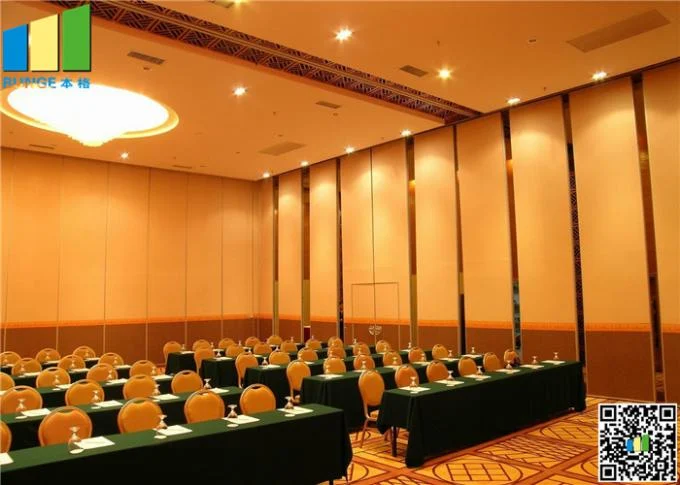

Conference Room Sliding Folding Partitions Movable Walls For Art Gallery 3

(2).Corner seals

Variflex resolves the technical issue of corner seals with specially designed, corner pieces that also reinforce the stability and sound insulation properties of movable and operable partition system

(3)Magnetic strip

The individual panels are centred via the magnetic strips to guarantee sound positive locking and sealing.

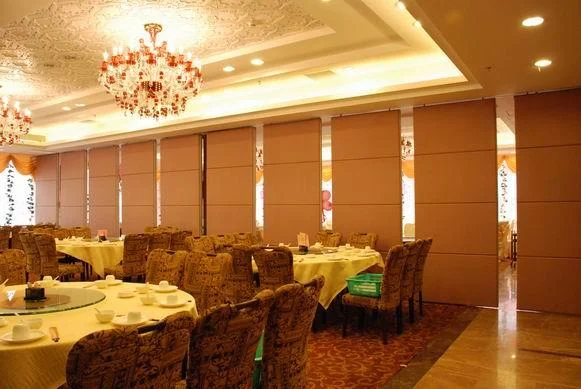

Conference Room Sliding Folding Partitions Movable Walls For Art Gallery 4

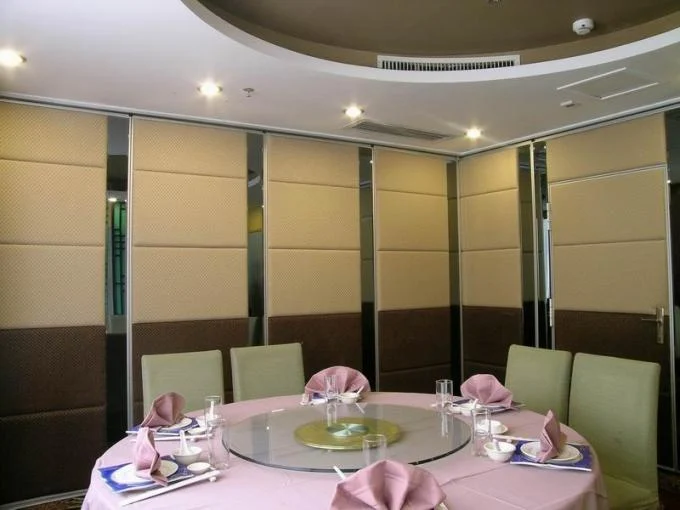

Conference Room Sliding Folding Partitions Movable Walls For Art Gallery 5

Specifications

Thickness Mm	85mm
Weight Kg/m2	28 / 43
Max Panel Height	6000mm
Track	Aluminum
Frame	Aluminum
Panel Construction / Seal	Operable
Highlight	acoustic folding partition , soundproof folding partition

Product Details

Place of Origin	China
Brand Name	BUNGE
Model Number	Type85
Packaging Details	Carton package , MDF batten on four section sides , foam board on both front face
