Conference Room Portable Tempered Sliding Glass Partition Walls

High quality Conference Room Portable Tempered Sliding Glass Partition Walls from China, China's leading product market sliding folding partition product, with strict quality control sound proof sliding partitions factories, producing high quality sound proof sliding partitions Products.

Request A Quote

Product Description

High Quality Portable Australia Standard Office Sliding Tempered Glass Partition Walls



Features:
1. 5 times harder than ordinary float glass, stronger resistance to thermal breakage than annealed or heat strengthened glass.


2. Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless to human body.


3. It withstands abrupt temperature change of 220 Centigrade.


4. Sizes are produced as per customer request. Once tempered, it can not be cut down.

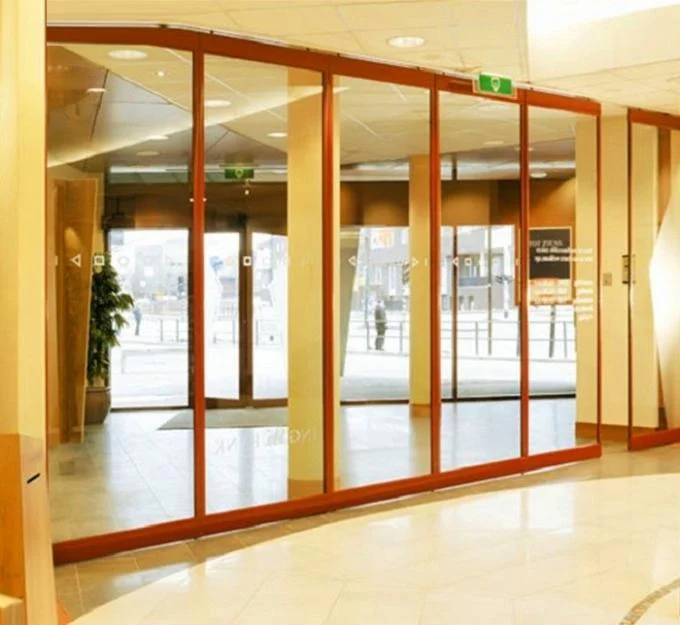

Conference Room Portable Tempered Sliding Glass Partition Walls 0

Bunge Glass Partition Systems-Technical Information

Series BG65 Glazing Glass Partition BG85 Aluminum Frame Glass Partition BG85 Sound proof Glass Partition
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 36mm 85mm 85mm
Panel height Up to 3000mm Up to 6000mm Up to 6000mm
Max height 3000mm 6000mm 6000mm
Panel width 800-1100mm 800-1100mm 800-1100mm
Frame construction Top and bottom aluminum Aluminum frame Aluminum frame
Glass thickness 10mm single glass 10mm or 12mm single glass double 10mm glass
Fire safety Optional Class O Optional Class O Optional Class O
Vertical profiles n/a n/a Aluminum anodised with sealing profiles
Retractable seals n/a n/a Aluminum black with double rubber seals
Operation of seals n/a n/a
Pass doors Fixed full height door Fixed full height door Fixed full height door
Locking Optional lock to panel Optional lock to panel Optional lock to panel
Sound insulation n/a n/a n/a
Weight Approx 30 kg/sq M Approx 32 kg/sq M Approx 50 kg/sq M

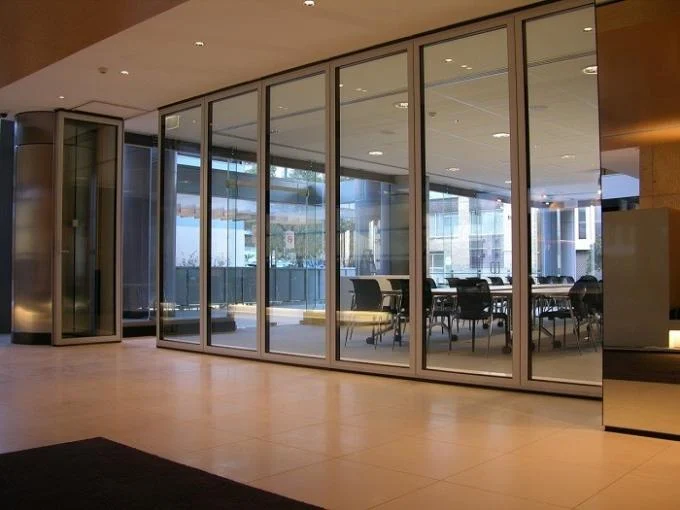

Conference Room Portable Tempered Sliding Glass Partition Walls 1



Tempered glass is a heat toughened safety glass. It has undergone a special heat treatment to increase its strength and resistance to impact. In fact, tempered glass is approximately five times more resistant than normal glass. As an example, a piece of 8mm tempered glass will be able to withstand a steel ball weighing 500g dropped from a height of 2 meters.

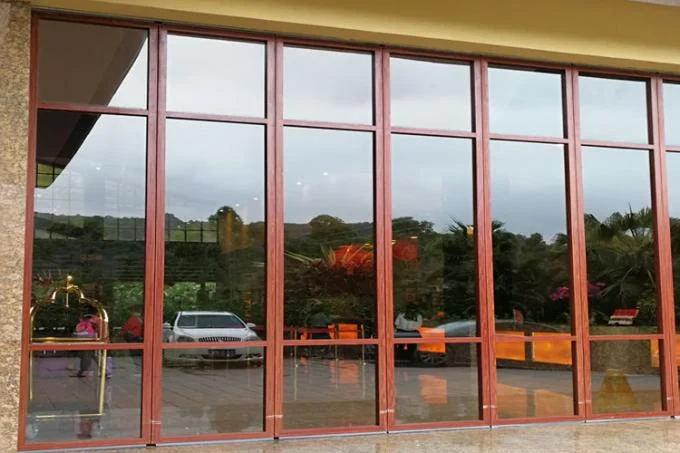

Conference Room Portable Tempered Sliding Glass Partition Walls 2



Common Applications:

1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.

2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.

3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.

4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.

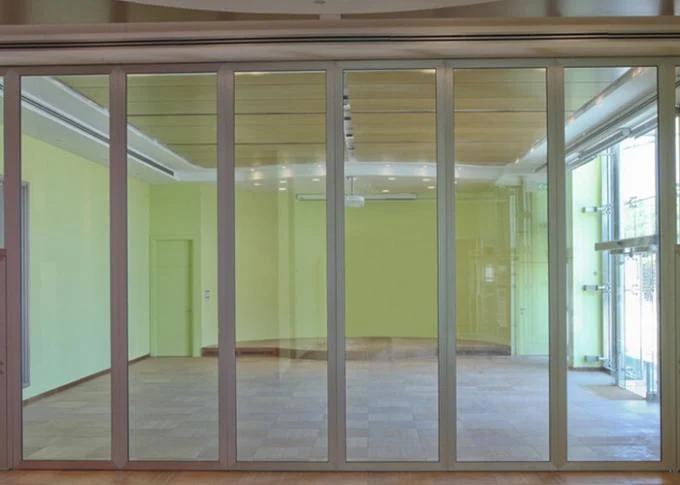

Conference Room Portable Tempered Sliding Glass Partition Walls 3

Specifications

Panel Width500 Mm--1220 Mm
MaterialMDF+Aluminum
ApplicationHotel,Banquet Hall
ColorColor Selective (Customized)
Thickness85 Mm(3 1/4 Inch)
FinishingMelamine,fabric,leather
StyleOpening
PositionInterior
ServiceOEM ODM
Product NameSliding Partition Walls
Highlightsliding folding partition , sound proof sliding partitions

Product Details

Place of OriginGuangdong
Brand NameBUNGE
CertificationISO9001
Model NumberSeries 85 mm glass partition walls
Packaging DetailsCarton package, MDF batten on four section sides , foam board on both front face.
