Product Description
Conference room and banquet hall aluminium frame movable partition walls
Product Description
The Bunge Movable Partition Walls is aluminum-framed operable partition is the most versatile operable wall constructed today. Partitions are a series of flat panels, approximately range from 600mm(23″) to 1200mm(47″) wide. They have a wide array of features and options to meet most design and budget requirements. Models are acoustically rated, available in 65mm(2.6″) ,85mm(3.2″)or 100mm(4″) thick models, and in single, pair hinged configurations.
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 600-1230mm | ||
| Face material | 9mm | 9mm | 12mm |
| Sound insulation | 20-32db RW | 30-38db RW | 35-45db RW |
| Weight | 20-30 kg/sq M | 22-35kg/sq M | 28-40kg/sq M |
| Track system | Single or two point | ||
| Frame construction | Aluminum frame | ||
| Finish materials | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
||

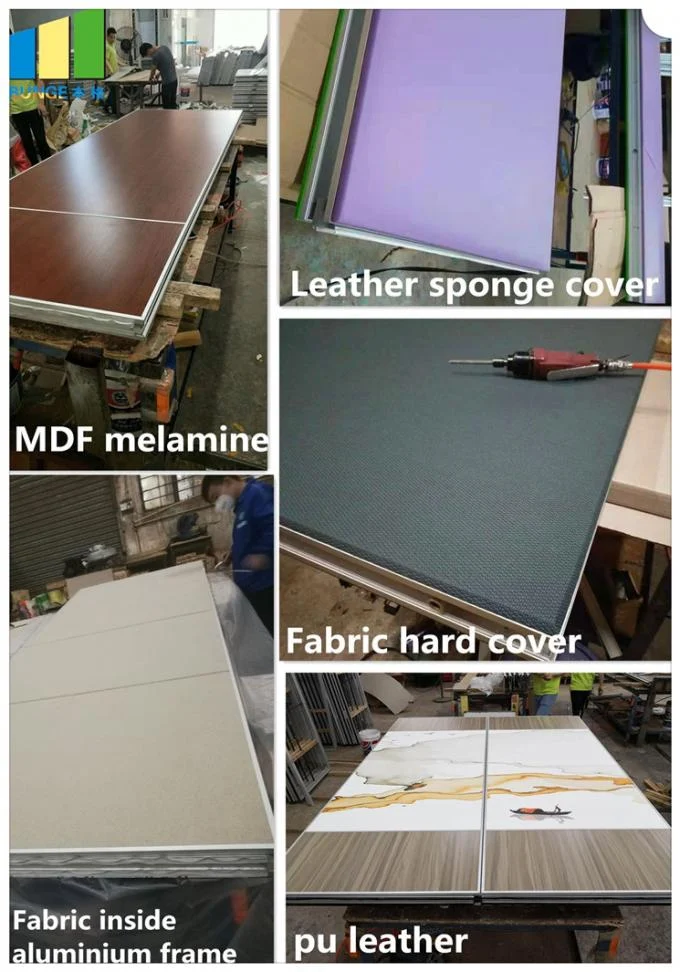

Finish
Packing

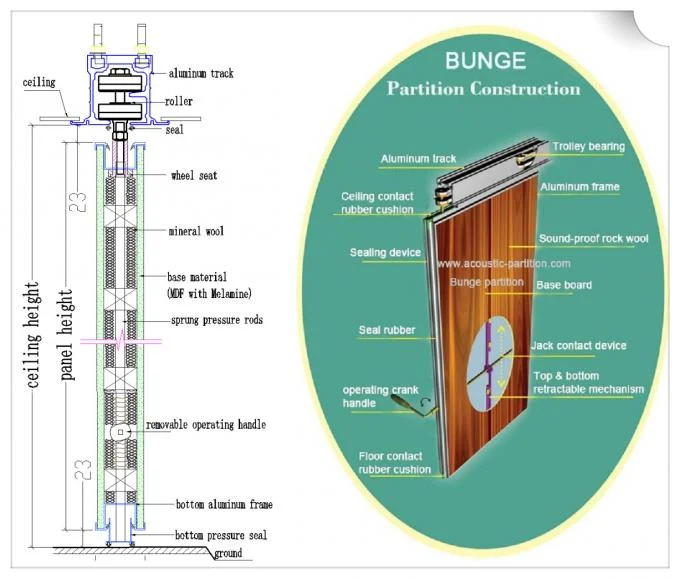

Components of Office Partition Walls:
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the office partition walls with wheels.
Wheels/Rollers: It is the carrier for the office partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,”L”, “T”, “+”types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the office partition walls.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g
| Modernized Soundproof Movable partition features | |
| 1.Hanging on ceiling | The floor without a track, just put the rail mounted on the ceiling |
| 2.Excellent Quality | Each pieces of partition can turn around 360 degree. |
| 3.Stable and secure | After partition is stable and reliable, and is not easy to swing |
| 4.Energy efficient | The large space divided into a small space, in order to reduce air conditioning power consumption; |
| 5.Heatproof&fireproof | Good heat insulation performance, Adopt effective fire prevention materials |
| 6.Elegant appearance | Surface any adornment, can unite with indoor adornment effect |
| 7.Easy to collect | Can be hidden in the special coffer, does not affect the overall appearance |

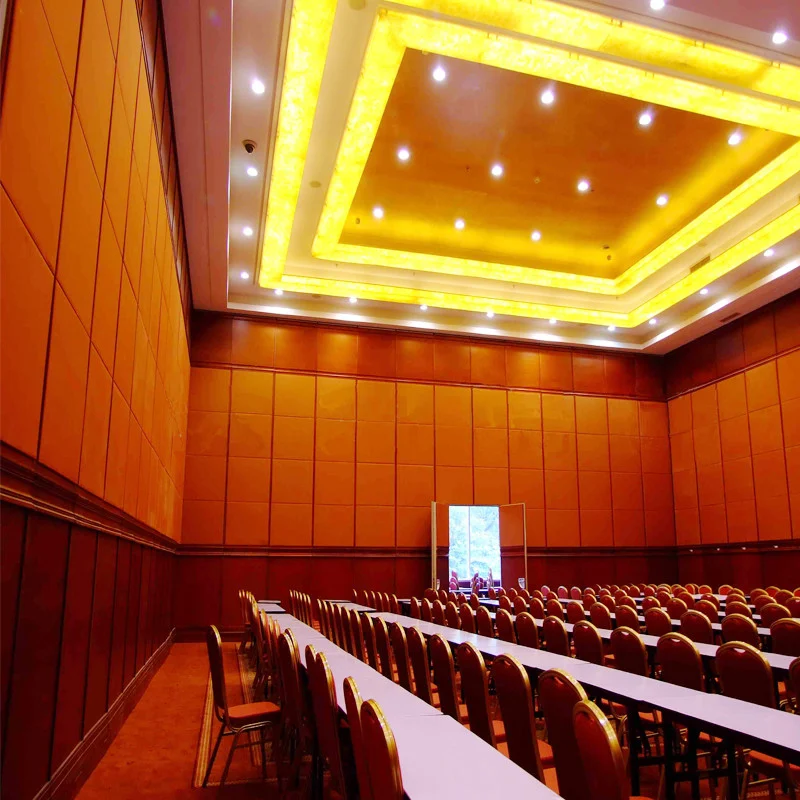

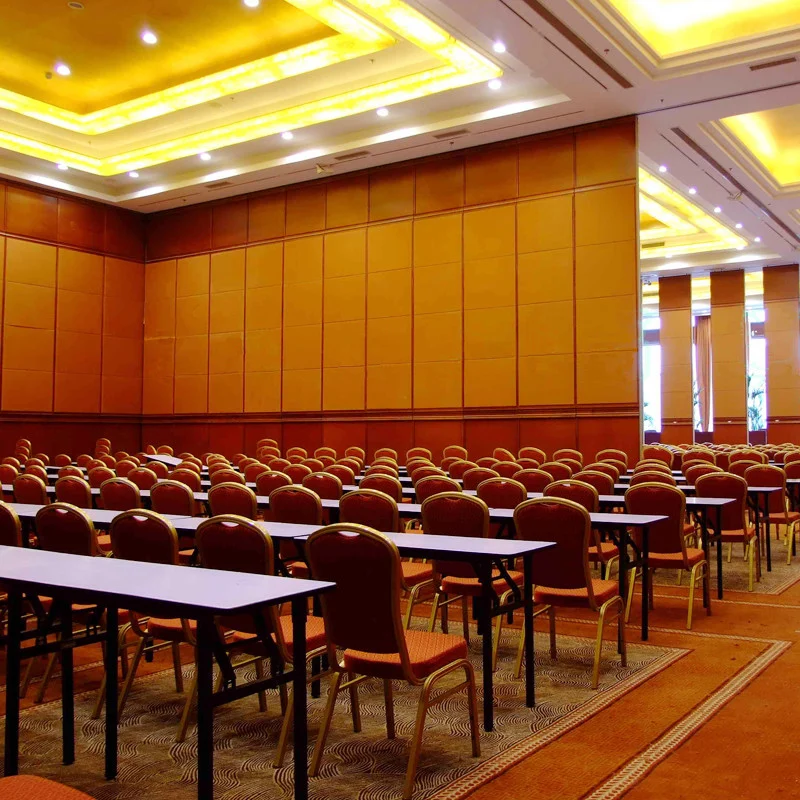

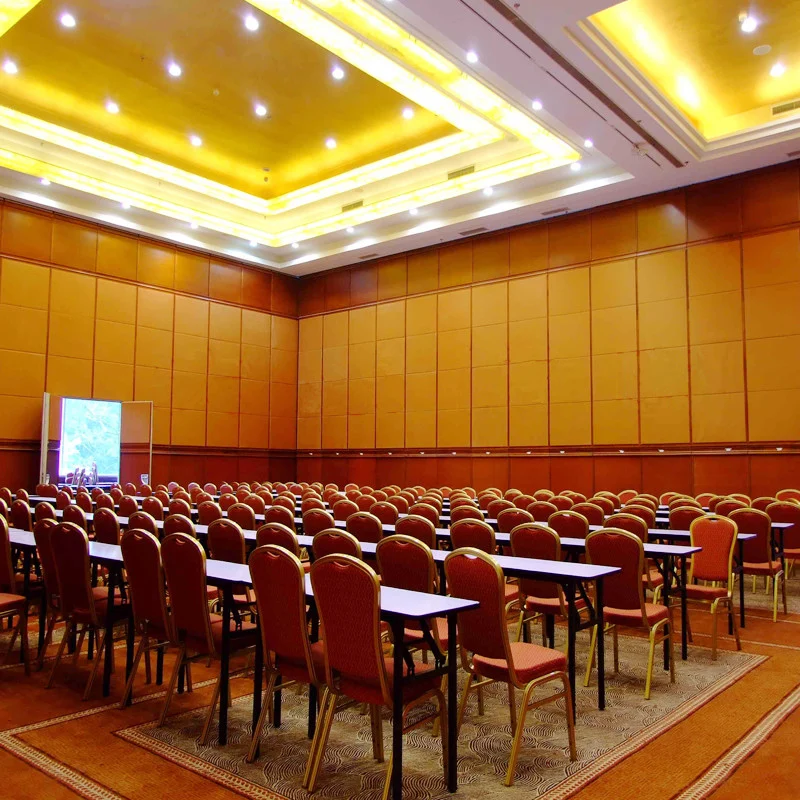

| 8.Various applications | Hotels, exhibition halls, restaurants, multi-functional rooms etc. |
Specifications
| Product Name | Movable Partition Wall |
|---|---|
| Material | Aluminium Frame+wood |
| Color | Customized |
| Size | Customized |
| Thickness | 65MM |
| Height | Max 4 Meter |
| Width | 500-1220mm |
| Application | Office,Restaurant,etc. |
| Service | OEM/ODM |
| Feature | Space Saving,Water-proof&air-proof&sound Isolation&heat Isolation |
| Finish | MDF Melamine,fabric,pu Leather,gypsum |
| Highlight | acoustic folding partition , folding room partitions |
Product Details
| Place of Origin | China (mainland) |
|---|---|
| Brand Name | EBUNGE |
| Model Number | 65 mm soundproof partition wall |
| Packaging Details | Carton package, MDF batten on four section sides, foam board on both front face. |
