Product Description

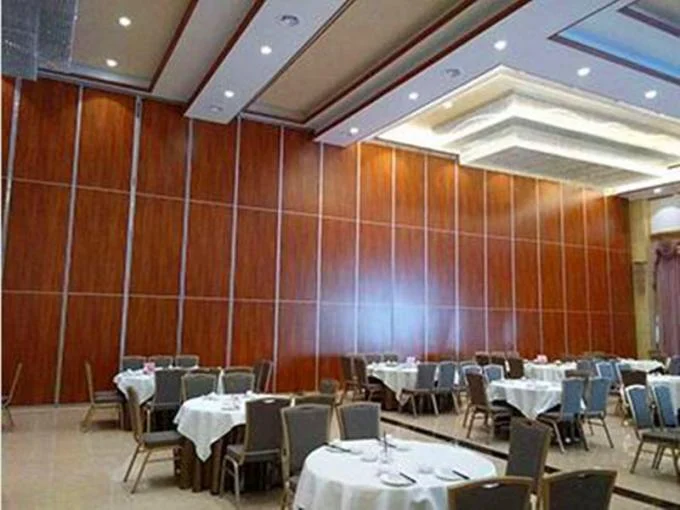

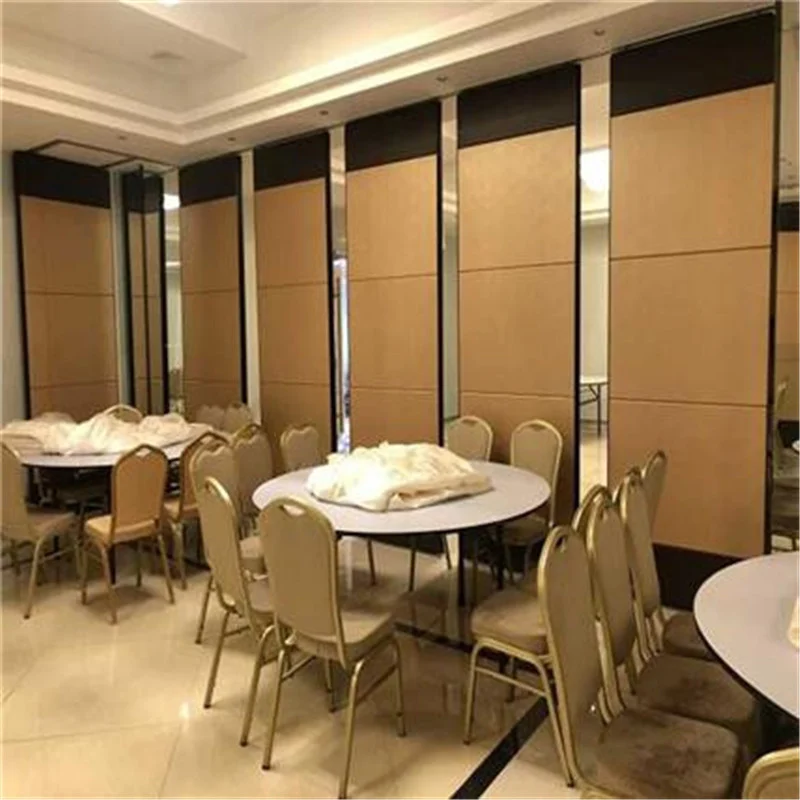

Conference Hall Movable Partitions Folding Partition Wall Dividers for Meeting Room
Folding partition wall dividers details
Folding partition wall dividers place all options at your fingertips, no matter it’s for room to work or room to play, public meetings or private functions, assembly or seminars, etc. Our folding partition wall dividers can easily slid along a hidden track above the ceiling, providing all the acoustics and aesthetic features of the fixed wall with an immeasurable advantage of maximum flexibility.
You can easily and quickly achieve a variety of configurations and divisions. Once in place, the spring-loaded seal locks like it’s fixed. The fully modular system allows operable partitions to be designed by project, taking into account all individual needs. The installation can be carried out local installers with our instruction. In essence, our operable panel partitions can eliminate barriers of your architectural design and take full advantage of your available space.
Our single-panel operable partitions are designed to accommodate most specifications. Each panel is interlocking with the next. They are available in three different thicknesses: 65, 85, 100mm. Folding partition wall dividers of each thickness is different.
Folding partition wall divider is a customizable range of partition panels that conforms to the customer’s precise specifications. As a soundproof operable system, folding partition wall divider is the best choice for places where noise reduction and space dividing are the primary task.
For straight-line openings that do not require multiple locations or offset storage, Folding partition wall dividers system is ideal. Fast and easy setup is possible because the panels are collected in groups and easy to move in a straight line.
Folding partition wall dividers technical information
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG65-32 | 22 | 60 | 32db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | 60# 65# 80# |
| BG65-38 | 27 | 60 | 38db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | |
| BG65-45 | 35 | 60 | 45db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | |
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG80-40 | 30 | 60 | 40db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | 60# 80# 100# |
| BG80-45 | 38 | 60 | 45db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
| BG80-48 | 47 | 60 | 48db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG100-43 | 38 | 60 | 43db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | 60# 80# 100# |
| BG100-48 | 46 | 60 | 48db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | |
| BG100-53 | 55 | 60 | 53db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | |
Folding partition wall dividers advantages
Specifications
| Product Name | Folding Partition Wall Dividers |
|---|---|
| Material | MDF + Aluminum |
| Color | Accept Customized |
| Thickness | 9 Mm |
| Fireproof Grade | B1 |
| Feature | Sound Reduction |
| Highlight | acoustic folding partition , folding room partitions |
Product Details
| Place of Origin | Guangzhou,China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO9001 |
| Model Number | 85 mm folding partition wall dividers |
| Packaging Details | Wooden boxes |
