Conference Hall Acoustic Partition Sliding Door Movable Partition Wall System for Hotel

High quality Conference Hall Acoustic Partition Sliding Door Movable Partition Wall System for Hotel from China, China's leading product market movable partitions systems product, with strict quality control acoustic movable walls factories, producing high quality acoustic movable walls Products.

Request A Quote

Product Description

Conference Hall Acoustic Partition Sliding Door Movable Partition Wall System for Hotel

Movable partition walls system details


Our movable partition walls system are ceiling mounted movable partition wall without floor track, which not only help to divide the space, but also have excellent sound insulation performance. Theses movable partition walls systems are widely used as room partitions in banquet hall, hotel, tea house, inspection hall, function room, station, club, art center, stadium, sports center, art museum, the court, convention center, conference center, golf club, etc.



Being a professional movable partition walls system expert, we have built a reputation for flexible space design assistance, quality products and installation advice. We are fully committed to how our partnership can increase your success – not just for your facilities but also for your overall business.





Movable partition walls system for hotels and large conference rooms are usually needed to be high and elegant, while movable partition walls system for colleges, schools and the court are usually need to be simple.



The unique vertical tongue and groove profile ensures that the movable partition walls system are aligned and prevents sound leakage between panel joints. The horizontal top and bottom retractable seals are a system. When the movable partition walls system are locked in the proper position, the retractable seal provides the ideal compression force for the top track and the bottom floor to prevent the sound from spreading through joints.



Our movable partition walls system are widely used in schools, universities and colleges to help designers meet the mandatory acoustics design standards.

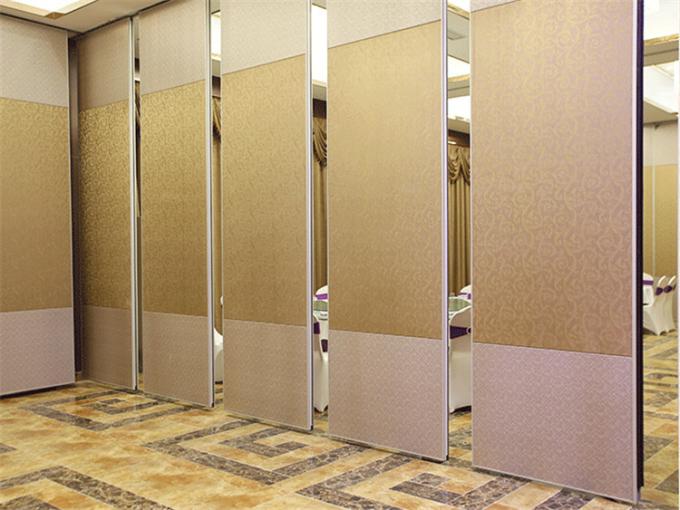

Conference Hall Acoustic Partition Sliding Door Movable Partition Wall System for Hotel 0


Movable partition walls system technical information



Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65mm 85mm 100mm
Max height 4000mm 6000mm 18000mm
Panel width 500-1200 mm 500-1200 mm 500-1200 mm
Face material 9mm 9mm 12 mm
Pass doors Single door or Double door
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

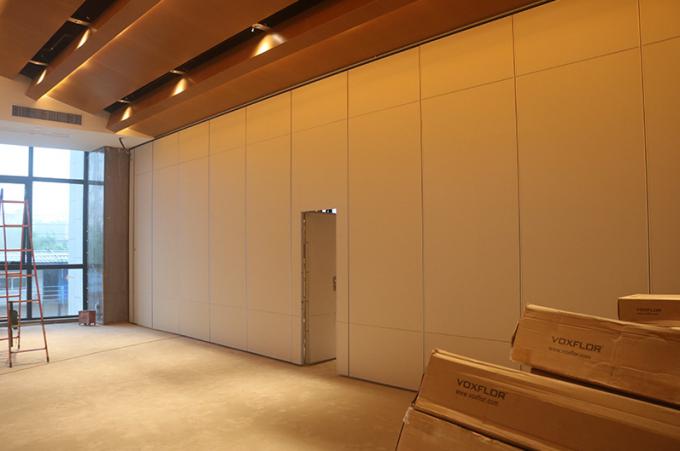

Conference Hall Acoustic Partition Sliding Door Movable Partition Wall System for Hotel 1


Movable partition walls system advantages


The sound attenuation level of movable partition walls system is up to Rw 50 dB.

There is no floor track.

Single or double point stacking system for central or remote parking.

Fire rated core materials.

Full height and insert single and double door in partition.

Panel finishes include vinyl, melamine, paint, veneer, fabric.

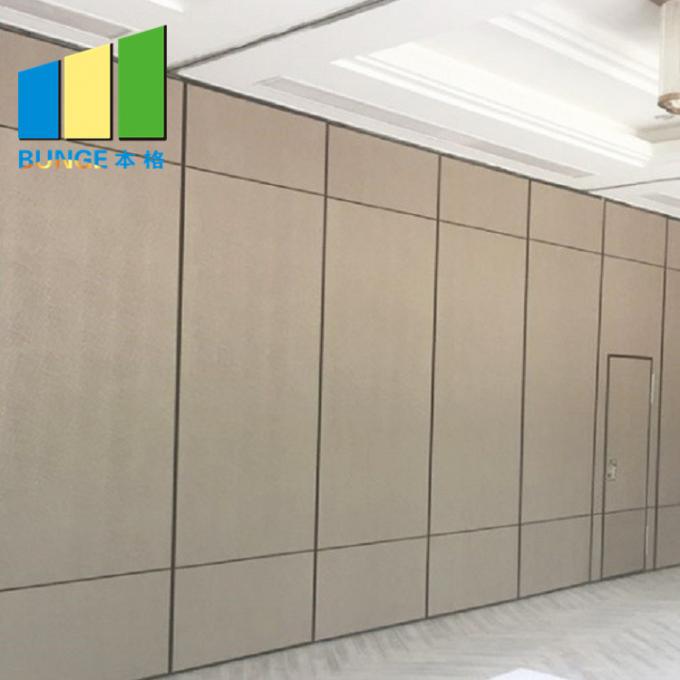

Conference Hall Acoustic Partition Sliding Door Movable Partition Wall System for Hotel 2

Specifications

Product NameMovable Partition Walls System
ColorsCan Be Customized
Base Board10 Mm MDF
ApplicationConference Hall Partitions
Size2420*1220 Mm
Rock Wool Infill55 Kg/m3
Highlightmovable partitions systems , acoustic movable walls

Product Details

Place of OriginGuangzhou,China
Brand NameEBUNGE
CertificationISO9001
Model Number85 mm movable partition walls system
Packaging DetailsPaper carton
