Product Description

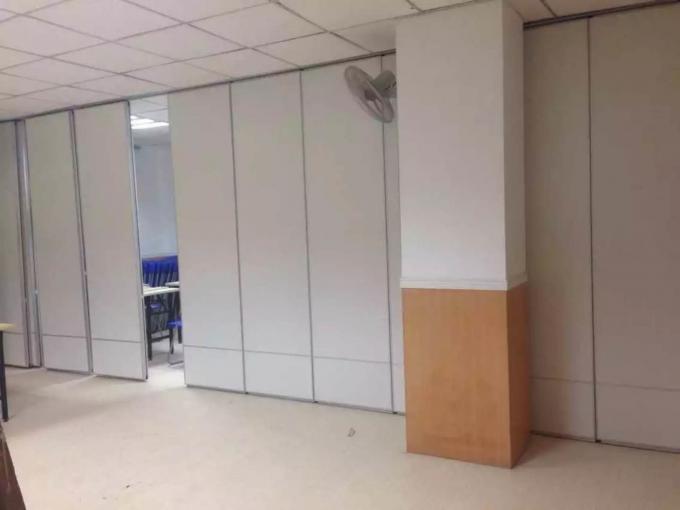

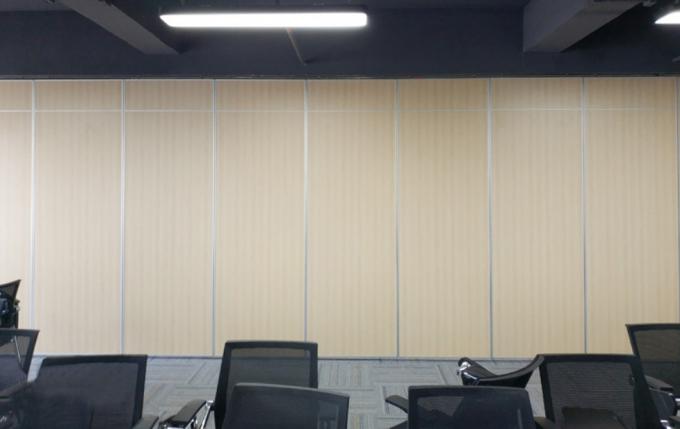

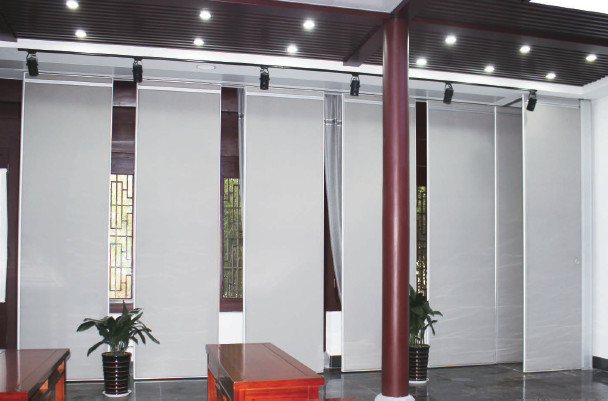

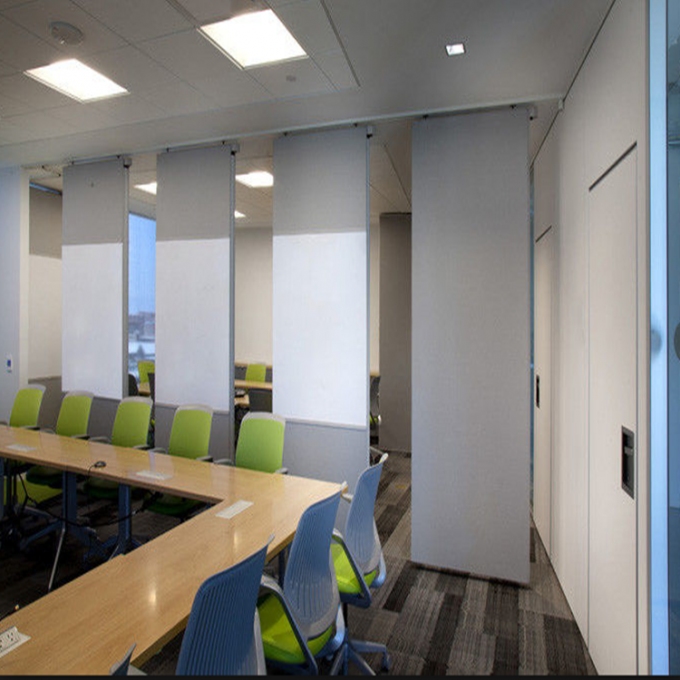

Commercial Used No Floor Track Movable Soundproof Operable Wall Partition For Office
Product Description
1- 65mm ,85mm, 100mm 125mm aluminum frame thickness panel ,Max height up to 15 meters.
2-Top supported without floor track or guide, only have track on the ceiling.
3- clear anodized extruded aluminum tracks and frames, customized powder coated color are available..
4- Available in wide range of finishes, melamine ,fabric/PU leather, printing etc.
5- Fast delivery and Rich experiences in oversea project installation guide & supervision.
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hang only | ||
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 600-1230mm | ||
| Face material | 9mm | 9mm | 12mm |
| Sound insulation | 20-32db RW | 30-38db RW | 35-45db RW |
| Weight | 20-30 kg/sq M | 22-35kg/sq M | 28-40kg/sq M |
| Track system | Single or two point | ||
| Frame construction | Aluminum frame | ||
| Finish materials | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Technical Description Feature
The movable partition panel is made of aluminum frame, special made rubber, excellent sound insulation cotton, finish board, etc. The finish panel is flat and hard; The finish panel is inserted in the aluminum track, assembled with multi-direction wheels. The panel can be stored in many different ways. BUNGE movable partition wall is flexible and can be moved freely. And it has sound insulation, heat insulation and fireproof function.
There is sound insulation rubber around each panel, which can help to insulate the sound going through. The operation way is much easier. It’s better than the old ways which using spring. The movable partition is widely used in exhibition center, hotel, shopping malls, school, multi-function hall, banquet hall, conference room, training room, etc.
Finsh Options
Available in a wide range of colors and finishes, including: fabric, leather, acoustic board, wood veneer, melamine, bare MDF board etc.
How to work
The activity partition is made up of four main parts, they are:
The main body. This part is usually the combination of high quality of wood material and aluminum alloy material.
The pulley. It is the important part of activity partition which promising the partition moves freely.
The track. This part is made for providing the railway for the movement of the pulley, without it, the free movement of this product can’t be realized.
The operating crank handle. You can use it to adjust the height as you love.
About how to finalize order
Please send your room drawing and provide requirements like partition surface finished and soundproof requirements, we will design the partition for free. After your confirmation, we can start production.
About the soundproof quality
From 30dB to 45 dB, depends of which type and what partition surface finished you need. Contact us and we will provide professional suggestions.
About factory visit:
1. If customer have any scheduling in China, please let us know. We would like to help you book the hotel and pick up you from air port, or railway station.
2. Any more problems, please feel free to ask, and we will try our best to supply you!
Specifications
| Color | Customized |
|---|---|
| Material | MDF |
| Surface | PU Leather |
| Thickness | 85 MM |
| Height | Max 6 M |
| Width | 600-1230 MM |
| Highlight | movable partitions systems , acoustic movable walls |
Product Details
| Place of Origin | China (mainland) |
|---|---|
| Brand Name | BUNGE |
| Model Number | 85 mm folding partition wall |
| Packaging Details | Carton package, MDF batten on four section sides, foam board on both front face. |
