Product Description

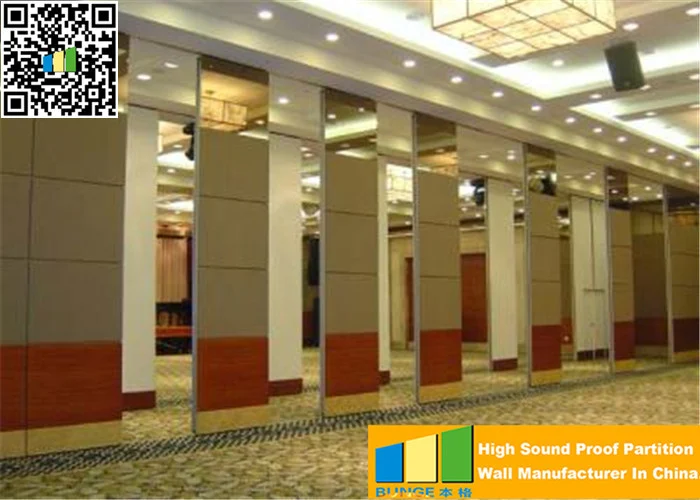

Commercial Office Aluminum Wall Divider Panels Separation For Hotel
Specification of Bunge movable partition:
Bunge movable partition walls is made of high quality anodized aluminum frame with environmentally composite materials . The panels move on a ceiling track with no requirement of floor guides or rails , and they have a standard thickness of 65mm , 80mm and 100mm , and a width up to 1230mm . Maximum height can reach 13meter tall .
The accordion wall panel consists of a series of concave / convex profile interlocking flat panels and the fast set retractable top and bottom seals , it provides excellent acoustic insulation property of from STC-32 to 53 in laboratory setting . Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant , schools , office , religion , hospitals , shopping arcades and many other indoor applications product.
| Item | Movable Partition Wall | |||
| Material | Melamine , Glass , Fabric , MDF | |||
| Type | Tempered Glass Partition Wall | |||
| Acoustic Folding Partition | ||||
| Surface Finish | 1. MDF Base board with Melamine Finish | |||
| 2. MDF board with Fabric Or Leather Finish | ||||
| 3. Plywood Or MDF base board without any finish | ||||
| Size and Design | Customized | |||
| Opening Style | Folding | |||
| Structure | Aluminum track , Trolley bearing , Acoustic Door Panel | |||
| Series | Thickness (mm) | Applied height (m) |
Sound Insulation(db) |
Referenced Weight |
| 65 | 65 | 2.0 ~ 4.0 | 32 – 36 | 30 kg / m2 |
| 80 | 80 | 3.0 ~ 6.0 | 35 – 45 | 35 kg / m2 |
| 100 | 100 | 5.0 ~ 8.0 | 43 – 53 | 45 kg / m2 |
| 125 | 125 | 7.2 ~ 13.0 | 53 – 60 | 65 kg / m2 |
| Package | 1. Inner : Vacuum soft plastic film | |||
| 2. Outer : Carton / strong chipboard | ||||
| Installation | Easy Installation , Provide the installation instruction | |||
| Application | Meeting room , dining hall , exhibition hall , Function room , office etc. | |||
| Delivery Time | 35 – 45 days after receiving the deposit and confirming the shop drawing | |||
| Advantages | 1.Good performance of sound insulation , thermal insulation and Fire prevention | |||
| 2.Save much space for your building | ||||
| 3. No tracks on the floor , it’s easy to install and remove | ||||
| 4.Beautiful appearance , it is widely used in many spaces , such as meeting room , dining hall , exhibition hall , Function room and office | ||||

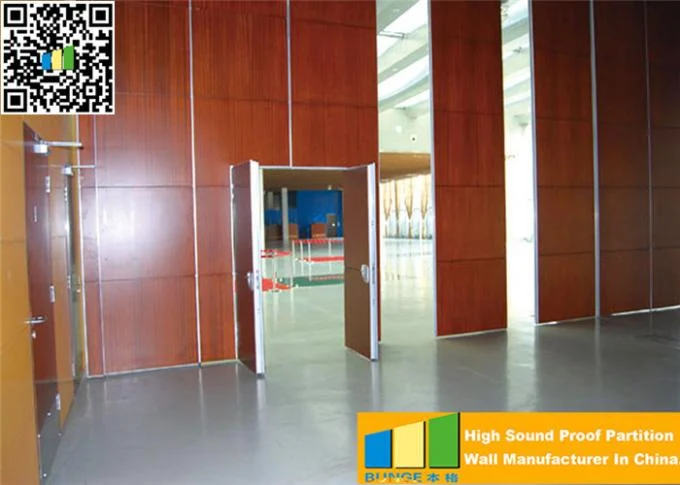

| 5. We can add single or double doors on the board for convenience | ||||
| 6. Supplied our products for many projects all over the world | ||||
Construction details:
Operation of partition:
Partitions shall be top supported , manually operated panels stacked in an area nominated in the plans. When closed , the operable wall shall provide a complete sound retardant barrier . No floor track shall be used.

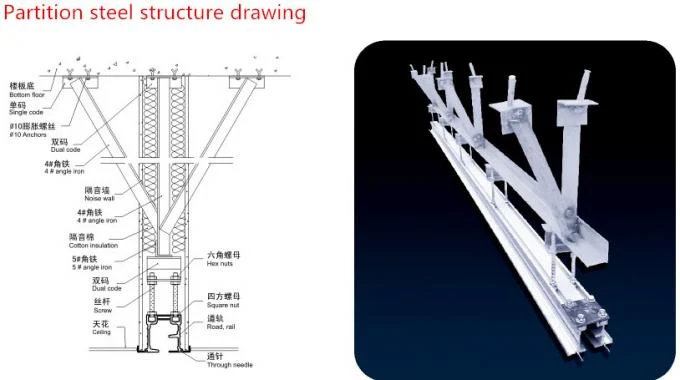

Track of partition :
The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop r bracket to the top of the track .
Specifications
| Material | Aluminum Frame |
|---|---|
| Surface | Fabric , Melamine , Wall Paper , Wooden |
| Application | Hotel , Hall Meeting Room And So On |
| Type | Sliding Doors |
| Place Of Origin | China |
| Color | Multiple Color |
| Coefficient | 36-50db |
| Highlight | sliding folding partition , sound proof sliding partitions |
Product Details
| Place of Origin | China |
|---|---|
| Brand Name | Bunge |
| Model Number | 65mm Wooden Partition |
| Packaging Details | Carton Package , Paper Package |
