Product Description
Commercial Furniture Interior System Accordion Movable Folding Partition Walls
|
Features & Benefits
|
|
|
1
|
Successfully tested for compliance with AS 2047.
|
|
2
|
Low air infiltration, makes this bi-fold door suitable for airconditioned buildings.
|
|
3
|
Panel options up to 100 mm
|
|
4
|
High thermal and acoustic insulation
|
|
5
|
The extra strong door stiles on this bi-fold door allow oversize door panels to be fabricated. |
|
6
|
The extra strong door stiles on this bi-fold door allow oversize door panels to be fabricated.
|
|
7
|
High degree of design flexibility
|
|
8
|
warranty terms subject to written confirmation
|
Finishing
There are wide of range face finishes are available :melamine faced MDF or Plywood,,fabric,carpet,fabric,artificial,leather,wood veneer,high pressure laminate,Formica ,acoustic panel,white boad ect.,panels may also be supplied unfinished for field decoration,Standard frame color is clear anodized aluminum,custom powder coating colors are available.
The section configuration
1) feld: acoustic fleece, pasted on the back of the panel, noise reducible and fire resistant(made in CHINA, GERMANY AND FRANCE)
2) substrate(basal material): based on high quality of 12/15/18mm MDF with density of 750kg/m3,
more choices for basal material:HDF, E1 ECO-friendly MDF and Fireproof MDF(B1 grade).
3) surface: available in three different finishes: real wood veneer, printed wood melamine finished and fireproofing surface.
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28–36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Application:

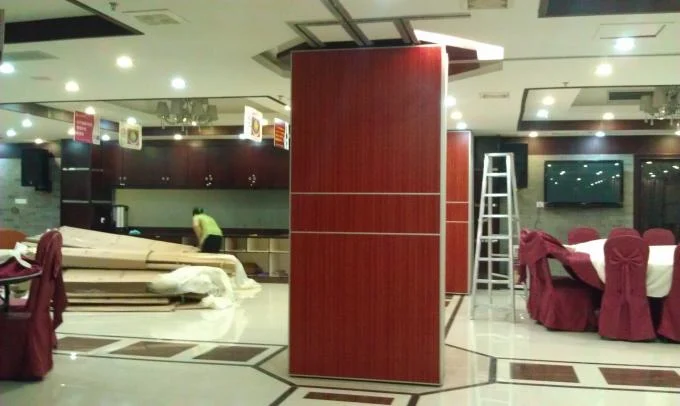

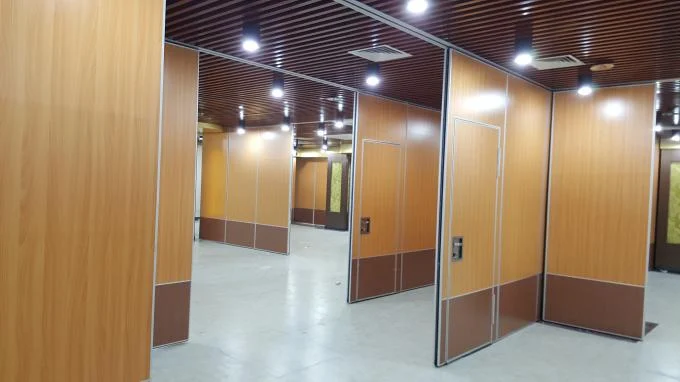

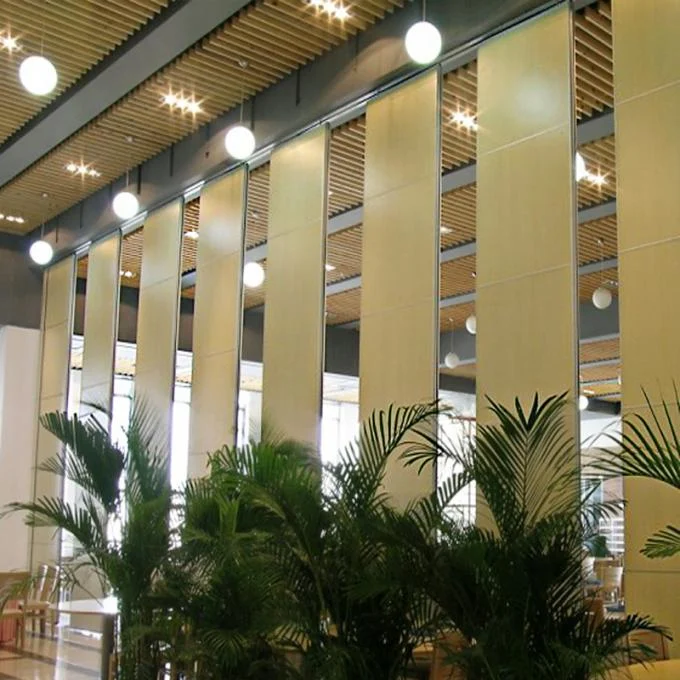

Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centers, banks and restaurants.
Specifications
| Panel Width | 500 Mm--1220 Mm (Accept Customized) |
|---|---|
| STC Conffcient | 32/50db |
| Feature | Voice Insulation |
| Color | Color Selective (Customized) |
| Finishing | Melanimine,fabric,leather Etc. |
| Thickness | 65 Mm(2 9/16 Inch) |
| Application | Hotel,office ,conferance Room |
| Material | MDF+Aluminum |
| Highlight | soundproof folding partition , folding room partitions |
Product Details
| Place of Origin | Guangdong |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO9001 |
| Model Number | Series 65 mm folding partition walls |
| Packaging Details | Carton package, MDF batten on four section sides , foam board on both front face. |
