Name: Commercial Folding Partition Doors / Melamine Board Movable Wall Partitions
Brand: EBUNGE

Product Description

Conference Room Commercial Cheap Folding Partition Doors Movable Walls

Movable partition walls usage:

(1)Size of wall: all panels should be installed in accordance with the manufacturers recommendations.

(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.

(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.

(4)Fix on keel:
Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.

(5)Ensure the movable partition walls is stable,they should be paralleled with the ceiling.If the ceiling was done,it should remove a little to install the tracks.

(6)The floor has no tracks,so it will not damage the floor and it will not swing easily.

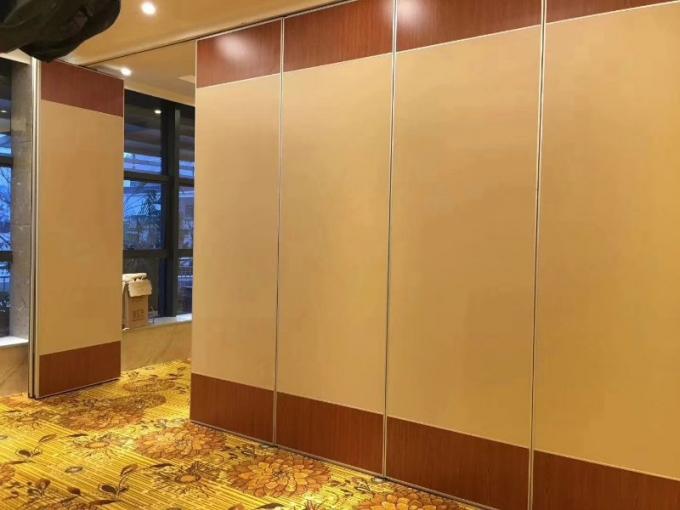

Commercial Folding Partition Doors / Melamine Board Movable Wall Partitions 0

Movable partiiton walls specification

1. Eight characters and functions:
(1) Hang track on the ceiling, not the floor;
(2) Heat insulation and fireproof
(3) Stable and safe
(4) Energy-efficientcy
(5) Elegant appearance
(6) Collection convenient
(7) Widely used in different places

2. Type:
Type 65 is suitable to use at 2m-3.5m height space.
Type 85 is suitable to use at 2m-6m height space.
Type 100 is suitable to use at 3m-9m height space.

3. Each panel load-bearing weight: 225kgs/ 450kgs/ 650kgs

4. Sound insulation coefficient:
Type 65 highest sound insulation coefficient can be reach is 36db.
Type 85 the highest sound insulation coefficient can be reach is 50db.
Type 100 the highest sound insulation coefficient can be reach is 53db.

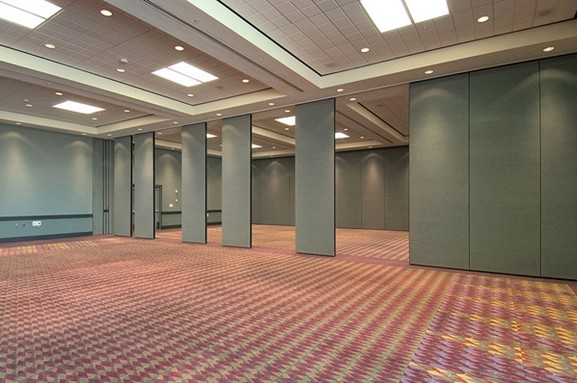

Commercial Folding Partition Doors / Melamine Board Movable Wall Partitions 1

Technical data of Type 65 movable partition :

Panel Suspension	Top hanging system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum Or Steel Track
Roller on panel	Single or Double Roller
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top and bottom seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm – 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel Surface	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard.

Sound proof movable partition walls details

1> Movable partition is modernized decoration style. It can separate the space speedly and

conveniently. And it has sound insulation and heat insulation and fireproof function;

2> The Partition Board is made from high density s/s frame, special made rubber, excellent sound

insulation cotton and finish board etc. the finish board is flat and hard;

3> The finish board is inserted in the aluminum track, assembled with multi direction wheels; the

board can be stored in may different ways;

4> It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the

same plane with the ceiling decoration. It won’t affect the whole decoration style;

5> Around the board ,there is sound insulation rubber, it can help to insulate the sound entering;

6> The operation ways is much easier, it’s better than the old ways which was use spring before;

7> We can add single or double doors on the board for convenience;

8> We have many different finish to meet customer different requirement and get different decoration effect.

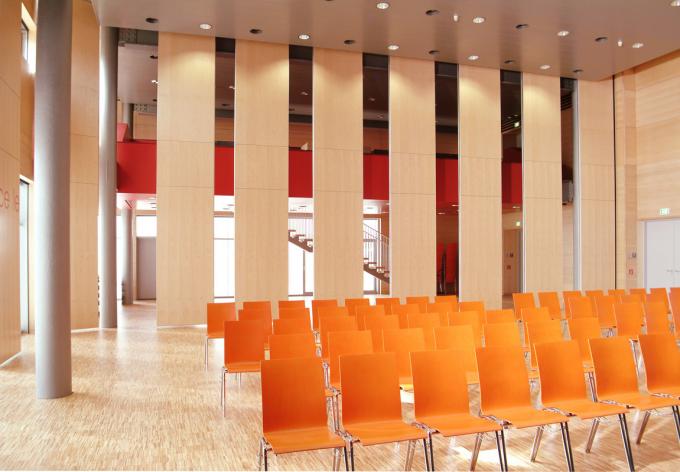

Commercial Folding Partition Doors / Melamine Board Movable Wall Partitions 2

Specifications

Open Style	Sliding
Product Name	Movable Partition Walls
Feature	Sound Proofing
Size	100 Mm
Color	Accept Customized
Application	Office,hotel,conference Room
Panel Width	500 Mm--1230 Mm
Door Material	Melamine Board
Surface	Melamine,leather,fabric,plywood
Position	Interior
Width	85 Mm(3 1/4 Inch)
Highlight	movable walls on wheels , acoustic movable walls

Product Details

Place of Origin	Guangdong
Brand Name	BANGE
Certification	ISO9001
Model Number	85 mm movable partition walls
Packaging Details	Carton package, MDF batten on four section sides , foam board on both front face.
