Product Description

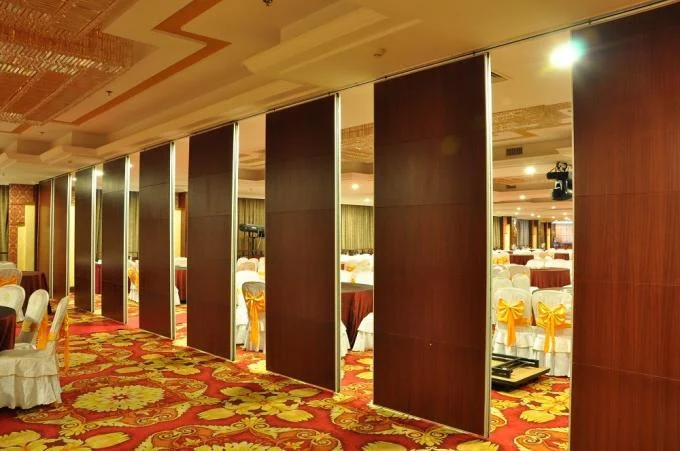

Sound Insulation Operable Wooden Partition Walls for Auditorium
Specifications of Wooden Partition Walls System
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9mm | 9mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 28-38dB Rw | 28-42dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Features of EBUNGE Wooden Partition Walls System
1)Thickness panel:65mm,80mm,100mm, height from 2meter to 17meter.
2)Top supported without floor track or guide.
3) Clear anodized extruded aluminum tracks and frames,customized powder coated color are available.
4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster base board on both side.
5) Sound insulation coefficien :STC 32db to 53 db, ASTM standard of acoustic tested in HongKong.
6) Available in wide range of finishes.
7) Fast delivery and Rich experiences in oversea project installation guide & supervision.
Components of Wooden Partition Walls System
Tracks:Made of good quality anodized aluminium 6063-T5 materials,hanging the auditorium partition walls panels with wheels.
Wheels/Rollers:It is the carrier for the auditorium partition walls,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors:Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “ï¼”types are available.
Rubber/vinyl seal:Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool:Density of 60kg/m3,help us reduce the noise and heat.
Handle:Operate the retractable being up and down.
Retractable mechanism:Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip:Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the auditorium partition walls.
MDF board:9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
Common Applications of Auditorium Partition Walls System
EBUNGE auditorium partition walls can be used in Convention Centers,Conference Room,Religious Facilities,Hotels,Auditoriums,Corporate Training Facilities,Office,Civic or Exposition Halls,Schools, Banquet Halls,Meeting Rooms etc.
With auditorium partition walls systems,there are no more barriers to maximizing the potential of your available building spaces.
Specifications
| Open Style | Sliding |
|---|---|
| Product Name | Wooden Partition Walls |
| Feature | Sound Proofing |
| Size | 85 Mm |
| Color | Accept Customized |
| Application | Office,hotel,conference Room |
| Panel Width | 500 Mm--1230 Mm |
| Door Material | Melamine Board |
| Surface | Melamine,leather,fabric,plywood |
| Position | Interior |
| Width | 85 Mm(3 1/4 Inch) |
| Highlight | acoustic operable partitions , movable acoustic partition walls |
Product Details
| Place of Origin | Guangdong |
|---|---|
| Brand Name | BANGE |
| Certification | ISO9001 |
| Model Number | 85 mm wooden partition walls |
| Packaging Details | Carton package, MDF batten on four section sides , foam board on both front face. |
