Product Description
Collapsible office folding partition walls glass folding door glass 12mm frameless operable glass partition system with sliding door
Description:
1. Office glass partition can separate the space speedy and conveniently.
2. Top hung system without floor track,make the space more beautiful.
3. The movable glass wall panel is made of high density aluminum frame,special rubber,ground bolt and transparent tempered glass or frosted tempered glass.
4. Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.
5. The operable partition finished panel is hanging on the aluminum track, assembled with muti direction wheels. Good for operation.
Technical parameters:
| Series | BG65 Glazing Glass Partition | BG85 Aluminum Frame Glass Partition | BG85 Sound proof Glass Partition |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 36mm | 85mm | 85mm |
| Panel height | Up to 3000mm | Up to 6000mm | Up to 6000mm |
| Max height | 3000mm | 6000mm | 6000mm |
| Panel width | 800-1100mm | 800-1100mm | 800-1100mm |
| Frame construction | Top and bottom aluminum | Aluminum frame | Aluminum frame |
| Glass thickness | 10mm or 12mm single glass | 10mm or 12mm single glass | double 10mm glass |
| Fire safety | Optional Class O | Optional Class O | Optional Class O |
| Vertical profiles | n/a | n/a | Aluminum anodised with sealing profiles |
| Retractable seals | n/a | n/a | Aluminum black with double rubber seals |
| Operation of seals | n/a | n/a | |
| Pass doors | Fixed full height door | Fixed full height door | Fixed full height door |
| Locking | Optional lock to panel | Optional lock to panel | Optional lock to panel |
| Sound insulation | n/a | n/a | n/a |
| Weight | Approx 30 kg/sq M | Approx 32 kg/sq M | Approx 50 kg/sq M |
Surface:

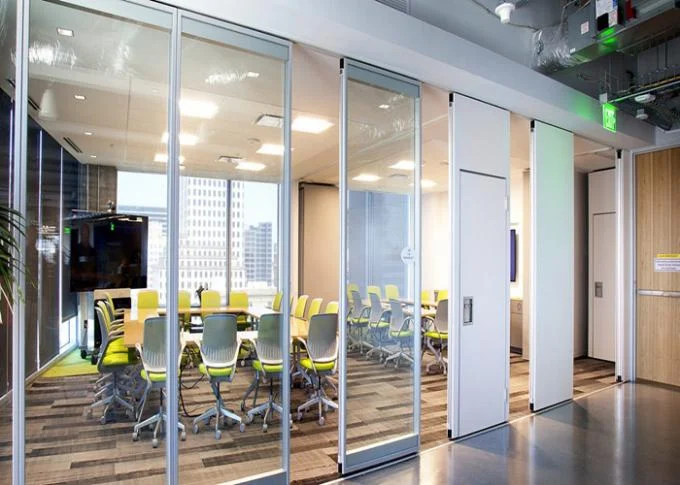

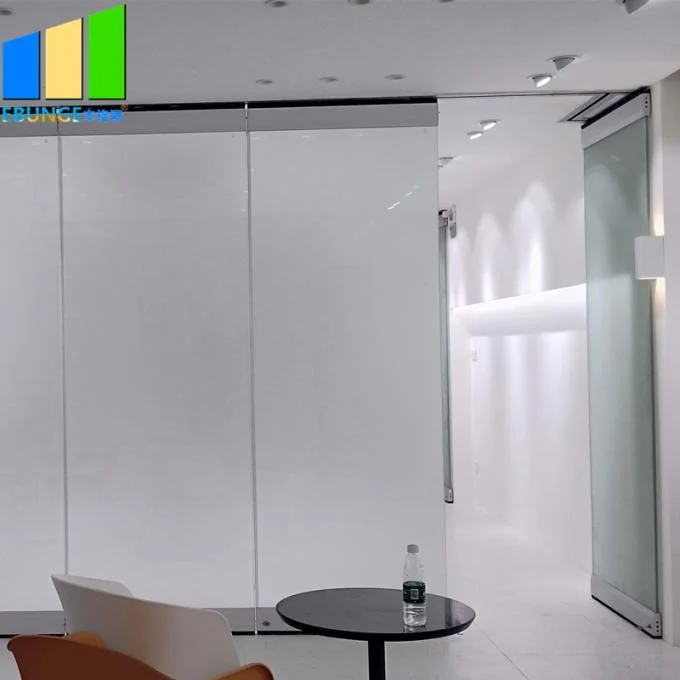

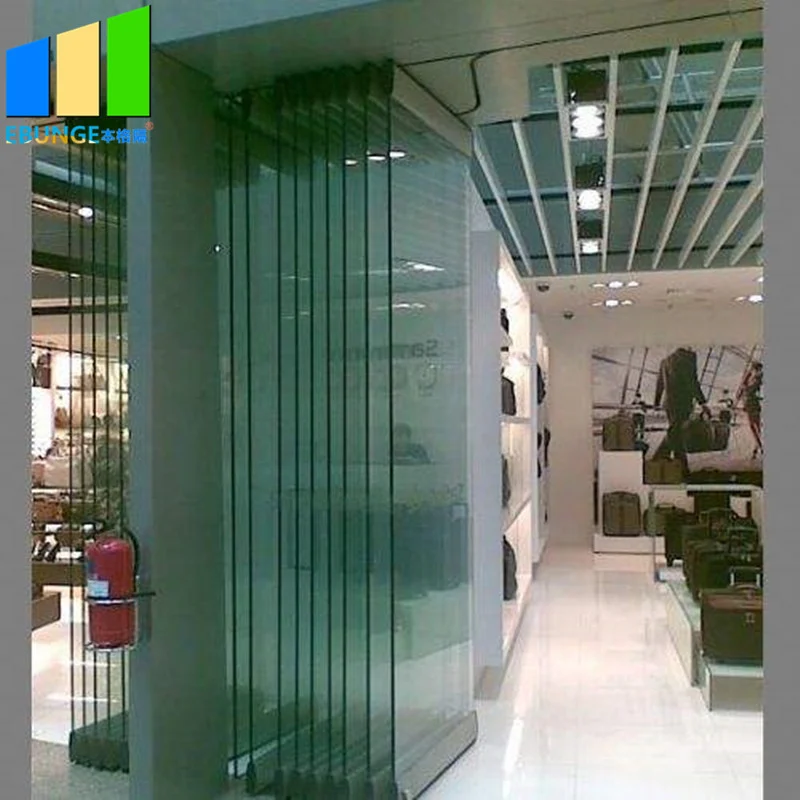

Movable glass partition usually used in office,restaurant,hotel lobby,wharehoue and any other place where we want to see the inside view and with less stringent insulation requirements. It is a good room divider,make our space flexible,maximize the use of our room.
For the glass partition wall,there are two type:aluminum frame partition and frameless aluminium partition. They can be customized to transparent tempered glass partition or frosted tempered glass partition.
|
sample availability subject to confirmation in 10 Days Inquiry now and you will have your sample in 10 day if you pay the express. |
3-year Warranty The acoustic room divider made of 6063-T5 alumina, anti-aging, no fading and abrasion in 10 years. |
OEM Service Your logo can be printed on the packaging carton. |
Specifications
| Product Name | Folding Frameless Glass Wall |
|---|---|
| Material | Aluminium And Tempered Glass |
| Height | Less Then 3 M |
| Width | 500-1200 Mm |
| Thickness | 36mm Aluminum Frame |
| Function | Space Dividing |
| Finish | Clear Glass And Frosted Glass |
| Highlight | acoustic folding partition , folding room partitions |
Product Details
| Place of Origin | Guangzhou,China |
|---|---|
| Brand Name | EBUNGE |
| Model Number | Series 65 mm folding frameless glass wall |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. |
