EBUNGE Partition Solution

Classroom Sound Proof Operable Partition Acoustic Movable Partition Wall Board

High quality Classroom Sound Proof Operable Partition Acoustic Movable Partition Wall Board from China, China's leading product market movable walls on wheels product, with strict quality control movable partitions systems factories, producing high quality movable partitions systems Products.

Request A Quote

Product Description

Classroom Sound Proof Operable Partition Acoustic Movable Partition Wall Board



Description:



Movable partition walls board are specified where functional space delineation is an integral element within the partition project.



Due to their flexibility and cost effectiveness, they allow large rooms to be conveniently sub-divided to maximize space utilization.



The movable partition walls board consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.



Surface:



Melamine: In fact, it is a layer of colored paper pressed on the fiber board.



The moisture resistance of the plywood is better than that of the MDF; the disadvantage is that the surface flatness is worse than that of the MDF.



Leather or fabric with soft covers,hard cover, and is divided into borders (similar to mountings), already covered (the borders are not exposed).

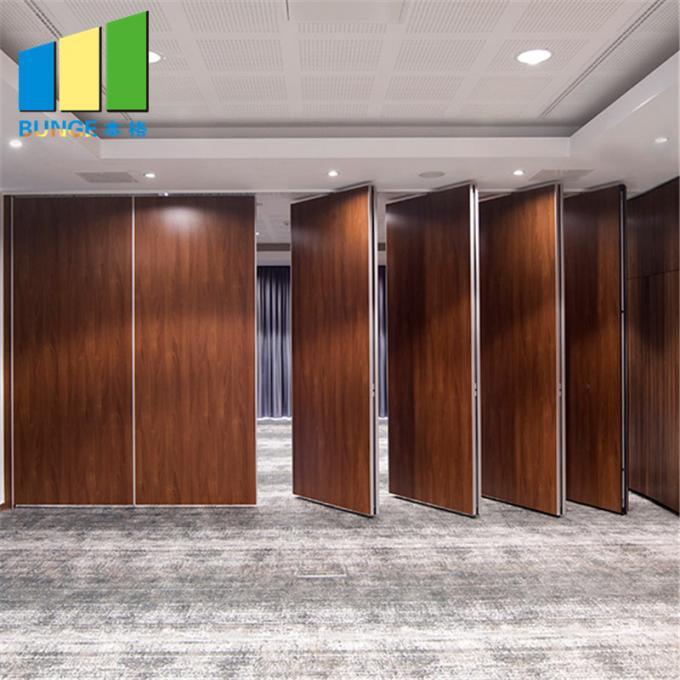

Classroom Sound Proof Operable Partition Acoustic Movable Partition Wall Board 0



Technical information



Model BG65 Series BG80 Series BG100 Series BG High-Series
Suspensionsystem Aluminum hanging Steal Hanging
Basic Thickness 65 mm 80 mm 100 mm 100 mm
Total thickness 65/75/85/95mm 80/90/100/110mm 100/120/130mm 100/120/130mm
Max Height Up to 3800 mm Up to 6000 mm Up to 8000 mm Up to 15000 mm
Width 600-1230mm 600-1230mm 800-1230mm 800-1230mm
Floor/Ceiling Sealing Strength Telescopic aluminum tube with rubber strip.
Side walls sealing strength Double seal tape
Sound insulation level 26-30 db 28-34 db 32-40 db 42-52 db
Panel structure Aluminum frame with wooden keel Aluminum frame with steel keel
Surface material Melamine laminate/fabric/PU leather/wallpaper/veneer/customized

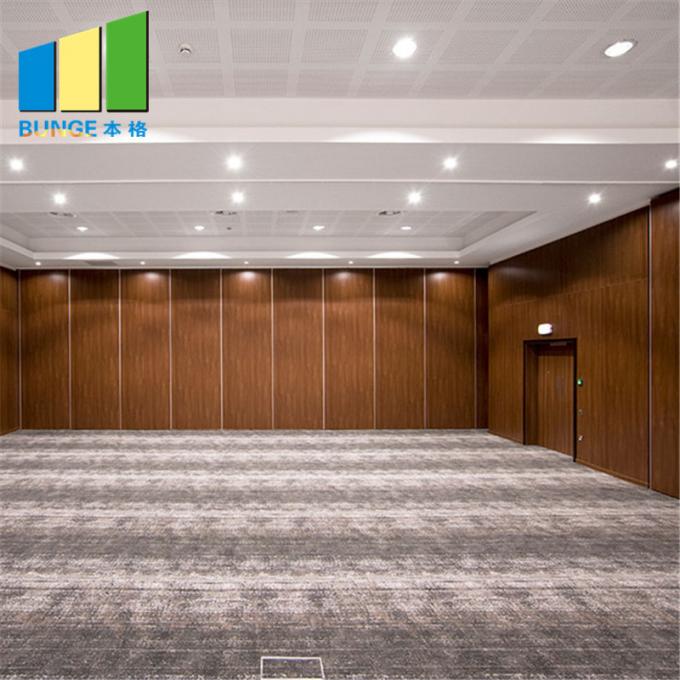

Classroom Sound Proof Operable Partition Acoustic Movable Partition Wall Board 1



Advantage:



1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;



2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;



3. Retractable and flexible: The movable partition wall board move freely, promote flexibility, and one person can complete the entire process of partitioning;



4. Convenient collection: when closing, the movable partition walls board can be hidden in a dedicated storage cabinet, which does not affect the overall appearance.



Our service:



We design and manufacture value for many products with one year’s warranty on all the outstanding ranges illustrated.



We can offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.

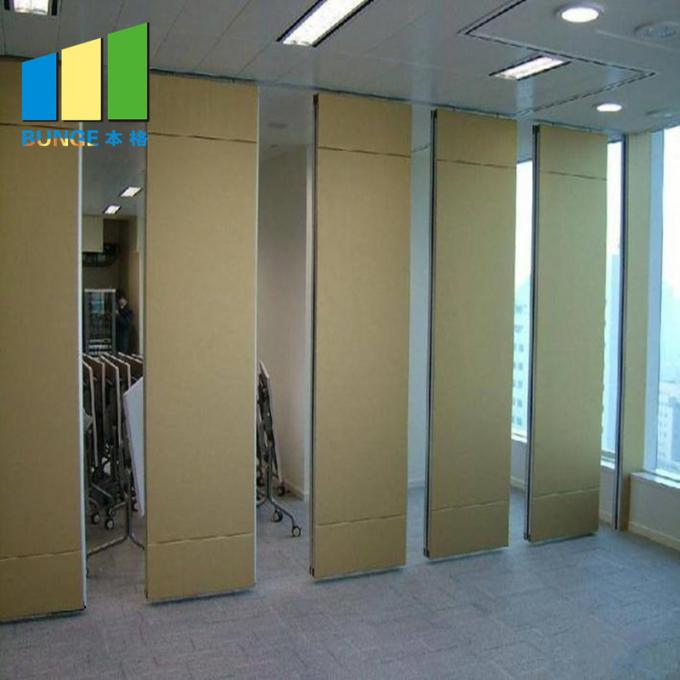

Classroom Sound Proof Operable Partition Acoustic Movable Partition Wall Board 2



Movable partition walls board FAQ

Q1. Can I have a sample order for movable partition walls board?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the leading time?

Sample needs 3-5 days, mass production time needs 10-20 days for order quantity more than 300 square meter

Q3. Do you have any MOQ limit for movable partition walls board order?

Low MOQ, 20 square meter, because its big size and volume.

Q4. How do you ship the samples and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.

Q5. Do you provide installation?

We provide installation guide, in general, we send two person for installation instructions on site, customer need cover tickets, hotels, accommodations, 120-200USD one person per day for instructions.

Q6. Is it OK to print my logo on packing?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the movable partition walls board?

Yes, we offer three years warranty to our products.

Specifications

Product NameMovable Partition Walls Board
ApplicationClassroom Partition Walls
SurfaceMelamine, Fabric
StyleModern Sliding Partitions
TrackAnodized Aluminum
Thickness65 Mm(2 9/16 Inch)
Highlightmovable walls on wheels , movable partitions systems

Product Details

Place of OriginGuangzhou, China
Brand NameEBUNGE
CertificationISO 9001
Model Number65 mm movable partition walls
Packaging DetailsPaper carton, outside with wooden box.
