Product Description
Classroom Acoustic Movable Partition Sound Proofing Folding Partition Wall Panels Philippines

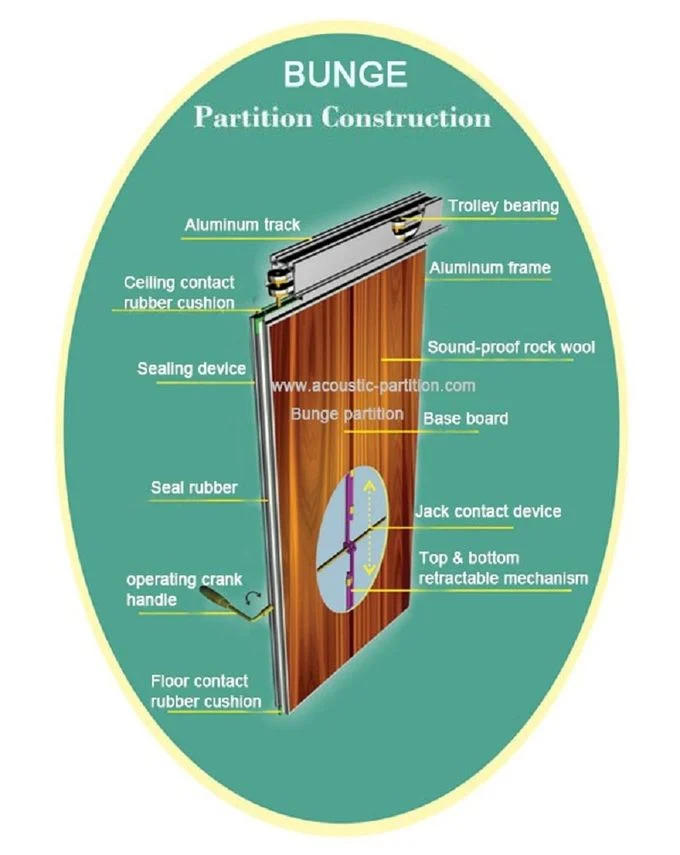

Folding partition panels structure
The folding partition panel is made up of four main parts, they are:
The main body. This part is usually the combination of high quality of glued wood and aluminum alloy material. The standard size can be (800-1200)*3500*65mm/(800-1200)*4500*80mm/(800-1200)*4500*100mm.
The pulley. It is the important part of folding partition panels which promising the partition moves freely.
The folding partition panels track. This part is made for providing the railway for the movement of the pulley, without which, the free movement of this product can’t be realized.
The operating crank handle. With it, you can adjust the height as you love.
Technical information
| Model | BG-65 series | BG-85 series | BG-100 series | BG-high series |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging | Steel hanging |
| Basic thickness | 65mm | 85mm | 100mm | 100mm |
| Total thickness | 65/75/85/95mm | 85/90/100/110mm | 100/120/130mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm | Up to 12000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
| Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip | |||
| Side walls sealing strength | Double seal tape | |||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB | 32-40dB |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | ||
| Panel density | 22-28kg/sqm. | 24-32kg/sqm. | 32-50kg/sqm. | / |
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | |||
Different finishes of folding partition panel
-
ⶠWooden (MDF, Plywood bare raw finish) (Melamine, Veneer)
-
â· Fabric (fabric with mdf board hard covers) (fabric with sponge soft covers)
-
⸠Leather (leather with mdf hard covers) (leather with sponge soft covers)
-
â¹ Wallpaper, Vinyl, Fireproof board
-
⺠Acoustic panels
-
â» Tempered glass, mirror etc.
-
Packaging for the track system
Normally if the client only buy the folding partition panels accessories, we always pack the tracks by a paper carton, and the accessories will be packed by some wooden boxes.
 |
 |
 |
Specifications
| Product Name | Folding Partition Panels |
|---|---|
| Thickness | 85 Mm |
| Application | Classroom Folding Partition |
| Rock Wool Infill | 55 Kg/m3 |
| Surface | Laminate |
| Access Door | Single Or Double |
| Highlight | acoustic folding partition , folding room partitions |
Product Details
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO9001 |
| Model Number | 85 mm folding partition panels |
| Packaging Details | Paper carton, outside with wooden boxes |
