Product Description
Banquet Room Movable Wall Partitioning System Hotel Acoustic Foldable Partition Walls Philippines
Finished Project
Finished date: This project finished in April 15 th, deliverd on April 18 th,2019.

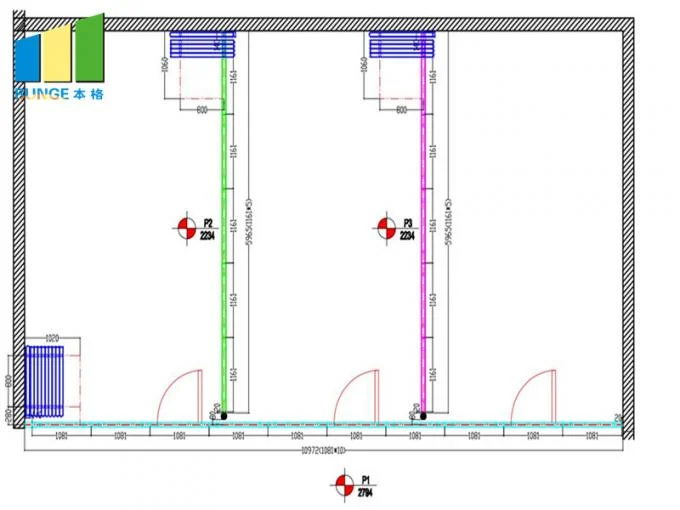

Size:5965*2234 mm, 2 sets of walls.
10972*2794 mm, 1 set of wall.
Totally 3 sets of walls, around 58 square meters.

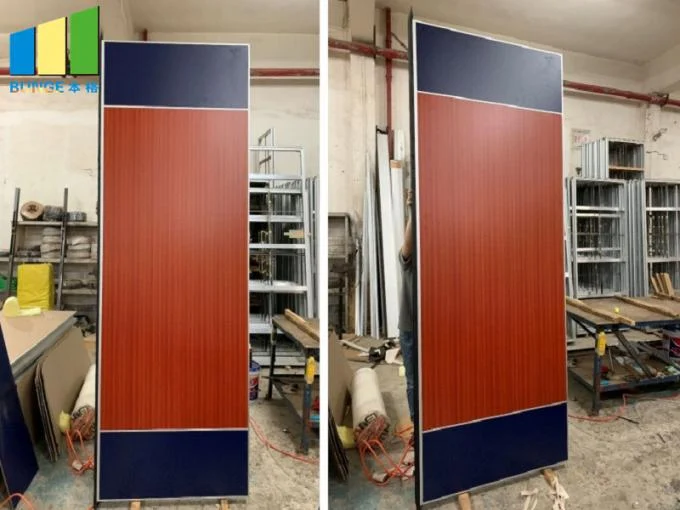

Color Charts: Top and Bottom Part: Navy-Fine Pitted
Middle Part: Sapele – Fine Terry
Application: Conference room partition walls project in USA.
Technical information
| Model | BG65 | BG85 | BG100 | Ultra-high System |
| Suspension System | Hanging System, with ceiling rails | |||
| Basic Thickness | 65mm | 85mm | 100mm | 100 mm |
| Max Height | Max 3800 mm | Max 6000 mm | Max 8000 mm | Max 15000 mm |
| Width | 800 -1230mm | |||
| Floor/ceiling Sealing strength | Telescopic aluminum tube with rubber strip | |||
|
Side Walls Sealing Strength |
Double seal tape | |||
| Base Board Thickness | 9 mm | 9 mm | 12 mm | 12 mm |
| Vertical Profiles | Aluminum anodised with sealing profiles | |||
| Retractable Seals | Aluminum black with double rubber seals | |||
| Operation | Manual System, with supplied operating handle | |||
| Pass Doors | Single or Double Pass Through Door Available | |||
| Weight | Approx 22-35 kg/m² | Approx 25-40 kg/m² | Approx30-48 kg/m² | Approx38-68 kg/m² |
| Finish Options | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | |||
About us
Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m². And we have around 10 years experience in it. There is a ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system, and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other countries.

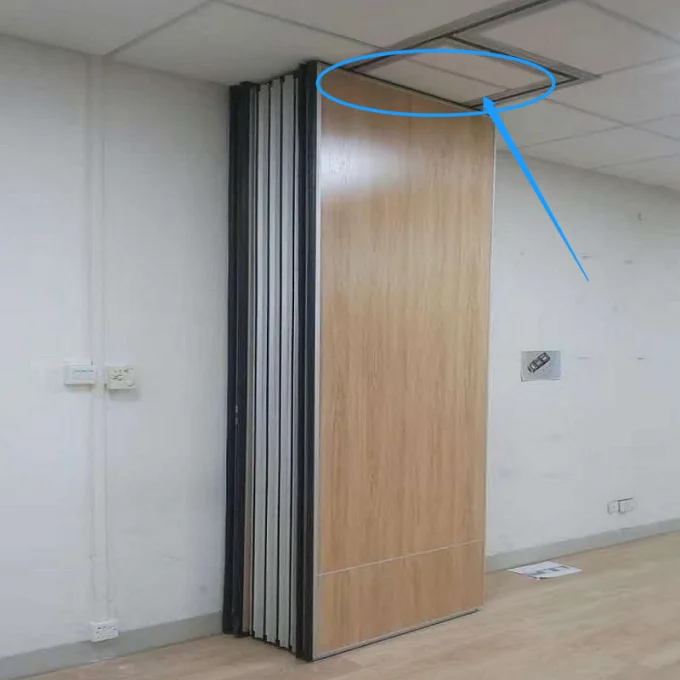

About the movable walls system we produce, it is a hanging system, which only have the ceiling tracks, but have no floor tracks, so it will not damage the floor or carpet at project site. The biggest features is that they can be divided a big space into 2 or more small rooms. When we do not use them, we can park them to the parking zone quickly. As for the operation, we usually use a handle to move and lock the panels, it is so easy that 1 person can finish the whole operation.
As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client need installation service, we also can send our technicians to supervise the installation. In addition, we also can supply free design to every client and we will respond after reviewing the project information if the clients have any questions.
Specifications
| Product Name | Acoustic Partition Walls |
|---|---|
| Application | Banquet Hall Partitions |
| Surface | Laminate |
| Weight | 28 - 35 Kg/m² |
| Frame Material | 6063-T6 Aluminum Alloy |
| Base Board | 9 Mm MDF Board |
| Highlight | acoustic operable wall , movable acoustic partition walls |
Product Details
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO9001 |
| Model Number | 85 mm acoustic partition walls |
| Packaging Details | Paper carton, outside with wooden boxes |
