Product Description

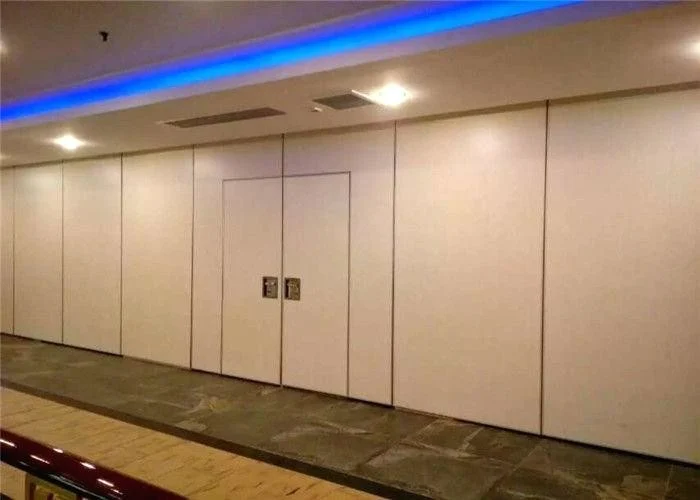

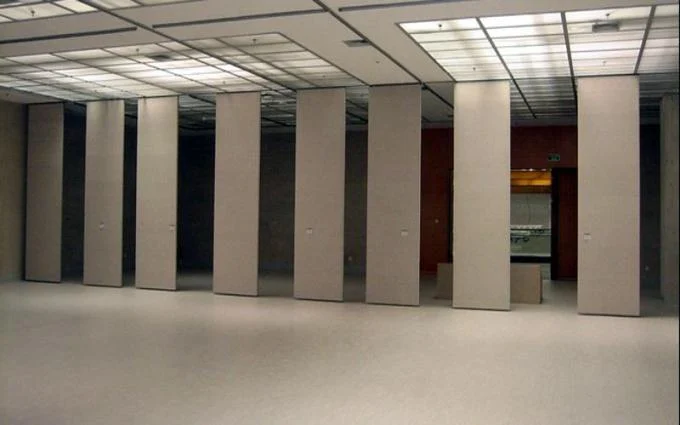

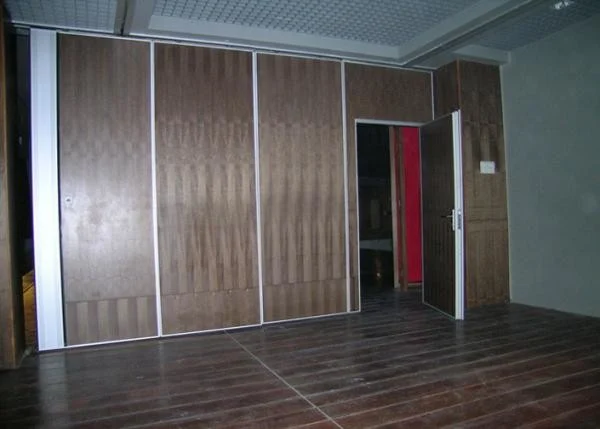

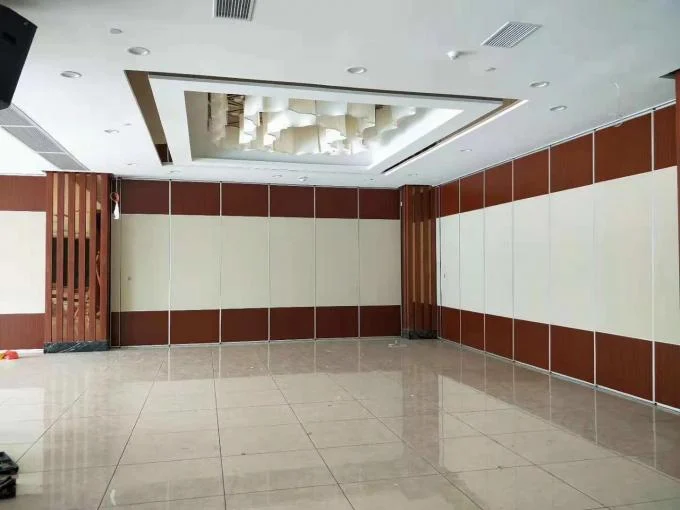

Banquet Hall Removable Movable Walls Sliding Acoustic Partition Walls Price
Acoustic partition walls details
| Height (maximum height) | 6 meter |
| Width | 450~~1200mm |
| Thickness | 85mm |
| Left and right telescoping | 140mm |
| Stretching up and down | 45mm |
| Push and pull force | 20N |
| Orbital load | 225kg/m |
| Sound insulation coefficient | 40DB |
| Panel material | Melamine |
Features&Benefit
- Reinforced aluminium frame construction for demanding condition.
- Hinged paired panels or single panel meet your different use.
- Wide range of wall surface finishes and colors
- Passdoor enabling access to neighbouring rooms.
- Stacking one or both ends.
- Top hung and floor with Rubber seals achieving excellent soundproof effect.
- Various levels of soundproof reduction.
Acoustic partition walls technical details
| Panel Suspension: | Top hunge system without the need for a floor track. |
| Panel Width: | Each panel 600mm-1200mm. |
| Track: | Aluminum OR Steel Track |
| Roller on panel: | Single or double roller. |
| Panel Frames: | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals: | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module: | 700mm – 1200mm maximum. |
| Panel stacking: | Numerous panel stacking options for complete flexibility. |
| Panel face: | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes: | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard. |
Specifications
| Product Name | Acoustic Partition Walls |
|---|---|
| Feature | Sound Proofing |
| Application | Banquet Hall,conference Room |
| Thickness | 85 Mm(3 1/4 Inch) |
| Position | Interior |
| Height | 2-6 Meters |
| Highlight | acoustic operable wall , movable acoustic partition walls |
Product Details
| Place of Origin | Guangzhou,China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ASTM E90 |
| Model Number | 85 mm acoustic partition walls |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. Outside with wooden boxes. |
