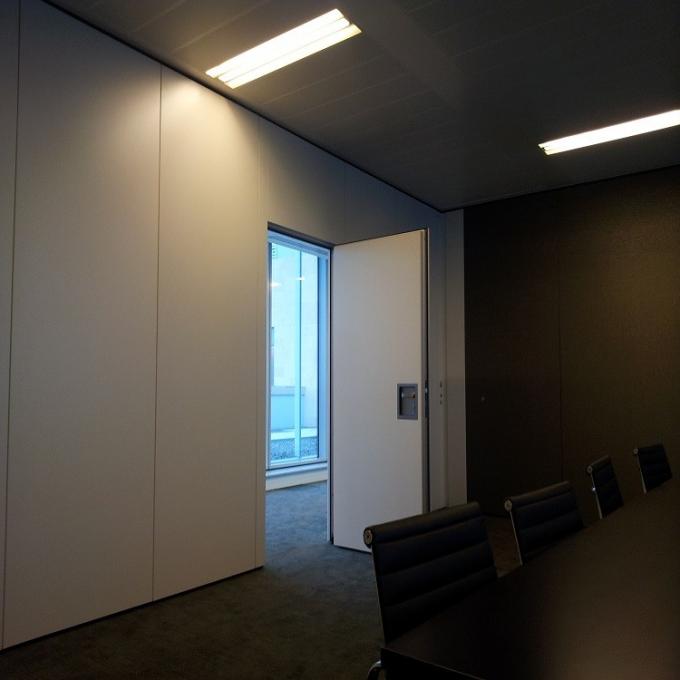

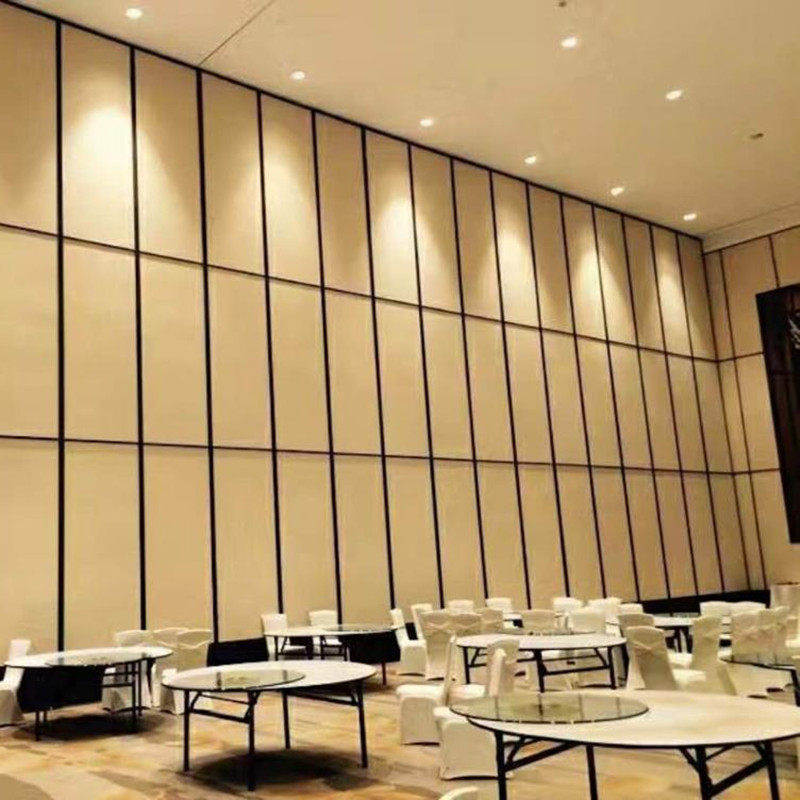

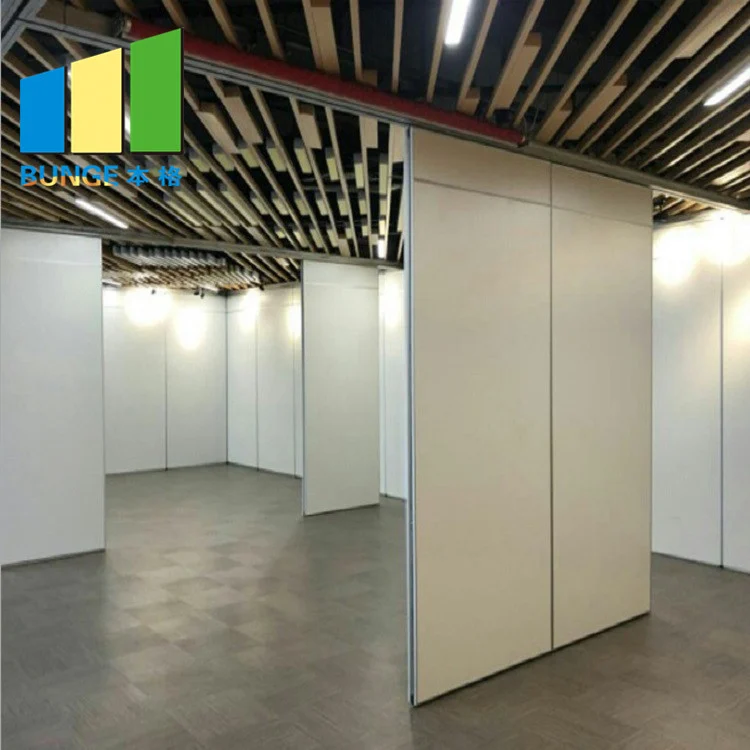

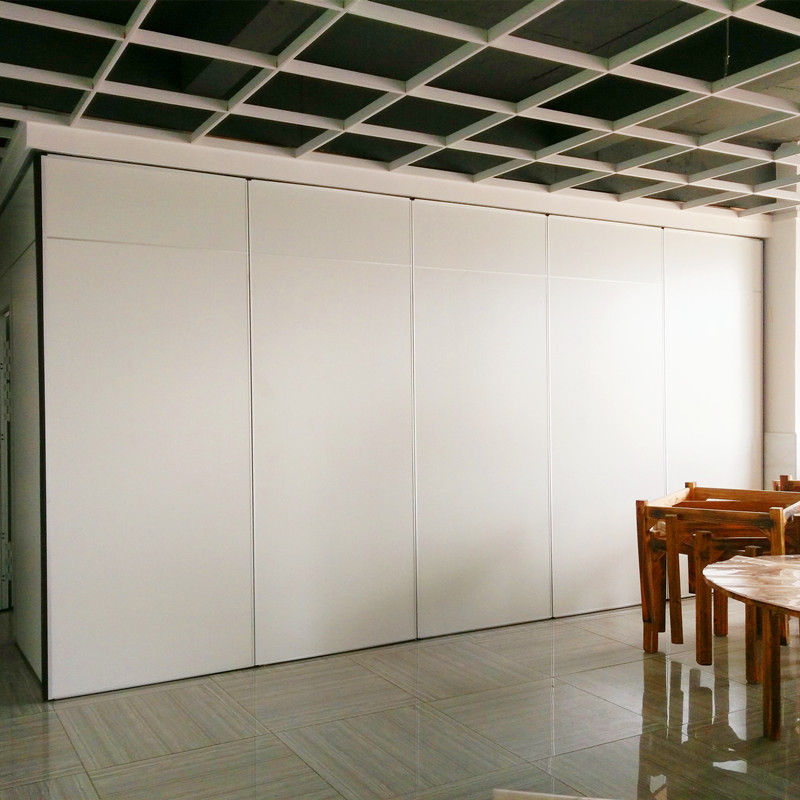

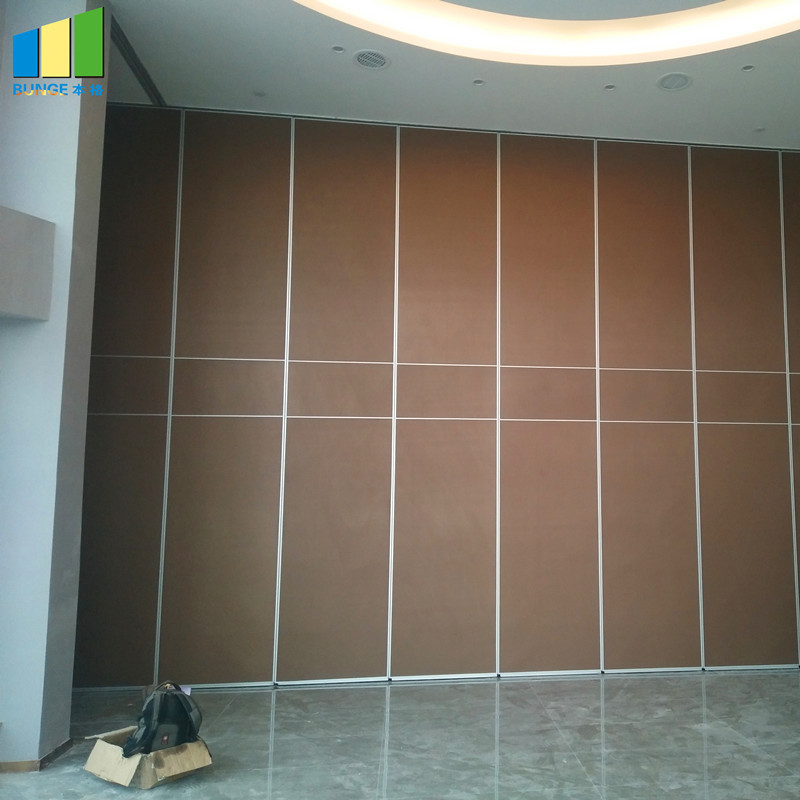

Banquet Hall Office Wooden Movable Acoustic Operable Mobile Partition Walls

Model NO.:65/85/100/Ultrahigh

Open Style:movable

Position:Commercial Surface Finishing:fabric or leather

Type:room divider Type:

Door Material:MDF Thickness:65,85,100,

Width:800-1200mm Height:2000-17000mm

Acoustic Coefficient:30-50db

Weight:18-60kg/M2

Faceplate:Veneer,Plaster, MDF, Melamin, Fabric, Leather

Feature:space separate,acoustic treatment

Origin: Guangdong, China

Specifications:

1. Soundproof Moveable wall Panel

2. Good sound absorption

3. Easy collection





Technical Details

Series	BG65	BG85	BG100
Panel suspension	Top hung only	Top hung only	Top hung only
Panel thickness	65mm	85mm	100mm
Max height	4000mm	6000mm	8000mm
Panel width	500-1200 mm	500-1200 mm	500-1200 mm
Face material	9mm	9mm	12 mm
Passdoors	Single door or Double door
Sound insulation	28-38dB Rw	28-42dB Rw	32-50dB Rw
Finish Material	Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized)





movable wall partitions canada are a series of individually operated panels along a track system designed for maximum space planning flexibility. They can be arranged quickly, eaily and efficiently.



1. Top hung system without the need for a floor track

2. Retractable top and bottom seals ensure effortless movement of panels

3. Combines elegance with robust construction

4. Concealed or exposed panel edge profiles

5. Numerous panel stacking options for complete flexibility

6. Sealed for life roller assemblies provide smooth and silent movement

7. They system offers various levels of sound reduction

8. Extensive range of surface finishes available



1. Studios, recording rooms, listening rooms, rehearsal rooms and more professionally interspace timbre projects.

2. Theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.

3. Meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects

4. Air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.





1. Preparing

1) constructing location: Keep dry, the temperature should be higher than 10º C, the widest humidity range should confined to 40%-60% after construction 24 hours before construction, the location should reach the standards as above.



2) Acoustic panels: For the acoustic panels accommodated to the circumstance of construcing, please place the panels in the constructing location for 48 hours, check up the type, specification and amount of the panels before construction.



3) Keels: Fix the keels on the wall flatly according to the plan, the keels should be flat, slick, no rust, no metamorphosis, the wall must be contruct according to the standards, the keels suitable install with acoustic panels, leave smaller than 500mm space between each wooden keel, install the keels vertically with acoustic panels.



2. Fixing

1) size of wall: All panels should be installed in accordance with the manufacturers recommendations.



2) Cutting: All necessary hardware and accessories for a complete job installation are to be finished by the contractor.



3) Install the acoustic panels: The installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.
