Name: Banquet Hall High Wooden Folding Conference Acoustic Room Dividers In Thailand
Brand: EBUNGE

Product Description

Banquet Hall High Wooden Folding Conference Acoustic Room Dividers in Thailand

Finished project

Thanks for the trust from the client. We finished the packing and shipped to agent’s warehouse on March 4th,2019.

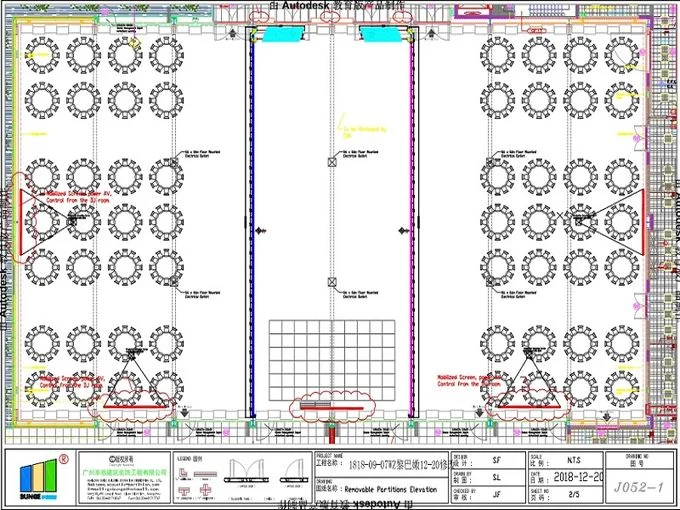

This is a project in Lebanon, using the steal materials,including the steel tracks,the steel rollers and the steel haging clips. 8 meters height partitions, 30 meters width, totally 2 sets of walls, around 480 square meters. We just delivered the accessories by air, and we have sent our engineer(Mr. Zeng) to Lebanon to supervise the installation.

Actually our steel system can support 900 KG materials,so that is enough to support the panels for this project.

Do you still worry about the installtion? Please feel free to contact us for more details, our professional team can help you about that.

ââ Banquet Hall High Wooden Folding Conference Acoustic Room Dividers In Thailand 0

Banquet Hall High Wooden Folding Conference Acoustic Room Dividers In Thailand 1

Banquet Hall High Wooden Folding Conference Acoustic Room Dividers In Thailand 2

Folding acoustic room dividers accessories

Tracks:Made of good quality anodized aluminium 6063-T5 materials,hanging the folding acoustic room dividers panels with wheels.

Wheels/Rollers:It is the carrier for the folding acoustic room dividers,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.

Connectors:Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “ï¼”types are available.

Rubber/vinyl seal:Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.

Rock Wool:Density of 60kg/m3,help us reduce the noise and heat.

Handle:Operate the retractable being up and down.

Retractable mechanism:Control the movement of the top and bottom seal to form a excellent sound insulation performance.

Magnetic Strip:Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the folding acoustic room dividers.

MDF board:9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.

Banquet Hall High Wooden Folding Conference Acoustic Room Dividers In Thailand 3

Technical Information

Series	Thickness (mm)	Applied height (m)	Width of Intermediate panel (m)	Acoustical reduction coefficient (db)	Hanging weight
#65	65	2.0~4.5	0.6~1.2	35	30kg/m2
#85	85	3.0~6.8	0.6~1.2	45	35kg/m2
#100	100	5.0~8.0	0.6~1.2	53	45kg/m2
#125	120	7.0~13.0	0.6~1.2	65	65kg/m2

Model	BG65 Series		BG80 Series	BG100 Series	BG High-Series
Suspensionsystem	Aluminum hanging				Steal Hanging
Basic Thickness	65 mm		80 mm	100 mm	100 mm
Total thickness	65/75/85/95mm		80/90/100/110mm	100/120/130mm	100/120/130mm
Max Height	Up to 3800 mm		Up to 6000 mm	Up to 8000 mm	Up to 15000 mm
Width	600-1230mm		600-1230mm	800-1230mm	800-1230mm
Floor/Ceiling Sealing Strength	Telescopic aluminum tube with rubber strip.
Side walls sealing strength	Double seal tape
Sound insulation level	26-30 db	28-34 db		32-40 db	42-52 db
Panel structure	Aluminum frame with wooden keel			Aluminum frame with steel keel
Surface material	Melamine laminate/fabric/PU leather/wallpaper/veneer/customized

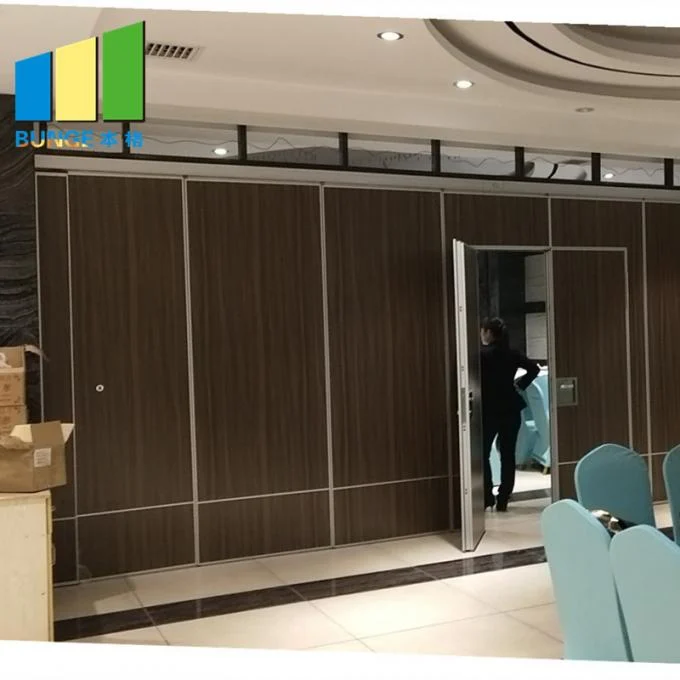

Banquet Hall High Wooden Folding Conference Acoustic Room Dividers In Thailand 4

Specifications

Product Name	Folding Acoustic Room Dividers
Application	Banquet Hall Dividers
Weight	25-80 KG/square Meter
Thickness	65 Mm(2 9/16 Inch)
Material	MDF, Sound Absorption Cotton, Aluminium
Service	OEM ODM
Highlight	sound proof room divider , banquet hall room dividers

Product Details

Place of Origin	Guangzhou, China
Brand Name	EBUNGE
Certification	ISO 9001
Model Number	65 mm folding acoustic room dividers
Packaging Details	Paper carton, outside with wooden box
