Product Description

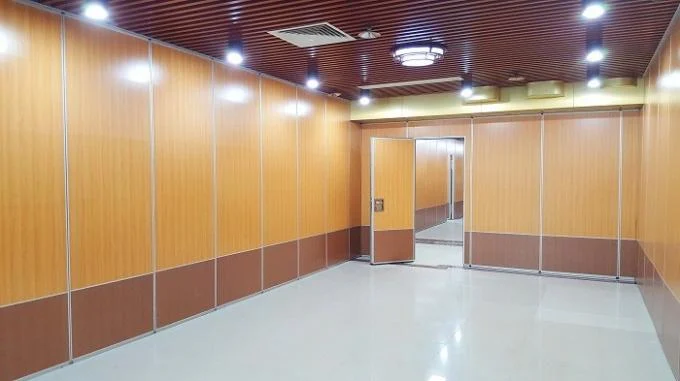

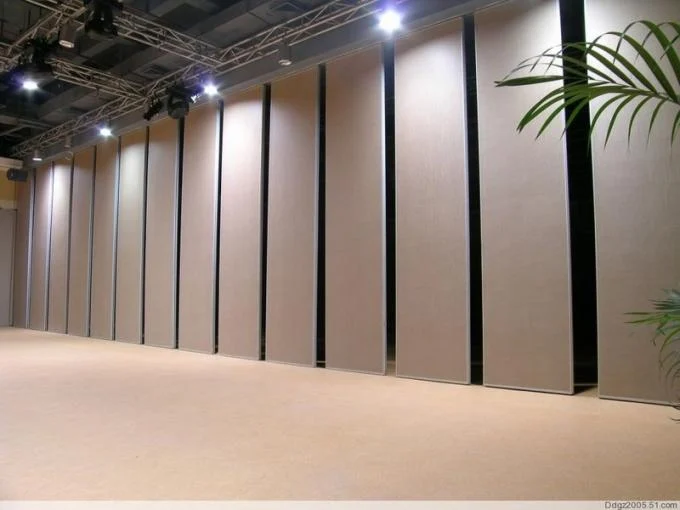

Banquet Hall Soundproof Operable Walls Classroom Folding Partition Walls
About us
The BUNGE company has a strong technical installation team and marketing team. The factory has introduced advanced foreign production technology, based on the advanced American partition technology, absorbs the essence of German and Danish partition technology, and continuously optimizes, improves and innovates to ensure products. It has excellent sound-absorbing and sound-absorbing effects, fire-retardant and flame-retardant properties, and at the same time absorbs professional technical talents. Through continuous innovation of technology, the products have better sound insulation effect and more flexible moving space function. There are 8 types of Ruizhuang movable partitions: 65 type, 85 type, 100 type, 125 ultra ultra high type and 65 type frameless glass, 85 type framed glass screen, and 32 type folding screen, among which the ultra high type movable partition With superior technical level, it adopts super-strong rails, imported hanging wheels, special-made barges and automatic steering system, with a height of up to 18m and a sound insulation coefficient of 55db. It is suitable for large-scale high-grade conference halls, banquet halls, exhibition halls. Exhibition halls and other professional venues.

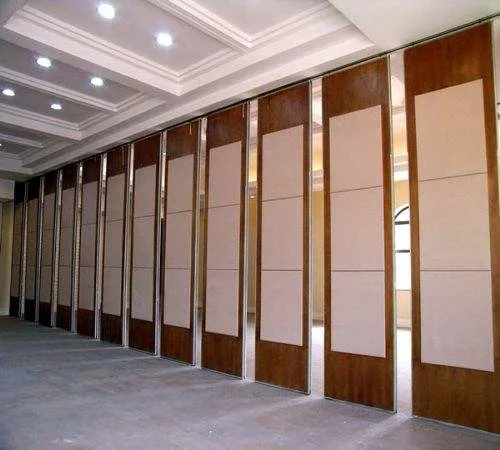

The details folding partition walls
Folding partition walls can be applied in hotels, muti-functions halls, meeting room, convention center, residential area, college and school, banquet hall, training rooms etc. We provide quality and reliable services at very cost effective prices.
The folding partition walls shall be top-supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used. The tracks are made from extruded anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for better alignment of adjacent track section, and shall be reinforced overhead by drop rod brackets.
| Description of the whole system | |
| Item | movable partition systems |
| Partition Height | 2-17 meters |
| Sound Transmission Class(STC) | 32-55db |
| Description of accessories | |
| Roller | Imported dupont POM material roller,bearing capacity 225-1300kg |
| Track System | Clear anodized 6063-T6 aluminum double track |
| Surface finish option | MDF,plywood, melamine,HPL,fabric,PU,wood veer, mirror steel ect. |
| Junction | “T”junction, “L” juntion, cross/ “X” juntion |
The advantages of wooden partition walls
Individual panels that can be stored away for maximum space usage.
Operable top and bottom seals for effortless operation.
Aluminum frame construction for enhanced acoustics.
The system offers various levels of sound reduction.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
Top hung and no floor track.
Extensive range of surface finishes can be availabled.
Specifications
| Open Style | Sliding |
|---|---|
| Product Name | Folding Partition Walls |
| Feature | Sound Proofing |
| Size | 85 Mm |
| Color | Accept Customized |
| Application | Office,hotel,conference Room |
| Panel Width | 500 Mm--1230 Mm |
| Door Material | Melamine Board |
| Surface | Melamine,leather,fabric,plywood |
| Position | Interior |
| Width | 85 Mm(3 1/4 Inch) |
| Highlight | soundproof folding partition , folding room partitions |
Product Details
| Place of Origin | Guangdong |
|---|---|
| Brand Name | BANGE |
| Certification | ISO9001 |
| Model Number | 85 mm folding partition walls |
| Packaging Details | Carton package, MDF batten on four section sides , foam board on both front face. |
