Product Description

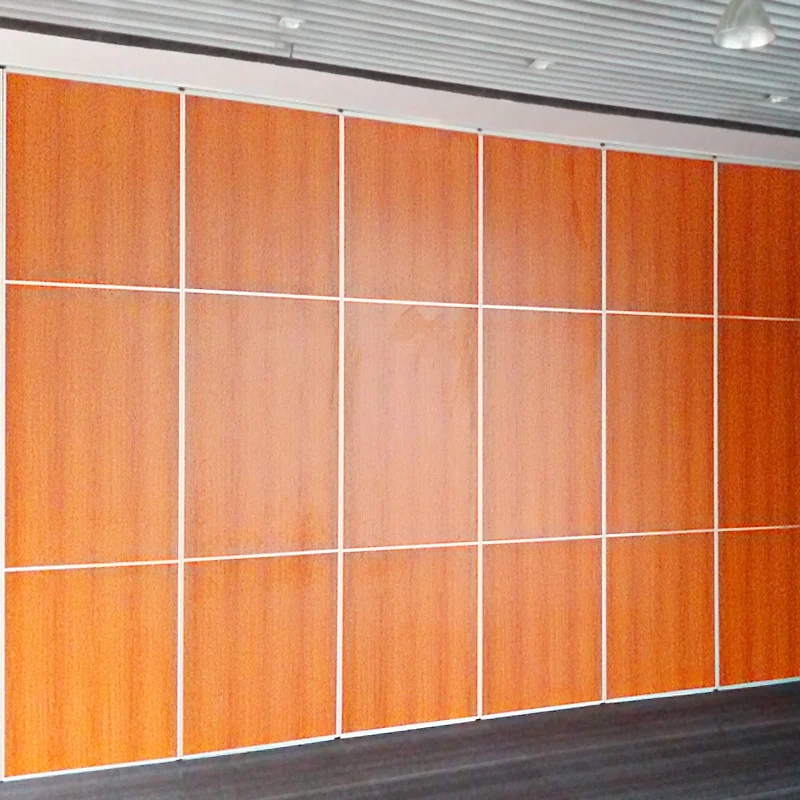

Banquet Hall Sound Proofing Movable Partition Walls
Features & Benefits
Movable, top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent movement
Various levels of sound reduction
Panel Surface Finish : The panel surface will be as per the clients requirement finished either in Sliwal factory – China or by others . The basic panels will be raw MDF.(the finish materials such as laminate,veneer,melamine or fabric etc.)
Rectractable mechanism: The top and bottom rail of each panel shall incorporate an extruded aluminium box section mechanical seal manually operated by a handle inserted in the panel stile, turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode. Single crank type mechanisms shall activate floor and head seals.
Seals : vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.
EBUNGE Operable Wall Systems-Technical Information
|
||||||||||||||||||||||||||||||||||||||||
Common Applications:
1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.
Specifications
| Thickness | 65 Mm(2 9/16 Inch) |
|---|---|
| Interior | Interior |
| Panel Width | 500 Mm--1220 Mm |
| Color | Color Selective (Customized) |
| Application | Function Room,hotel |
| Finishing | Melamine,fabric,leather |
| Material | MDF+Aluminum |
| Product Name | Movable Partition Walls |
| Service | OEM ODM |
| Style | Sliding |
| Highlight | sound proof room divider , banquet hall room dividers |
Product Details
| Place of Origin | Guangdong |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO9001 |
| Model Number | 65 mm movable partition walls |
| Packaging Details | Carton package, MDF batten on four section sides , foam board on both front face. |
