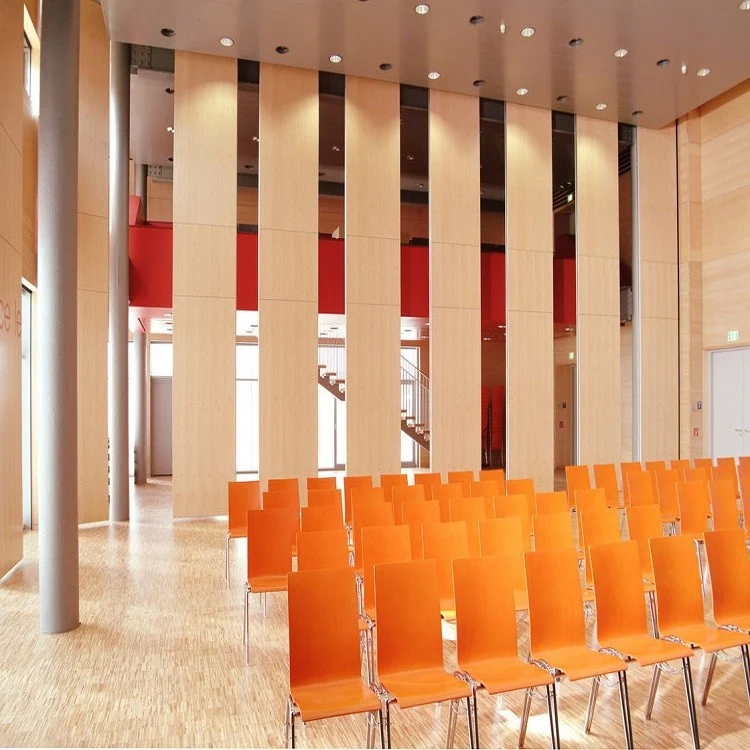

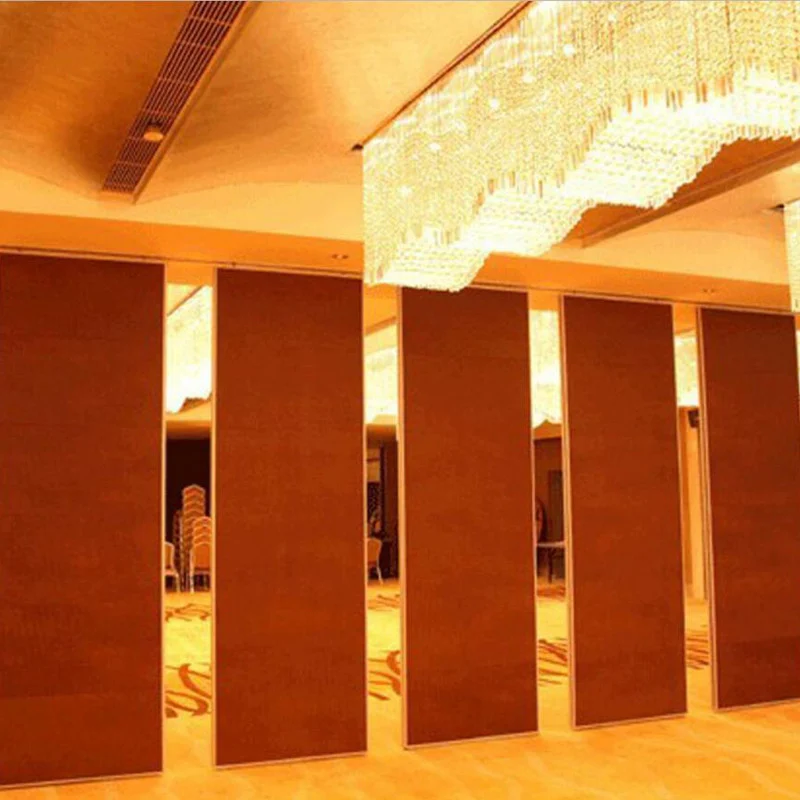

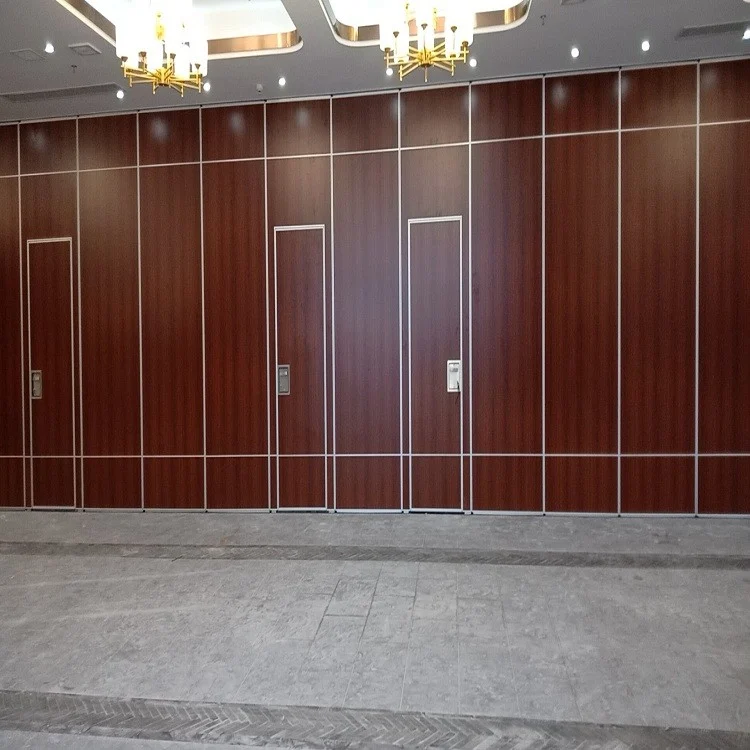

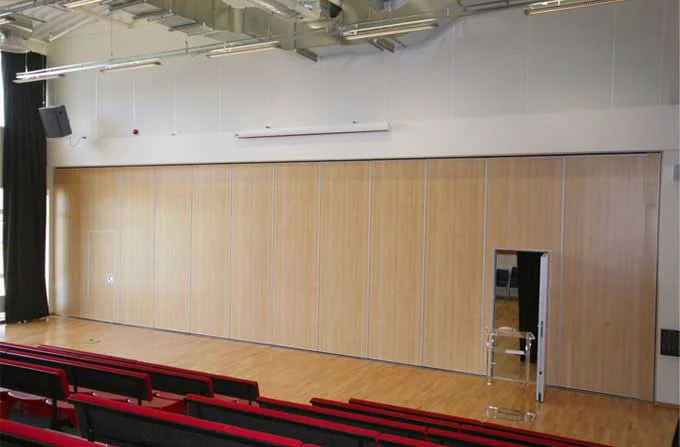

Banquet Hall Acoustic Movable Wooden Collapsible Partition Walls With Double Pass Door

Banquet Hall Acoustic Movable Wooden Collapsible Partition Walls With Double Pass Door

Movable partition wall description:

EBUNGE partitions wall is our top of the range operable walls. The system offers several layouts and stacking arrangements to create many useful areas within the working space.

EBUNGE partitions wall are solid acoustic sliding partitions available in three varying thicknesses and laboratory tested sound rating up to Rw 50dB. This system is top hung. Each panel is individually supported by a track system mounted on the ceiling. No floor track is required.

To create the seal, each panel has interlocking vertical profiles and retractable rubber seals. A handle inserted into the vertical edge of each panel operates the retractable seals. One half turn of the handle operates a mechanism inside the panel that moves the seal against the floor and against the track. In most cases the last panel has a telescopic leading edge with a rubber seal operated with a handle inserted into the face of the panel. This panel will close and seal the whole system. An option is also available for semi electric seal operation.

Face finishes available as standard are a wide choice of plain or wood grain melamine, leather or fabric.

Components of Sliding Partition Walls

Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the movable partition walls with wheels.

Wheels/Rollers: It is the carrier for the movable partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.

Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.

Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.

Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.

Handle: Operate the retractable being up and down.

Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.

Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the movable partition walls.

MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
