Product Description

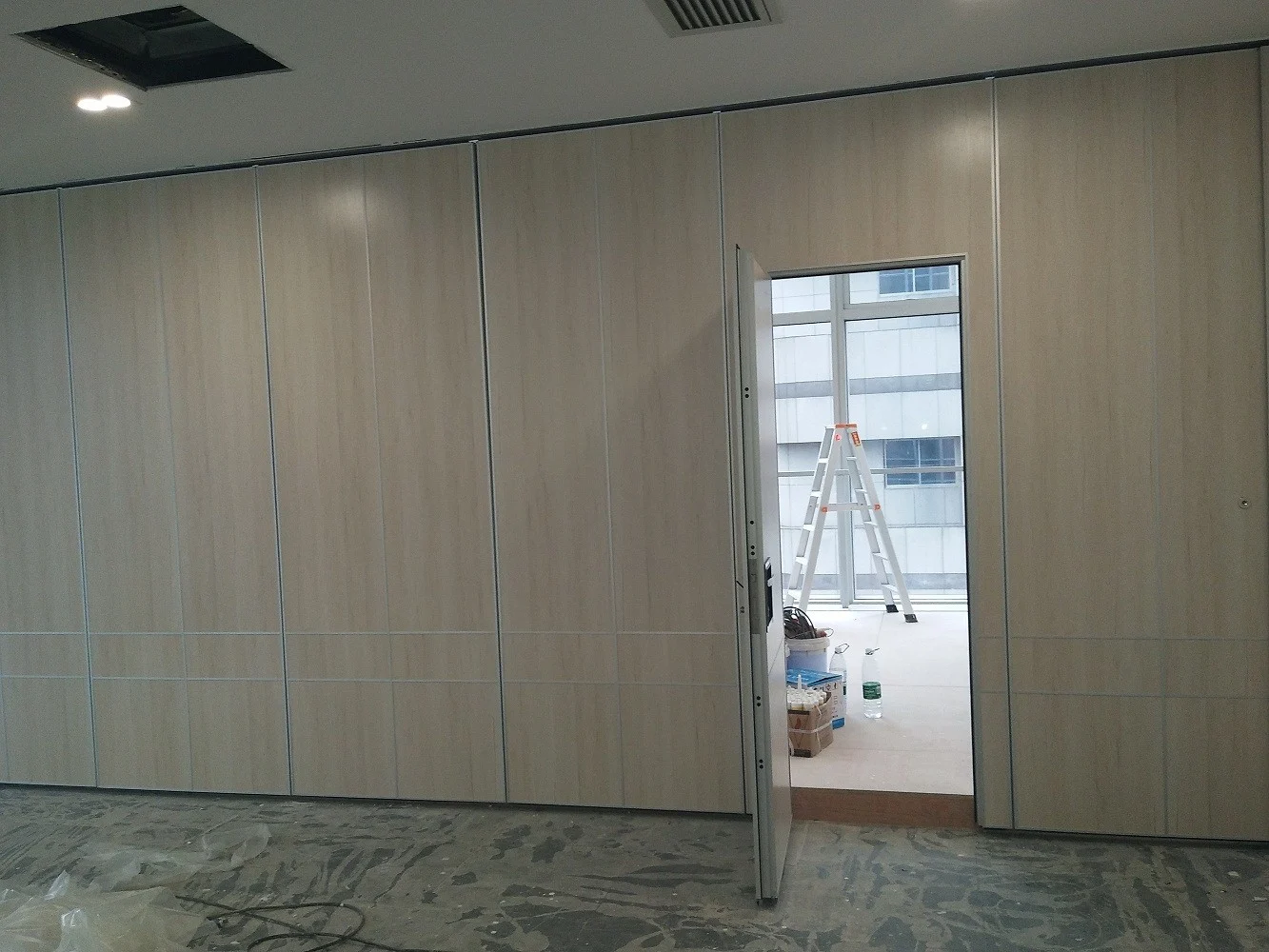

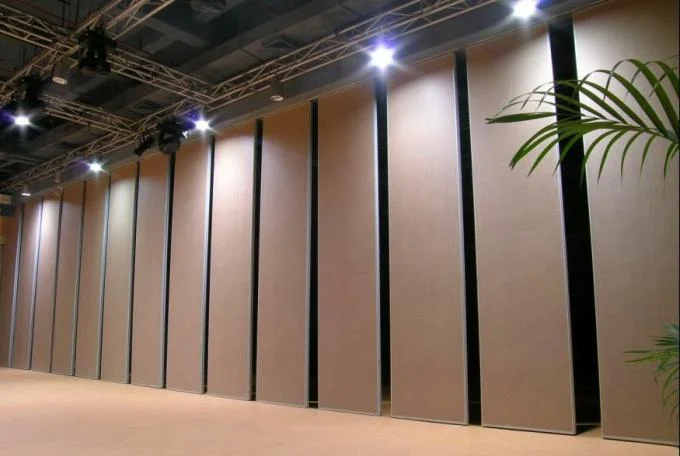

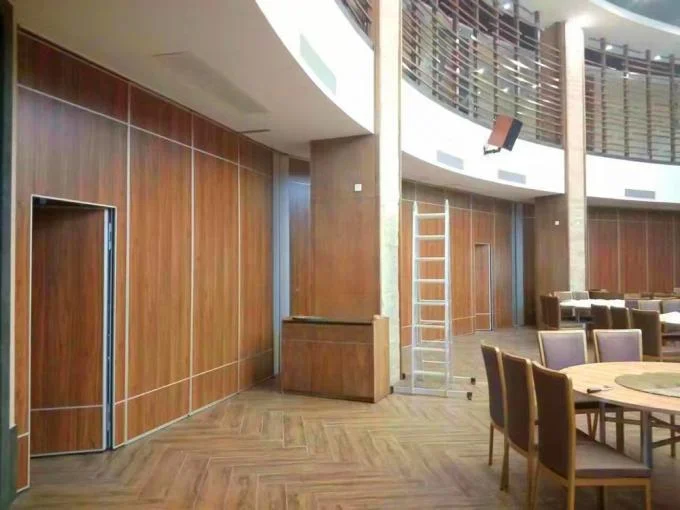

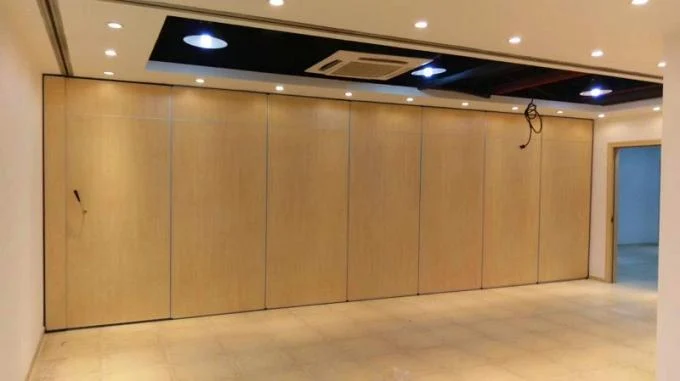

Ballroom Acoustic Moveable Walls Folding Sliding Room Partition Walls
Specifications of Sliding Partition Walls System
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9mm | 9mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 28-38dB Rw | 28-42dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Features of BUNGE Sliding Partition Walls System
1) Thickness panel:65mm,80mm,100mm, height from 2meter to 17meter.
2) Top supported without floor track or guide.
3) Clear anodized extruded aluminum tracks and frames,customized powder coated color are available.
4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster base board on both side.
5) Sound insulation coefficien :STC 32db to 53 db, ASTM standard of acoustic tested in HongKong.
6) Available in wide range of finishes.
7) Fast delivery and Rich experiences in oversea project installation guide & supervision.
Details of Sliding Partition Walls
Sliding partition wall is also called movable partition wall. It can separate the space into several small spaces or turn several small spaces into big space ccording to your different need. Morever, it’s flexible sliding combination bring you a special experience.
1. Eight characters and functions:
(1) hang track on the ceiling, not the floor;
(2) heat insulation and fireproof
(3) stable and safe
(4) energy-efficientcy
(5) elegant appearance
(6) collection convenient
(7) widely used in different places
2. Usage:
Type 65 is suitable to use at 2m-3.5m height space.
Type 85 is suitable to use at 2m-6m height space.
Type 100 is suitable to use at 3m-9m height space.
3. Each panel load-bearing weight: 225kgs/ 450kgs/ 650kgs
4. Sound insulation coefficient:
Type 65 highest sound insulation coefficient can be reach is 36db.
Type 85 the highest sound insulation coefficient can be reach is 50db.
Type 100 the highest sound insulation coefficient can be reach is 53db.
Specifications
| Open Style | Sliding |
|---|---|
| Product Name | Sliding Partition Walls |
| Feature | Sound Proofing |
| Size | 85 Mm(3 1/4 Inch) |
| Color | Accept Customized |
| Application | Office,hotel,conference Room |
| Highlight | acoustic sliding partition , sliding folding partition |
Product Details
| Place of Origin | Guangdong |
|---|---|
| Brand Name | BANGE |
| Certification | ISO9001 |
| Model Number | 85 mm sliding partition walls |
| Packaging Details | Carton package, MDF batten on four section sides , foam board on both front face. |
