Product Description
Soundproof Decorative Material Fabric Surface Ballroom Movable Wall Partition
Description:
Acoustics movable wall offers unique custom made Acoustic Movable Wall Partitions which facilitates in managing.
Your space to its maximum capacity. Our Acoustic Movable wall partition system constitutes of panels.
Suspended individually from the rail fixed to the top of the roof. The Acoustic Movable wall partition has retractable top and bottom seals which interlocks each panel to its position. If required, hinged pass doors shall be provided through the Acoustic Movable Wall Partition where access is required.
Feature:
Top hung with no floor track.
Scissor-jack operating mechanism.
Available with virtually any surface finish.
Ideal for conference centers, hotels, offices & schools.
Angled, glazed, corner or junction panels for maximum flexibility.
Single or double point suspension for versatile stacking options.

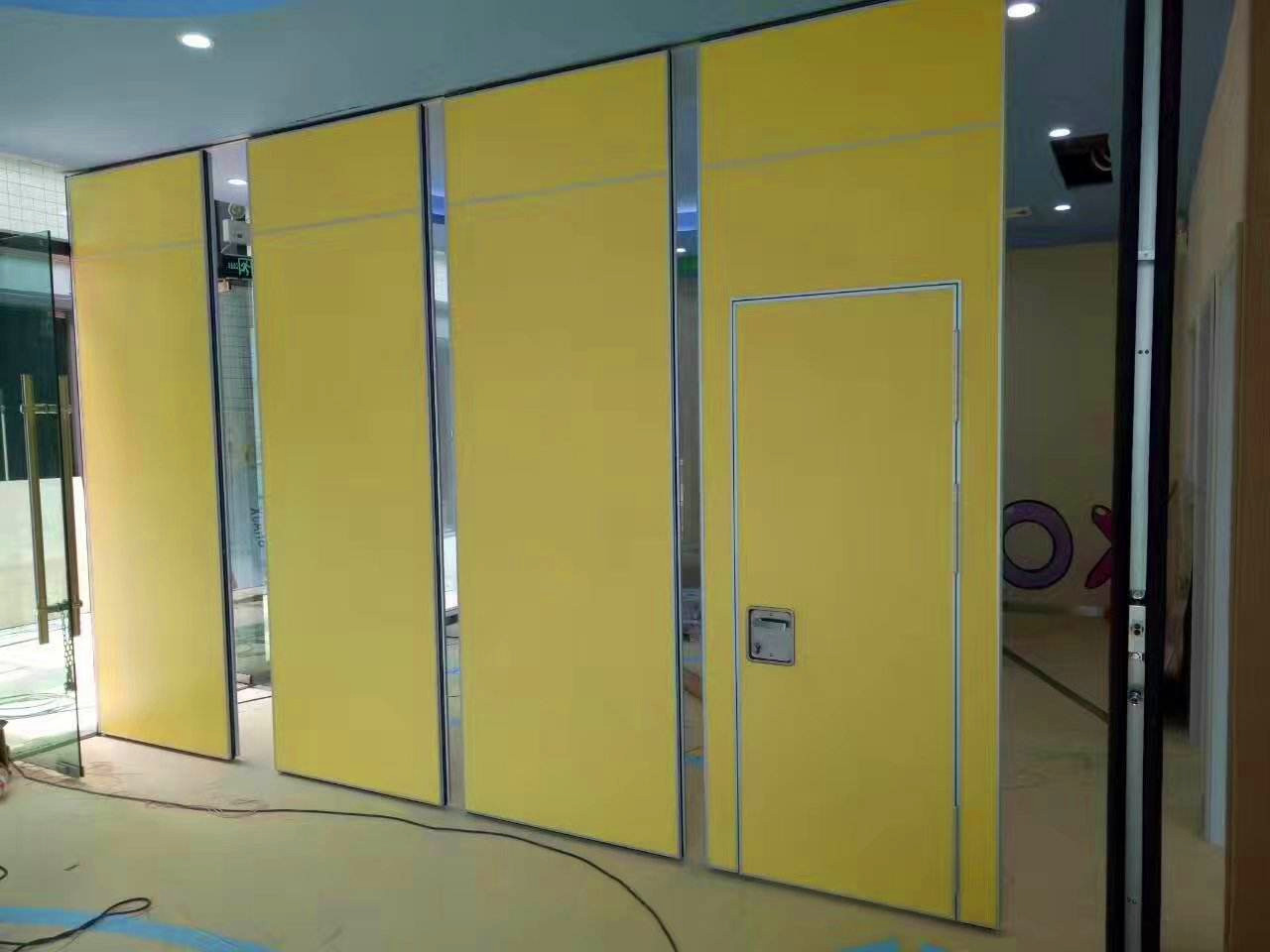

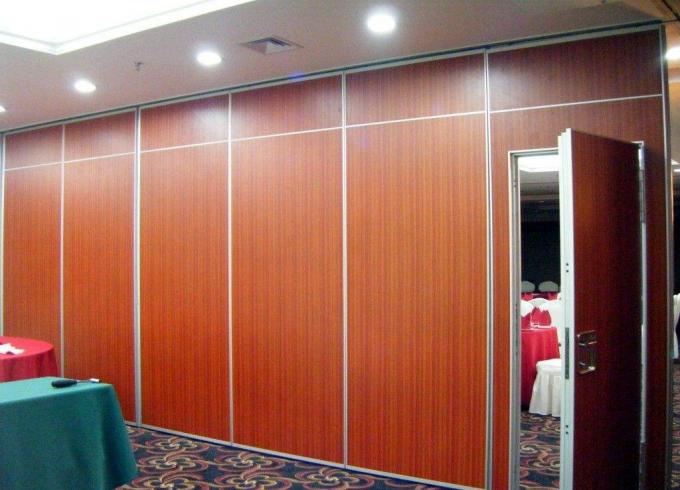

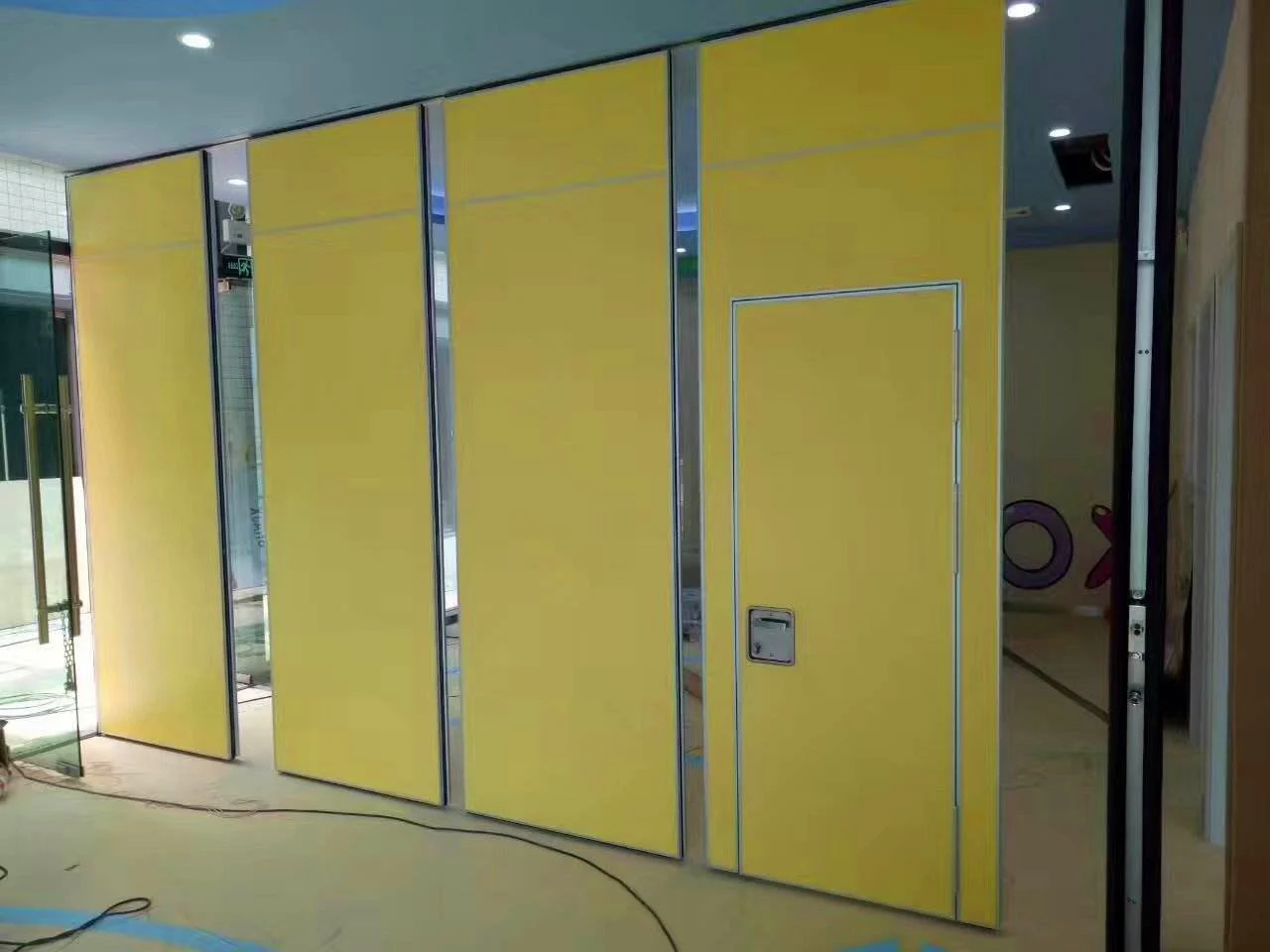

Panels with hinged pass door, single or double leaf inset pass door panels for access through.
Technical information:
| Panel Suspension | Top hanging system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum Or Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm – 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard. |
Advantage:
Stable and self-supporting frame construction.
Flexibility through wide variety of panel arrangements.
Ease of use & movement due to lightness in construction.
Smooth and silent while in operation.
Good acoustic performance.
Availability of unlimited choice of finishes.
Introduction:
The movable partition wall is our individual panel partition system offering an acoustic insulation rating of up to 53 dB.
Ideally suited for high specification applications due to the sheer flexibility, numerous stacking arrangements available and the impressive acoustic qualities this system offers.
The panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.
Our service:
Supply you excellent design proposal.
Supply you prompt and competitive price.
Supply you strict quality-compliance and punctual delivery.
Organize the shipment for you.
Reliable after service: timely service and efficient response.
Specifications
| Thickness | 85 Mm |
|---|---|
| Height | Less Than 6 M |
| Service | OEM Service |
| Color | Multi Color |
| Application | Ballroom,classroom,office And Etc |
| Surface | Laminate,fabric,leather |
| Product Name | Movable Wall Partition |
| Highlight | movable partitions systems , acoustic movable walls |
Product Details
| Place of Origin | China,Guangzhou |
|---|---|
| Brand Name | BUNGE |
| Certification | ISO9001 |
| Model Number | Series 85 mm movable partition wall |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. |
