Product Description

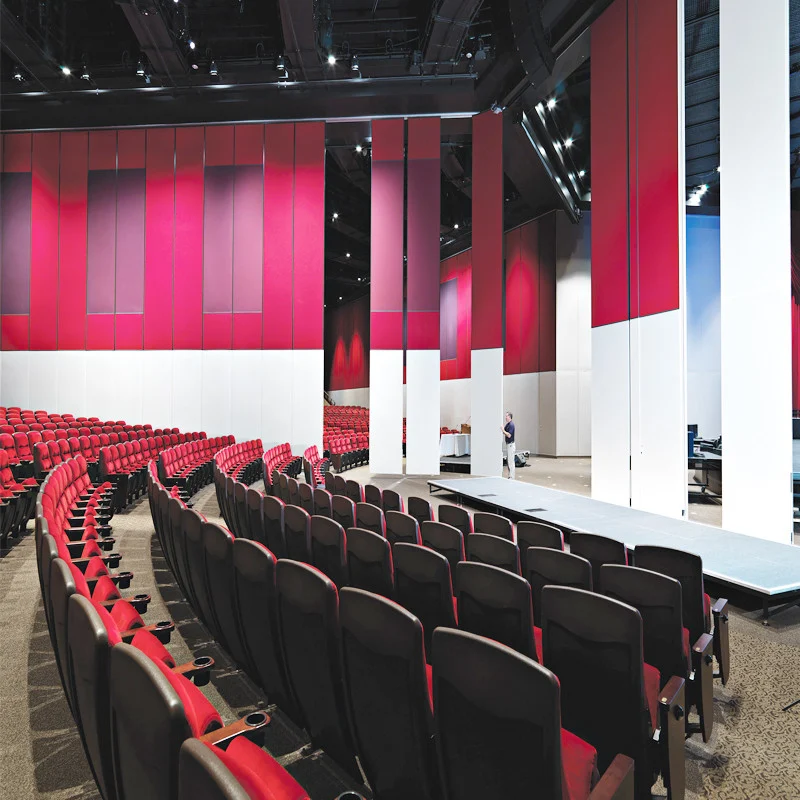

Auditorium Interior Wooden Acoustic Panel Movable Folding Partition Walls
Features:
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent movement
The system offers various levels of sound reduction
Extensive range of surface finishes available
Bunge Operable Wall Systems-Technical Information
| TYPE | BG65 | BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 – 1200mm 1′ 5/8″ — 4′ |
500 – 1200mm 1′ 5/8″ — 4′ |
500 – 1200mm 1′ 5/8″ — 4′ |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||

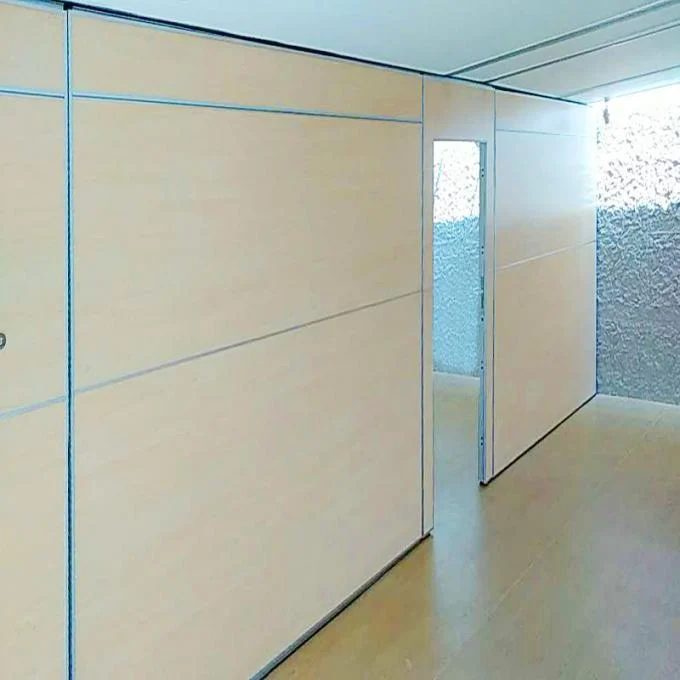

| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Partition door mechanism structure
To create a better sound insulation movable partition door, we put high density fiberglass inside the partition frame.
Movable walls are specified where functional space delineation is an integral element within the partition project.
Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize space utilization.
Common Applications:
Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centers, banks and restaurants.
Specifications
| Panel Width | 500 Mm--1220 Mm |
|---|---|
| Material | MDF+Aluminum |
| Color | Color Selective (Customized) |
| Thickness | 65 Mm(2 9/16 Inch) |
| Style | Opening |
| Product Name | Folding Partition Walls |
| Service | OEM ODM |
| Finishing | Melamine,fabric,leather |
| Position | Interior |
| Application | Hotel,Banquet Hall |
| Highlight | acoustic folding partition , folding room partitions |
Product Details
| Place of Origin | Guangdong |
|---|---|
| Brand Name | BUNGE |
| Certification | ISO9001 |
| Model Number | Series 65 mm folding partition walls |
| Packaging Details | Carton package, MDF batten on four section sides , foam board on both front face. |
