EBUNGE Partition Solution

Arc Sound Proof Sliding Movable Partition Wall Hotel Project Acoustic Partition

Explore Arc Sound Proof Sliding Movable Partition Wall Hotel Project Acoustic Partition for overseas B2B partition projects. Share the application, opening dimensions, quantity and preferred finish with EBUNGE for project review.

Request A Quote

Product Description



Arc Sound Proof Sliding Movable Partition Wall Hotel Project Acoustic Partition





1. Technical parameters:



  • Series
  • BG65
  • BG85
  • BG100
  • Panel suspension
  • Top hung only
  • Top hung only
  • Top hung only
  • Track system
  • Single or twin point
  • Single or twin point
  • Single or twin point
  • Panel thickness
  • 65mm
  • 80mm / 85mm
  • 100mm
  • Panel height
  • Up to 4000mm
  • Up to 6000mm
  • Up to 18000mm
  • Max height
  • 4000mm
  • 6000mm
  • 18000mm
  • Panel width
  • 600-1230mm
  • 600-1230mm
  • 600-1230mm
  • Frame construction
  • Aluminum frame
  • Aluminum frame
  • Aluminum frame
  • Face material
  • 9mm
  • 9mm / 12mm
  • 12mm
  • Fire safety
  • Optional Class I or O
  • Optional Class I or O
  • Optional Class I or O
  • Vertical profiles
  • Aluminum anodised with sealing profiles
  • Aluminum anodised with sealing profiles
  • Aluminum anodised with sealing profiles
  • Retractable seals
  • Aluminum black with
  • double rubber seals
  • Aluminum black with double rubber seals
  • Aluminum black with double rubber seals
  • Operation of seals
  • Manual, with supplied
  • operating handle
  • Manual, with supplied operating handle
  • Manual, with supplied operating handle
  • Locking
  • Optional lock to pass doors
  • Optional lock to pass doors
  • Optional lock to pass doors
  • Pass doors
  • Single open in panel or
  • double open in two panel
  • Single open in panel or double open in two panel
  • Single open in panel or double open in two panel
  • Sound insulation
  • 20-32dB Rw
  • 28-36dB Rw
  • 32-50dB Rw
  • Weight
  • Approx 22-35kg/sq M
  • Approx 25-40kg/sq M
  • Approx30-48kg/sq M
  • Finish Material
  • Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wallpaper, Vinyl, Painting, etc. (Customized)



Arc Sound Proof Sliding Movable Partition Wall Hotel Project Acoustic Partition 0



2. Package , Shipping, and Warranty



Our normal packing for movable partition wall is carton package, MDF batten on four section sides, foam board on both front faces.

Not full container load, we suggest plywood box packing; full container load, we will pack with plastic film first, then put into a carton box, each partition panel separated loading.



 sample availability subject to confirmation in 10 Days Inquiry now and you will have your sample in 10 day if you pay the express.  3-year Warranty  The acoustic room divider made of 6063-T5 alumina, anti-aging, no fading and abrasion in 10 years  OEM Service Your logo can be printed on the packaging carton

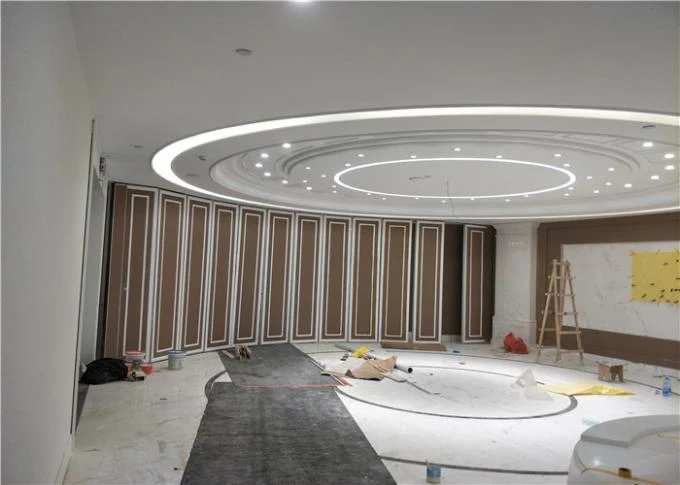

Arc Sound Proof Sliding Movable Partition Wall Hotel Project Acoustic Partition 1



3.About Us:



Guangdong EBUNGE Building Material Industrial Co., Ltd is a professional company in manufacturing movable partitions. It also artistically designs and carefully does research and development(R&D). The company has adopted the advanced partition technology of the USA, Germany, and Denmark. We have professional staff with more than 10 years of experience in design, production, and installation.



Our product(movable partition)are widely used in the hotel,banquet hall,meeting room,exhibition hall,conference room,International convention center,KTV,upscale restaurants,office building,school,hospital and others.



Nowadays, the modern trend in the building needs more flexibility and convenience to use the space of their rooms. Most of the building designers like to prepare open-plan space, soundproof effect, and easy to operate. The solution of the designers need is the movable partition.



EBUNGE movable partition products as follow:
1.Ordinary Series:65MM,85MM;
2.High Sound-Proof Series:85MM,100MM;
3.Super High Series: Steel Track System

Arc Sound Proof Sliding Movable Partition Wall Hotel Project Acoustic Partition 2

Specifications

General UseSoundproof Partition Walls Are Used For Interior Decoration
MaterialMDF,Aluminium
ColorCustomized
Thickness65~125mm
StyleModern
Product NameAcoustic Partition Walls,soundproof Partition Walls
AdvantageFree Of Floor Track,Professional Design Team&factory Manufacture&fashionable Outlook
FunctionSoundproof
Frame MaterialAluminium
HighlightArc Movable Partition Wall , 125mm Acoustic Sliding Partition Wall

Product Details

Place of OriginGuangzhou, China
Brand NameEBUNGE
CertificationISO 9001
Model Number65 mm soundproof partition door
Packaging DetailsPaper carton, outside with wooden box.
