Product Description

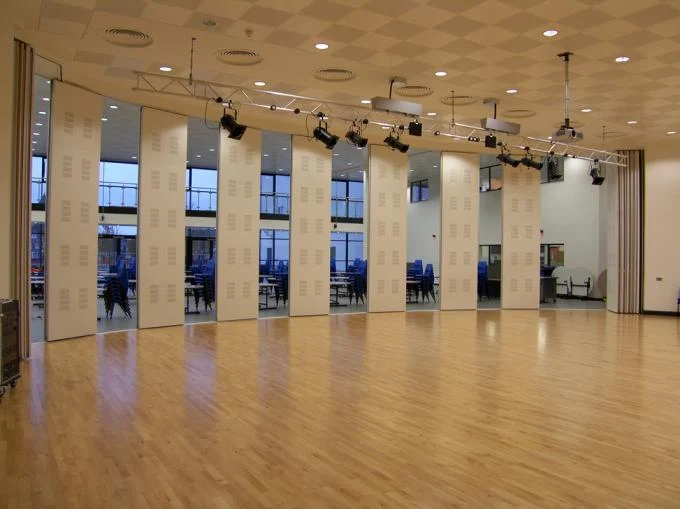

Anti-Fire fabric Soundproof Folding Movable Partition Wall For Multi-functional Conference Hall
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
Partitons wall series
This division receives the foreign production technology, has the sound insulation and the flame retardant function, may divide nimbly and make full use of the space, deduces the spatial nimbleness and the integrity.According to the different needs of customers, the current market products are: 65mm series, 85mm series, 100mm series and other products (special products), the general value of sound insulation effect is: 42db-56db.
Product performance
This product for the suspension type movement partition door, with the guide rail, the lifting wheel slippery form laid and receives the wall body, arranges the space ingeniously, the use operation is simple.
The main wall board is composed of steel frame, mechanical extension system, sound insulation material, aluminum alloy sealing strip, special plastic, basic plate and various decorative materials. Fabric is more secondary renovation.
Wallboard bearing parts are made of special heavy-duty aluminum alloy track and movable universal lifting wheel, combined with steel Angle frame and other accessories, the product is more firm, stable and perfect effect concept.
The wall board side mouth surface USES the aluminum alloy sealing, the seam is strict; The inner component is operated by a crank equipped with an extension.
mechanism (upper and lower telescopic system), which makes the wallboard and the ground more sealed.
The wall adopts the form of lifting, so that the ground is not laid track, to ensure the coordination and integrity of decorative style.
WITH US YOUR MONEY IS SAFE ,YOUR BUSINESS IS SAFE.
We are the office partitions walls,acoustic panel and office furniture supplier from China, we have our own factory and showroom in Guangzhou .Welcome to visit us.
Very welcome to visit our Web and contact us anytime .
Specifications
| Product Name | Folding Partition Wall |
|---|---|
| General Use | Soundproof Partition Walls Are Used For Interior Decoration |
| Type | 65 Type |
| Material | MDF,Aluminium,MFC |
| Color | Customized |
| Thickness | 65mm |
| Height | Max 4000 Mm |
| Width | 750-1200 Mm |
| Advantage | Free Of Floor Track,Fireproof |
| Service | OEM/ODM |
| Highlight | movable walls on wheels , acoustic movable walls |
Product Details
| Place of Origin | China(mainland) |
|---|---|
| Brand Name | EBUNGE |
| Model Number | 65 Series Partitions wall |
| Packaging Details | Partition board paper packaging, and finally packed in wooden carton |
