Product Description

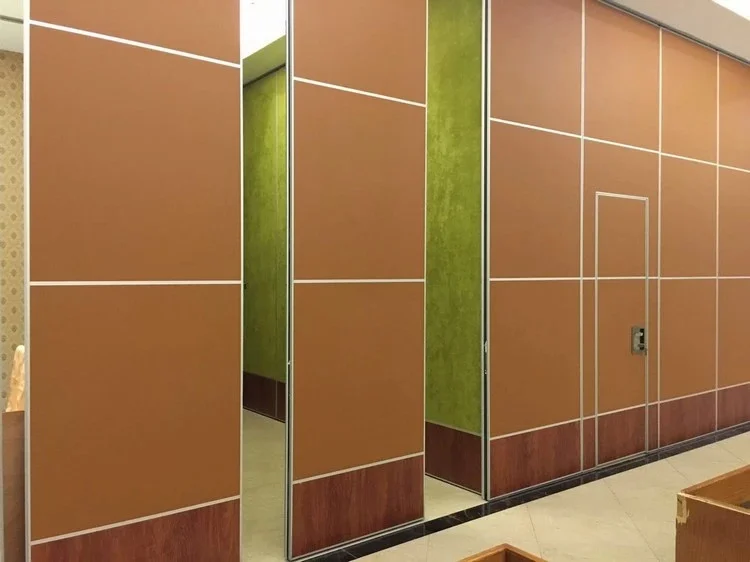

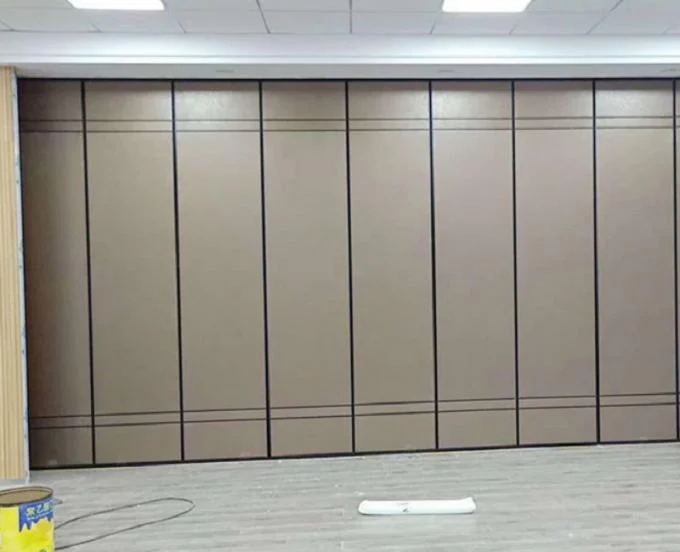

American Style Banquet Hall Sliding Operable Movable Acoustic Partition Walls
Acoustic partition walls advantages
1. We are the banquet hall acoustic partition walls supplier from China,we are the 100ï¼ real manufacturer,we have our own factory and showroom.Our factory located in Guangzhou,China.Very welcome to visit us.
2. About the banquet hall acoustic partition walls,they are acoustic,sliding and movable.When you use them,they can be divided a big space into many small rooms,and when you do not use them,they can be parked at one site.
3. The banquet hall acoustic partition walls are a hanging system,just have the ceiling rails,but has no rails on the floor.So the acoustic room dividers will not damage your floor or carpet.Please do not worry,they are easy to install.Before we deliver the partitions,we will mark them one by one,and we will send you the installation drawing.
4. All of the banquet hall acoustic partition walls can be customized,including the size,colors and the finishes.I think it is a good choice for your interior building.So if you have any requirements,please do not hesitate to contact us.
Acoustic partition walls details
Banquet hall acoustic partition wall is a range of acoustically high-performance creating the most flexible space in offices, meeting room, schools, colleges, churches, hotel meetings, restaurants, shops, hotels, inspection centers, multi-function rooms, stations, clubs, art centers, stadiums, sports centers, art museums, the court, convention centers, golf clubs, and functional suites.
With high levels of sound attenuation and custom parking, banquet hall acoustic partition walls provides a range of solutions for even the most complex requirements.
Technical data of acoustic partition walls:
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG65-32 | 22 | 60 | 32db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | 60# 65# 80# |
| BG65-38 | 27 | 60 | 38db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | |
| BG65-45 | 35 | 60 | 45db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | |
Technical data of Type 85 acoustic partition walls :
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG80-40 | 30 | 60 | 40db | 85 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | 60# 80# 100# |
| BG80-45 | 38 | 60 | 45db | 85 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
| BG80-48 | 47 | 60 | 48db | 85 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
Technical data of Type 100 acoustic partition walls :
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG100-43 | 38 | 60 | 43db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | 60# 80# 100# |
| BG100-48 | 46 | 60 | 48db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | |
| BG100-53 | 55 | 60 | 53db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | |
Specifications
| Product Name | Acoustic Partition Walls |
|---|---|
| Max Height | 4 Meters(65 Mm) |
| Panel Thickness | 85 Mm(3 1/4 Inch) |
| Surface | Melamine |
| Feature | Sound Proof |
| Style | Sliding Partition Walls |
| Highlight | acoustic operable wall , movable acoustic partition walls |
Product Details
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO9001 |
| Model Number | 85 mm acoustic partition walls |
| Packaging Details | Paper carton, outside with wooden boxes |
