EBUNGE Partition Solution

America Operable Sliding Movable Partitions Acoustic Partition Walls For Banquet Hall

Explore America Operable Sliding Movable Partitions Acoustic Partition Walls For Banquet Hall for overseas B2B partition projects. Share the application, opening dimensions, quantity and preferred finish with EBUNGE for project review.

Request A Quote

Product Description

America Operable Sliding Movable Partitions Acoustic Partition Walls for Banquet Hall

Acoustic partition walls details



Acoustic partition walls, the flexible space configuration, with little effort rooms can be partitioned, made smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.



Options include single or double inset pass doors, glazing panels, virtually unlimited track arrangements and surface finishes, with melamine probably being the most popular.



The best door for maximum acoustic performance, with variable options on sound reduction from 32 dB (Rw) to 53 dB(Rw).

Also available with 30 and 60 minute fire resistance.

The acoustic partition wall is of manual operstaed system.

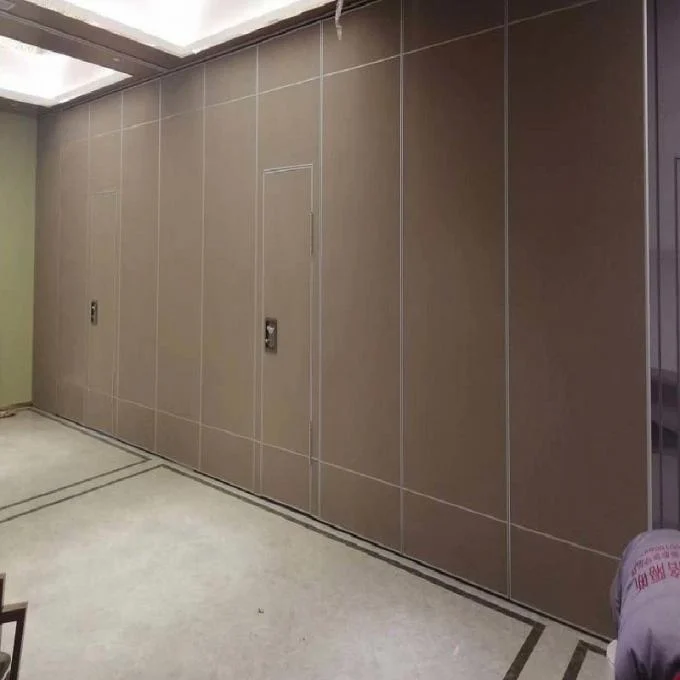

America Operable Sliding Movable Partitions Acoustic Partition Walls For Banquet Hall 0


Technical information



Model BG65 BG85 BG100
Suspension System Hanging System, with ceiling rails
Basic Thickness 65mm 85mm 100mm
Max Height Max 3800mm Max 6000mm Max 8000mm
Width 800 -1230mm
Floor/ceiling Sealing
strength
Telescopic aluminum tube with rubber strip
Side Walls Sealing
Strength
Double seal tape
Base Board Thickness 9 mm 9 mm 12 mm
Vertical Profiles Aluminum anodised with sealing profiles
Retractable Seals Aluminum black with double rubber seals
Operation Manual System, with supplied operating handle
Pass Doors Single or Double Pass Through Door Available
Weight Approx 22-35 kg/m² Approx 25-40 kg/m² Approx30-48 kg/m²
Finish Options Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

America Operable Sliding Movable Partitions Acoustic Partition Walls For Banquet Hall 1

Acoustic partition walls features


1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;

2. Stable and safe: The acoustic partition wall is stable and reliable after being cut off, and it is not easy to swing;

3. Soundproof and environmental protection: Sound insulation effect is good, the maximum sound insulation coefficient can reach 53 dB;

4. Insulation and energy conservation: Excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;

5.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance;

6. Convenient collection: When closing, the acoustic partition walls can be hidden in a dedicated storage cabinet, which does not affect the overall appearance.

America Operable Sliding Movable Partitions Acoustic Partition Walls For Banquet Hall 2

Specifications

Product NameAcoustic Partition Walls
ApplicationBanquet Hall Partitions
MaterialMDF + Aluminum
Based BoardMDF Or Plywood
ColorOptional
Highlightacoustic operable wall , movable acoustic partition walls

Product Details

Place of OriginGuangzhou, China
Brand NameEBUNGE
CertificationISO 9001
Model Number85 mm acoustic partition walls
Packaging DetailsPaper carton, outside with wooden box.
