Product Description
China Hotel Aluminum Sliding Movable Wooden Partition Door Sliding Wall
Product Details:
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) |
Bottom Seal(mm)/ Pressure(kg) |
LCP stretch (mm) | ||||
| BG65-32 | 22 | 60 | 32db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 |
| BG65-38 | 27 | 60 | 38db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 |
| BG65-45 | 35 | 60 | 45db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 |

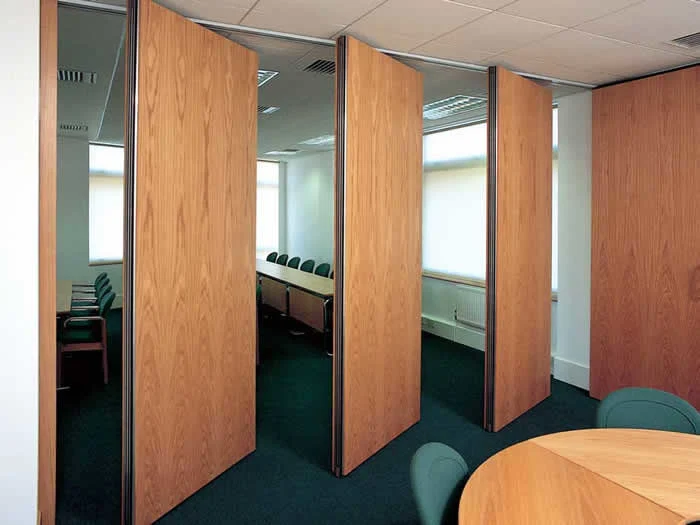

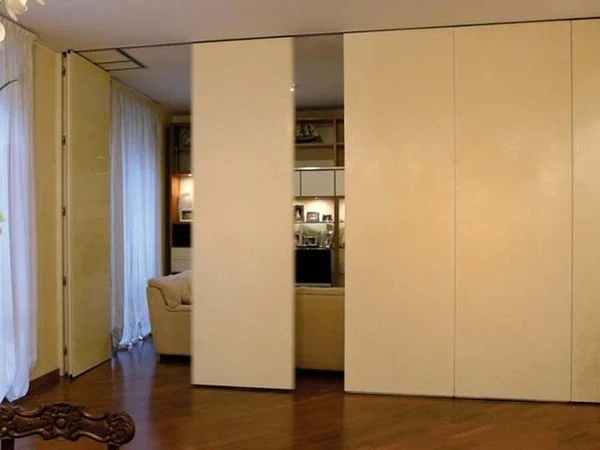

The movable wooden partition wall system is tongue-and-groove unitized panel system. Panels are precision laminated, pre-finished with vinyl, fabric or other specified finish. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 35 to 58dB.
1. You can divide a big space into smaller spaces as you wish with this partition.
2. Sound insulation coefficiency: 30~55dB.
3. height: 3m-7.5m
4. thickness: 65mm/80mm/100mm
5. base Material: sound absorbent cotton, sound insulation cotton, sound insulation rubber, etc.
6. frame: It’s frame is made of strong and light weight aluminum.
7. surface veneer: MDF panel, fabric panel, acoustic panel, etc.
Specifications:
â 65mm thickness panel ,Max height up to 4500mm.
â Top supported without floor track or guide.
â Clear anodized extruded aluminum tracks and frames,customized powder coated color are available.
â Sound insulation coefficien :STC 32db to 45db, ASTM standard of acoustic tested in HongKong.
â Available in wide range of finishes.
â Fast delivery and Rich experiences in oversea project installation guide & supervision.
Competitive Advantage:
“One-stop building materials supply” Service.
Our experienced designer and engineers are familiar with your building code, and can always find the best solution for you.
All of our products are customized.
There are many choices to meet your various requirements.
No MOQ restriction.
Much experience to work for all kinds of projects.
Save your valuable time and purchasing cost.
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel | Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) | ||
Common Applications:
BUNGE soundproof movable partition wall can be used to Convention Centers, Gymnasiums, Religious Facilities, Hotels, Auditoriums, Corporate Training Facilities, Civic or Exposition Halls, Schools, Banquet Facilities, etc.
With movable partition wall systems, there are no more barriers to maximizing the potential of your available building spaces.
Specifications
| Color | Accept Customized |
|---|---|
| Application | Hotel,banquet Hall |
| Panel Width | 500 Mm--1230 Mm |
| Door Material | Melamine Board |
| Surface | Leather |
| Position | Interior |
| Size | 85 Mm(3 1/4 Inch) |
| Open Style | Sliding |
| Feature | Sound Insulation |
| Product Name | Wooden Partition Walls |
| Highlight | acoustic operable wall , movable acoustic partition walls |
Product Details
| Place of Origin | Guangdong |
|---|---|
| Brand Name | BANGE |
| Certification | ISO9001 |
| Model Number | 85 mm wooden partition walls |
| Packaging Details | Carton package, MDF batten on four section sides , foam board on both front face. |
